Pilotix Mark4-10 Partizan Edition 10" FPV Drone Frame - Long Range Carbon Fiber

Introduction

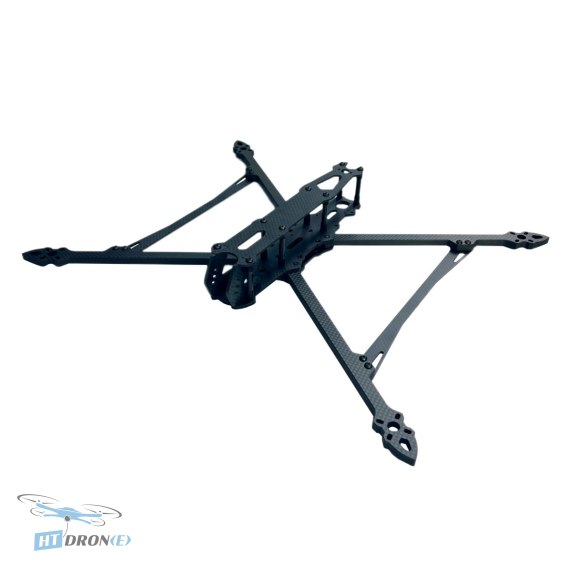

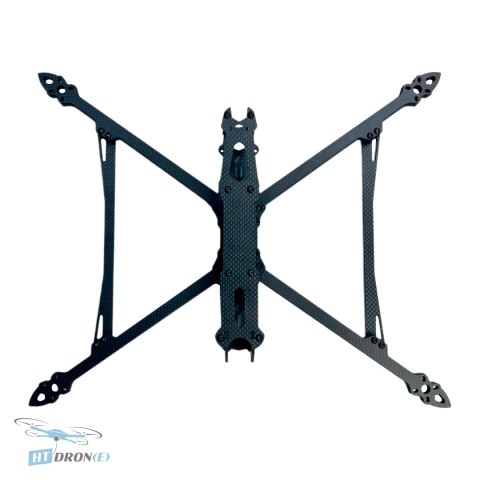

The Pilotix Mark4-10 Partizan Edition is a premium 10-inch carbon fiber frame designed for building high-performance, long-range FPV drones. It expertly balances robust construction with a lightweight profile, ensuring optimal flight characteristics for extended aerial missions. This frame is the ideal foundation for serious FPV enthusiasts looking to push the boundaries of range and flight endurance.

Key Advantages

• Exceptional durability due to high-quality carbon fiber construction.
• Lightweight design for improved flight performance and extended flight times.
• Specifically designed for 10-inch propellers, optimizing for long-range flights.
• Robust arm thickness (7mm) for enhanced resilience against impacts.
• Precise mounting options for essential FPV components.
• Partizan Edition aesthetic for a unique look.
• Engineered for stability and control during long-distance flights.
• Reliable performance for demanding FPV applications.

Technical Specifications

• Model: Mark4-10 Partizan Edition
• Wheelbase: 420 mm
• Arm Thickness: 7 mm
• Top Plate Width: 41 mm
• Top Plate Length: 197 mm
• Top Plate Thickness: 2 mm
• Bottom Plate Width: 51 mm
• Bottom Plate Length: 202 mm
• Bottom Plate Thickness: 3 mm
• Camera Mount: 19 mm
• Propeller Size: 10 inches
• Width: 328 mm
• Length: 271 mm
• Weight: 232 g

Applications

This frame is perfectly suited for building long-range FPV drones, endurance UAV platforms, aerial photography drones, and custom long-distance exploration vehicles. Its robust design also makes it suitable for demanding FPV applications where reliability is paramount.

Compatibility

The frame is designed to accommodate standard FPV components for 10-inch builds, including flight controllers, ESCs, motors, and FPV cameras with 19mm mounting. Please refer to the documentation for detailed mounting information.

FAQ

What is the Pilotix Mark4-10 Partizan Edition frame best suited for?

The Pilotix Mark4-10 Partizan Edition frame is specifically engineered for building high-performance, long-range FPV drones. Its robust carbon fiber construction and 10-inch propeller compatibility make it ideal for extended flight missions and demanding aerial applications.

What are the main technical specifications of this 10-inch FPV frame?

This frame features a 420mm wheelbase, 7mm thick arms, and 3mm bottom plate thickness for exceptional durability. It supports 10-inch propellers and has a camera mount for 19mm cameras. The total weight is 232g.

Where can I buy the Pilotix Mark4-10 Partizan Edition frame with fast delivery?

You can order the Pilotix Mark4-10 Partizan Edition frame directly from HTDRONE. We offer fast shipping within Poland and reliable worldwide delivery via DHL, ensuring you get your parts quickly.

Is this Pilotix frame compatible with standard FPV components?

Yes, the Pilotix Mark4-10 Partizan Edition frame is designed to be compatible with a wide range of standard FPV components for 10-inch builds, including flight controllers, ESCs, motors, and FPV cameras with 19mm mounting.

What makes the Partizan Edition unique?

The Partizan Edition designation typically refers to a specific aesthetic or package. This frame offers the same high-quality carbon fiber construction and performance features as other Mark4-10 models, with a distinct look.
