Pilotix Module with 15km Optic Fiber Roll SE - Long-Range UAV Communication

Introduction

The Pilotix Module with 15km Optic Fiber Roll SE is an advanced communication solution designed for professional FPV and UAV applications. It provides a robust and efficient fiber optic link, crucial for transmitting large amounts of video data with minimal loss, especially in scenarios where radio communication is unreliable or impossible. This system is perfect for demanding terrestrial, underwater, and aerial missions requiring uninterrupted, high-quality data transfer.

Key Advantages

• Low Latency: Essential for real-time control and precise maneuvering of drones.
• RF Interference Immunity: Guarantees 100% uninterrupted communication, unaffected by radio noise.
• High Bandwidth: Supports HD video transmission and rapid transfer of large data volumes.
• Integrated Solution: Eliminates the need for separate video transmitters or receivers.
• Secure Connection: Offers a highly secure data link, making signal interception difficult.
• Extended Range: The 15km fiber optic cable provides substantial operational distance.
• Robust Design: Suitable for professional continuous communication and video surveillance in harsh conditions.

Technical Specifications

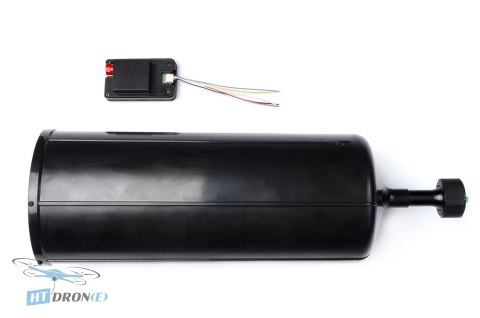

• Fiber Optic Cable:
  • Model: 15km Optic Fiber Roll SE
  • Length: 15.3 km
  • Fiber Diameter: 0.25 mm
  • Attenuation:
    • 1310nm ≤0.35dB/km
    • 1550nm ≤0.21dB/km

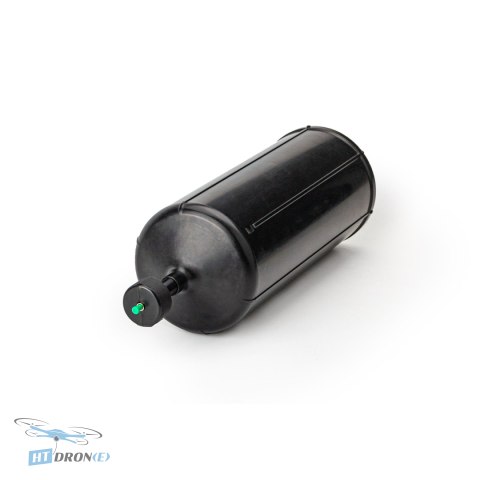

  • Dimensions: D 110mm x L 351mm
• Fiber Optic Digitizing Module:
  • Device Name: Sky End SE
  • Power Supply: 5.5V~26V
  • Body Size: 63x37x23mm
  • Device Weight: 31±2g
  • Fiber Optic Interface: FC Interface
  • Fiber Type: Single Mode - Single Fiber
  • Data Interface: SH1.0
  • Video Format: NTSC/PAL/SECAM
  • Data Direction: Bi-directional
  • Data Format: TTL/SBUS
  • Speed: 0~1Mbps
  • Single Mode Wavelength: 1310 (9/125μm) +1550
  • Transmission Distance: Single mode fiber up to 20 km

Applications

This fiber optic communication kit is ideal for professional drone operations, including long-range aerial surveying, advanced video surveillance, critical infrastructure inspection, industrial monitoring, and any application requiring a highly stable and secure data link over extended distances. It's particularly useful in areas with significant electromagnetic interference or where stealth is required.

Compatibility

Pilotix fiber optic communication modules are exclusively compatible with transceivers from the same series. Using devices from other series is not recommended and may void compatibility or performance guarantees. For reliable communication at specific distances, it is recommended to pair the module with transceivers offering extended range (e.g., up to 20km for 9km communication, up to 40km for 10-14km, and up to 60km for 15-20km+).

FAQ

What is the maximum transmission distance for the Pilotix fiber optic module?

The Pilotix fiber optic module, when using single-mode fiber, can transmit data up to 20 km. For optimal performance at different distances, it's recommended to use compatible transceivers with extended ranges, such as up to 60 km for distances over 15 km.

Is this Pilotix module kit compatible with other brands' transceivers?

No, the Pilotix fiber optic modules are designed to be exclusively compatible with transceivers from the same Pilotix series. Using devices from different series is not guaranteed to work and is not supported.

What are the main advantages of using fiber optic communication for drones?

Fiber optic communication offers significant advantages such as immunity to radio frequency (RF) interference, higher bandwidth for HD video, lower latency for real-time control, and enhanced security compared to traditional radio links. This makes it ideal for demanding applications.

Where can I buy the Pilotix Module with 15km Optic Fiber Roll SE?

You can buy the Pilotix Module with 15km Optic Fiber Roll SE directly from the HTDRONE store. We offer fast delivery within Poland and reliable shipping to Ukraine via Nova Poshta, as well as worldwide shipping via DHL.

What type of applications is this Pilotix fiber optic kit best suited for?

This kit is ideal for professional applications requiring continuous, high-quality data transmission, such as advanced video surveillance, long-range aerial surveying, industrial inspection, and missions in environments with heavy RF interference where radio communication is not feasible.

What are the power requirements for the Sky End SE module?

The Sky End SE module operates within a wide power supply range of 5.5V to 26V, offering flexibility for integration into various drone power systems.
