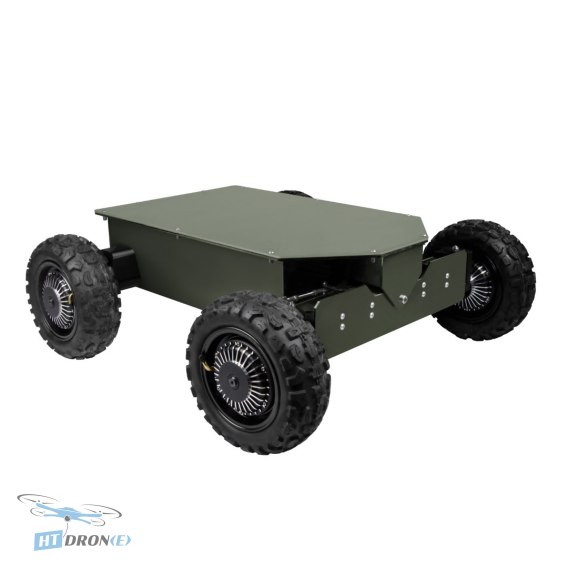

Pilotix Nexton S3 Olive 4x4 2000W Professional Ground Drone for Cargo Transport & Surveillance

Introduction

The Pilotix Nexton S3 Olive is a compact yet powerful 4x4 professional ground drone engineered for a wide array of field operations. It serves as a reliable platform for cargo transport, detailed terrain monitoring, extensive surveillance, and versatile multi-tasking in challenging environments. Its robust design and advanced features make it an indispensable tool for various industries requiring robust ground-based robotic solutions.

Key Advantages

• Powerful 2000W 4x4 Drive: Delivers superior traction and performance across difficult terrain with individually powered wheels.
• High Payload Capacity: Capable of carrying loads up to 100 kg, ideal for supply delivery and equipment transport.
• Extended Operational Range & Autonomy: Offers up to 50 km range and up to 24 hours of standby autonomous operation.
• Enhanced Stability: Features a rocker suspension system and 120mm ground clearance for navigating slopes, ditches, and obstacles.
• All-Weather Durability: Designed to operate in extreme conditions, including high temperatures, precipitation, and strong winds.
• Rapid Deployment: Can be deployed and disassembled in under 15 minutes, ensuring operational readiness.
• Versatile Integration: Compatible with standard control and video transmission protocols for seamless system integration.
• Quiet Operation: Maintains a low noise level of max 72.6 dBA, suitable for discreet operations.

Technical Specifications

• Type: Electric Ground Drone (Wheeled Chassis)
• Drive Configuration: 4x4
• Motor Power: 4 × 500 W (Total 2000 W)
• Dimensions (L×W×H): 860 × 810 × 385 mm
• Ground Clearance: ≥ 120 mm
• Payload Capacity: ≥ 100 kg
• Weight: 55 kg (equipped) / 155 kg (max)
• Obstacle Negotiation:
  • Max. Incline Angle: 20°
  • Max. Tilt Angle: 20°
  • Vertical Obstacle Height: 125 mm
  • Ditch Width: 0.25 m
  • Ford Depth: 0.1 m
• Maximum Speed:
  • 20 km/h (hard surface)
  • 10 km/h (terrain)
• Range:
  • Up to 50 km (road)
  • Up to 30 km (terrain)
• Runtime: ≥ 2.6 hours
• Standby Autonomous Operation Time: ≥ 24 hours
• Deployment/Stowage Time: ≤ 15 min
• Operating Conditions:
  • Temperature: -10°C to +40°C
  • Pressure: 720-800 mmHg
  • Precipitation: Rain, snow, fog
  • Wind Resistance: Up to 20 m/s
• Control Range:
  • Open terrain: 1.0 km
  • Hills/forest: 0.5 km
• Frequencies:
  • Control & Telemetry: 868/915 MHz
  • Video: 5.8 GHz
• Battery System:
  • 4 × Li-Ion 8S (29.6 V, 20 Ah)
  • 1 × Li-Ion 6S (22.2 V, 10 Ah)
• Max Charging Time: 3 hours
• Noise Level: ≤ 72.6 dBA
• Optional Accessories:
  • Daylight Camera
  • Night Vision Camera

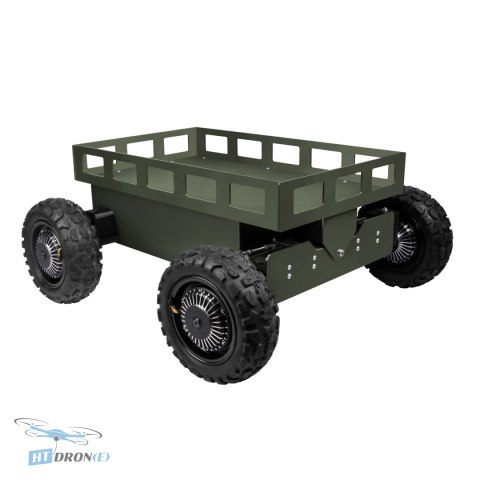

  • Cargo Mounting Equipment

Applications

The Pilotix Nexton S3 Olive is ideal for various professional applications including: heavy cargo delivery to remote locations, detailed site surveys, security and surveillance patrols, remote inspections in hazardous environments, search and rescue support, and general-purpose field operations requiring a robust ground robot.

Compatibility

This ground drone is compatible with standard control and video transmission protocols, ensuring easy integration with existing command and control systems. Optional accessories include daylight cameras, night vision cameras, and specialized cargo mounting equipment, further enhancing its versatility.

FAQ

What is the maximum payload capacity of the Pilotix Nexton S3 Olive drone?

The Pilotix Nexton S3 Olive ground drone has a maximum payload capacity of 100 kg, making it suitable for transporting significant loads.

What is the operational range and battery life of the Pilotix Nexton S3 Olive?

This drone offers an operational range of up to 50 km on roads and 30 km in terrain. It provides up to 2.6 hours of active runtime and can operate autonomously in standby mode for over 24 hours.

Can the Pilotix Nexton S3 Olive operate in adverse weather conditions?

Yes, the Pilotix Nexton S3 Olive is designed for extreme conditions, including rain, snow, fog, high temperatures, and winds up to 20 m/s. Its durable construction ensures reliable performance.

What are the primary applications for the Pilotix Nexton S3 Olive ground drone?

Its primary applications include cargo delivery to hard-to-reach areas, terrain monitoring, surveillance, remote inspections, and reconnaissance in challenging environments.

Where can I buy the Pilotix Nexton S3 Olive ground drone and what are the shipping options?

You can buy the Pilotix Nexton S3 Olive ground drone directly from HTDRONE. We offer fast shipping within Poland and reliable delivery to Ukraine via Nova Poshta. Worldwide shipping is available via DHL.
