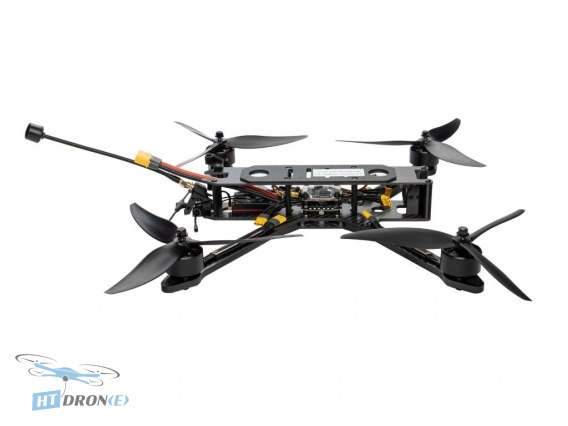

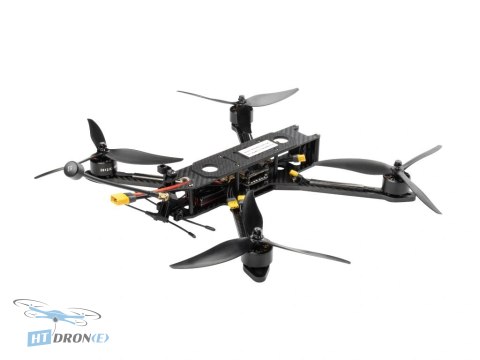

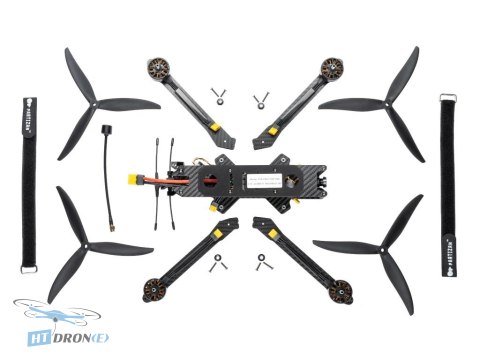

Pilotix PT8 ELRS 5.8G 2.5W Basic Long Range FPV Drone

Introduction

The Pilotix PT8 ELRS is the latest iteration of Pilotix's impressive 8-inch FPV drone series, engineered for pilots who demand superior range and stability. This drone integrates cutting-edge technology with high-quality components to deliver an unparalleled flight experience, making it a top choice for long-range exploration and FPV adventures. It's designed to provide reliable performance even in challenging conditions.

Key advantages

• Extended Range Capability: Equipped with ELRS 868/915MHz receiver for stable, long-distance control.
• Powerful Video Transmission: Features a 5.8G 2.5W VTX for a strong and clear video signal.
• Robust Construction: Built on the new Pilotix PT8 frame with 6mm thick arms for durability.
• High Performance: Capable of reaching speeds up to 150 km/h and carrying significant payloads.
• Extended Flight Times: Achieves up to 35 minutes of flight on a recommended 6S 8000mAh battery (unloaded).
• Optimized for Payload: Designed to carry loads of 2000-2500g efficiently.
• Advanced Flight Control: Utilizes F405 V2 FC with Betaflight 4.4.3 firmware for precise handling.
• Superior Video Feed: Comes with a H1 camera and a long 5.8G RHCP SMA antenna.

Technical specifications

• Model: PT8 ELRS 5.8G Basic
• Frame: Pilotix PT8 new version
• Dimensions: 317x270x50mm
• Weight: 700g
• Wheelbase: 358mm
• Arm thickness: 6mm
• Bottom/Top plate thickness: 2mm
• FC: F405 V2 ICM42688P
• Firmware: Betaflight 4.4.3
• ESC: 60A (burst 70A)
• VTX: 5.8G 2.5W
• Antenna: Long 5.8G RHCP SMA
• Motors: 2812-900KV/1300KV
• Propeller: Gemfan 8060-3
• Camera: H1
• Gimbal system: None
• Receiver: ELRS 868/915 Cyclone
• GPS: None
• Recommended battery: 6S 8000mAh Lipo
• Flight time with 8000mAh battery: 35 minutes (no load), 16 minutes (2.5 kg load), 22 minutes (2 kg load)
• MAX speed: 150 km/h
• Maximum flight altitude (MSL): 6000m
• Maximum climb rate: 15m/s
• Stable operating temperature range: -20℃ - 50℃
• Payload capacity: 2000-2500g

Applications

This FPV drone is ideal for long-range FPV flights, aerial photography with moderate payloads, recreational flying, and advanced hobbyist use. Its robust design and powerful components make it suitable for extended missions where reliable control and video transmission are crucial.

Compatibility

The drone is designed to work with 6S 8000mAh Lipo batteries. It features an ELRS 868/915MHz receiver for control link. The 5.8G VTX is compatible with standard FPV goggles.

FAQ

What is the maximum flight time of the Pilotix PT8 ELRS 5.8G Basic drone?

The Pilotix PT8 ELRS drone can achieve up to 35 minutes of flight time with a recommended 6S 8000mAh Lipo battery when not carrying any load. With a 2kg payload, expect around 22 minutes, and with a 2.5kg payload, approximately 16 minutes.

What makes the Pilotix PT8 ELRS suitable for long-range flights?

This drone is specifically designed for long-range FPV flying. It features a reliable ELRS 868/915MHz receiver, ensuring a stable and robust control link over extended distances, crucial for maintaining connection far from the pilot.

What is the video transmission power of the Pilotix PT8 ELRS?

The drone is equipped with a powerful 5.8G 2.5W Video Transmitter (VTX). This high-power output ensures a strong and clear video signal, allowing for comfortable and reliable FPV flights even at greater distances.

What is the payload capacity of the Pilotix PT8 ELRS drone?

The Pilotix PT8 ELRS drone is designed to carry significant payloads, with a maximum capacity ranging from 2000g to 2500g. This makes it suitable for carrying cameras or other equipment for aerial tasks.

Where can I buy the Pilotix PT8 ELRS 5.8G 2.5W Basic drone with fast delivery?

You can buy the Pilotix PT8 ELRS 5.8G 2.5W Basic drone at HTDRONE. We offer fast delivery within Poland and reliable international shipping to Ukraine via Nova Poshta, and worldwide via DHL.
