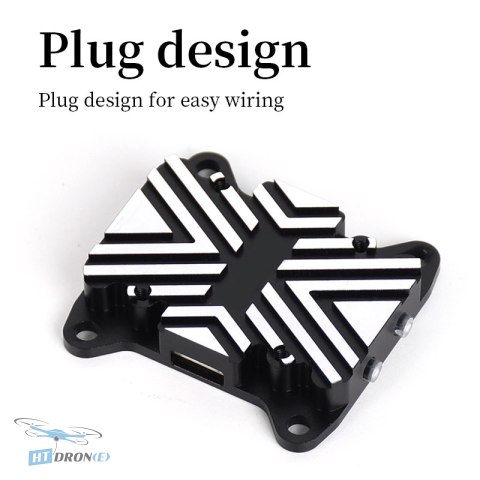

Pilotix R1600 5.8G 1.6W FPV Video Transmitter for Drones

Introduction

The VTX Pilotix R1600 (5.8G 1.6W) is a cutting-edge, high-power analog video transmitter designed specifically for the demanding FPV drone community. Engineered for superior performance, it provides a strong and stable video transmission, crucial for clear FPV feeds during intense flights. Its compact and lightweight design makes it an ideal upgrade for a wide variety of FPV drones, ensuring reliable performance whether you're a seasoned professional or just starting your FPV journey. Buy this VTX to enhance your aerial video capabilities.

Key advantages

• High Output Power: Adjustable from 25mW up to a massive 1.6W for extended range and signal clarity.
• Power-On Self-Test: Quickly verify video transmission functionality before flight.
• Frequency Lock: Prevents interference upon startup, ensuring a clean signal from the moment you power up.
• Versatile Mounting: Compatible with both 30.5x30.5mm and 20x20mm mounting patterns for broad drone compatibility.
• Wide Input Voltage: Supports DC 7-27V (2-6S LiPo batteries), offering flexibility with power sources.
• Stable 9V Output: Provides a stable 9V@780mA output for powering connected components.
• IRCTramp Control: Utilizes the reliable IRCTramp protocol for control.
• Lightweight Design: Weighing only 14.5g, it adds minimal bulk to your drone setup.

Technical specifications

• Brand: Pilotix
• Model: Pilotix R1600 (5.8G 1.6W)
• Frequency Band: 5645MHz-5945MHz
• Number of Channels: 40CH
• Output Power: 25-400-800-1000-1600mW
• Input Voltage: DC7-27V (2-6S battery)
• Output Voltage: 9V@780mA
• Control Protocol: IRCTramp
• Antenna Interface: MMCX
• Mounting Hole: 30.5x30.5mm - 20x20mm
• Dimensions: 38x36.5x7.2mm
• Weight: 14.5g

Applications

The Pilotix R1600 VTX is ideal for a wide range of FPV applications, including drone racing, freestyle flying, cinematic FPV, and long-range exploration. Its powerful signal and adjustable output make it suitable for environments with potential interference, ensuring a clear video feed for pilots pushing the limits of their drones.

Compatibility

This VTX is designed for broad compatibility with FPV drone frames featuring 30.5x30.5mm and 20x20mm mounting holes. It accepts a wide input voltage range (DC 7-27V, 2S-6S LiPo) and utilizes the IRCTramp control protocol. The standard MMCX antenna connector ensures easy integration with most FPV antennas.

FAQ

What is the maximum power output of the Pilotix R1600 VTX?

The Pilotix R1600 VTX offers an adjustable output power ranging from 25mW up to a maximum of 1.6W (1600mW), allowing you to tailor the signal strength to your flight environment and desired range.

What FPV drone mounting patterns does the Pilotix R1600 support?

This VTX is highly compatible, featuring mounting holes for both the standard 30.5x30.5mm and the smaller 20x20mm configurations. This ensures it can be easily integrated into a wide variety of FPV drone frames.

What voltage range does the Pilotix R1600 VTX operate on?

The Pilotix R1600 VTX supports a wide input voltage range of DC 7-27V, which corresponds to standard 2S to 6S LiPo batteries, providing flexibility for different drone power systems.

Does the Pilotix R1600 VTX have any self-testing features?

Yes, the Pilotix R1600 includes a power-on self-test function. This allows you to quickly check if the video transmission is working correctly before taking off, ensuring reliable performance.

Where can I buy the Pilotix R1600 VTX with fast delivery?

You can order the Pilotix R1600 VTX from HTDRONE, our specialized FPV drone parts store based in Poland. We offer fast international delivery via DHL, ensuring you receive your order quickly wherever you are.
