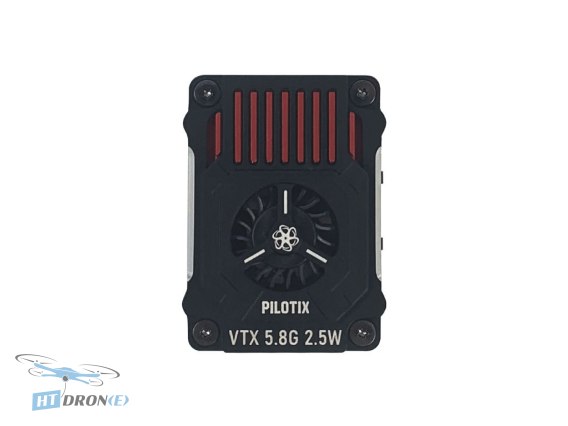

Pilotix R2500 5.8G 2.5W FPV VTX - High Power Video Transmitter

Introduction

The Pilotix R2500 is a high-performance 5.8GHz Video Transmitter (VTX) designed for serious FPV drone enthusiasts. Offering an impressive maximum output power of 2.5W, this VTX provides exceptional video signal stability and range, crucial for competitive racing, long-range exploration, and professional aerial cinematography. Built with advanced features and robust construction, the R2500 ensures reliable operation in demanding conditions.

Key Advantages

• Extreme Power Output: Selectable power levels up to 2.5W for unparalleled video link reliability and range.
• Wide Input Voltage Range: Supports DC7-36V (2-8S LiPo), offering broad compatibility with various FPV setups.
• Integrated Microphone: Capture immersive audio along with your HD video feed.
• IRCTramp Protocol: Utilizes the efficient and robust IRCTramp protocol for seamless control and configuration.
• Compact and Lightweight: Weighing only 16.5g and featuring a 25.5x25.5mm mounting pattern, it integrates easily into most builds.
• High-Quality Video: Supports NTSC/PAL formats for broad compatibility with FPV cameras and goggles.
• Durable MMCX Connector: Ensures a secure and reliable antenna connection.
• Versatile Power Options: Multiple output power settings (PIT, 25mW, 400mW, 800mW, 1600mW, 2500mW) allow for optimal performance in any situation.

Technical Specifications

• Model: VTX Pilotix R2500
• Frequency: 5.8G
• Input Voltage: DC7-36V (2-8S)
• Power Consumption: 120-860mA (at 12V, 25mW-2500mW)
• Operating Temperature: -10°C to 60°C
• Impedance: 75Ω
• Dimensions: 39.2x29x12mm
• Connector: MMCX
• Video Format: NTSC/PAL
• Protocol: IRCTramp
• Weight: 16.5g
• Mounting: 25.5x25.5mm (@M2)
• Output Power: PIT/25mW/400mW/800mW/1600mW/2500mW
• Features: Built-in microphone

Applications

The Pilotix R2500 VTX is perfectly suited for FPV racing drones, freestyle quads, long-range exploration vehicles, and professional UAV platforms where a powerful and stable video transmission is paramount. Its versatility makes it an excellent choice for pilots pushing the limits of their equipment.

Compatibility

Compatible with a wide range of FPV cameras supporting NTSC/PAL formats. The IRCTramp protocol ensures easy integration with compatible flight controllers and radio transmitters. The 25.5x25.5mm mounting standard fits most modern FPV drone frames. Features a standard MMCX antenna connector.

FAQ

What is the maximum power output of the Pilotix R2500 VTX?

The Pilotix R2500 VTX offers selectable output power levels, with a maximum of 2.5W (2500mW). This high power ensures a robust video signal for extended range FPV flights.

What input voltage does the Pilotix R2500 support?

This VTX supports a wide input voltage range of DC7-36V, which corresponds to 2-8S LiPo batteries. This makes it compatible with most FPV drone power systems.

Does the Pilotix R2500 VTX have a built-in microphone?

Yes, the Pilotix R2500 VTX features a built-in microphone, allowing you to capture clear audio along with your video feed for a more immersive FPV experience.

What protocol does the Pilotix R2500 use?

The Pilotix R2500 utilizes the IRCTramp protocol, known for its efficient communication and ease of configuration with compatible FPV systems.

Where can I buy the Pilotix R2500 VTX with fast delivery?

You can buy the Pilotix R2500 VTX at HTDRONE, your specialized FPV drone parts store based in Poland. We offer fast shipping within Poland and reliable worldwide delivery via DHL.
