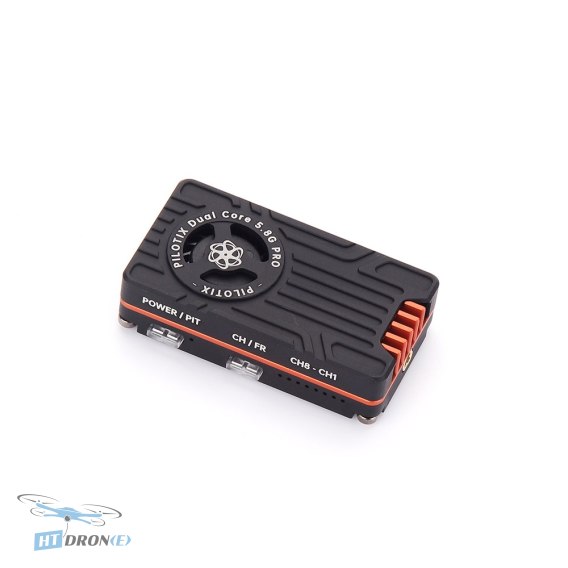

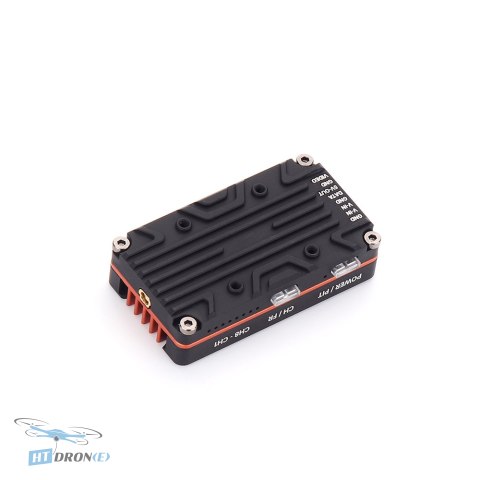

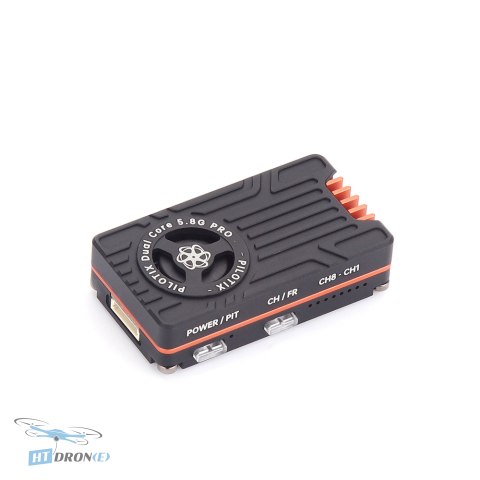

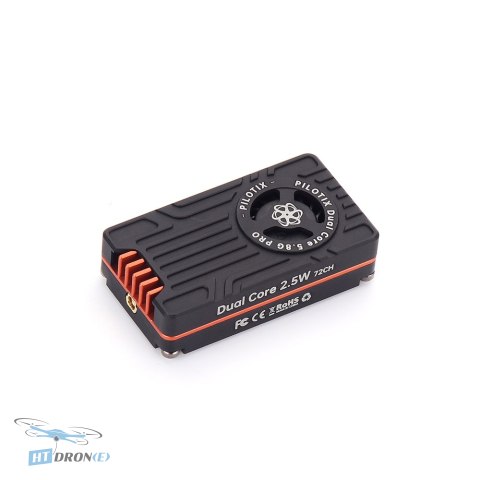

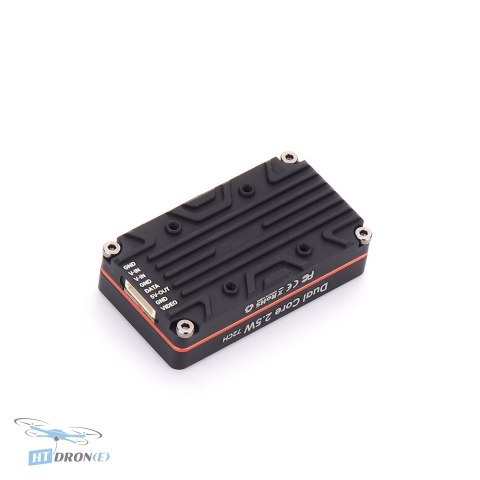

Pilotix R2500 V1.0 2.5W 5.8G FPV Video Transmitter for Long-Range Drones

Introduction

The Pilotix R2500 V1.0 is a high-power video transmitter designed specifically for FPV drones. Operating within the 4.9-5.8GHz frequency range with an impressive 2.5W output power, this VTX provides a strong and stable video transmission. It's the ultimate choice for pilots demanding exceptional video quality for long-distance flights, competitive racing, or operating in complex, signal-challenging environments. The Pilotix R2500 V1.0 is engineered for reliability and performance, making it a go-to component for serious FPV enthusiasts.

Key advantages

• High Power Output: Delivers up to 2.5W for exceptional video range and clarity.
• Wide Frequency Range: Operates on 4.9-5.8GHz with 72 channels for flexible setup.
• Stable Video Transmission: Ensures a reliable and clear FPV feed, even in demanding conditions.
• Compact and Lightweight: Easy to install on a wide variety of FPV drone configurations.
• Durable Construction: Built for reliable performance in professional FPV applications.
• Versatile Power Options: Supports DC7-36V input voltage.
• Standard Mounting: Features a 20x20mm M2 mounting pattern for easy integration.
• IRC Protocol Support: Compatible with popular FPV control systems.

Technical specifications

• Model: Pilotix R2500 V1.0 (5.8G 2.5W)
• Operating Voltage: DC7-36V
• Operating Current: 680mA (12V/1000mW), 1400mA (12V/2500mW)
• Operating Temperature: -10~60°C
• RF Impedance: 50Ω
• Video Input Impedance: 75Ω

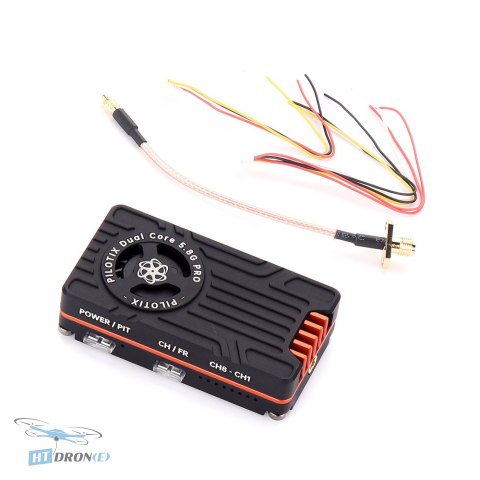

• Antenna Interface: MMCX
• Video Input Amplitude: CVBS 0.8-1.2VP-P
• Video Format: NTSC/PAL
• Protocol: IRC
• Number of Channels: 72CH (A-B-E-F-R-L-O-U-H-X)
• Output Power: PIT-25mW-1000mW-2000mW-2500mW
• Dimensions: 53x29.4x14.4mm
• Mounting Hole: 20x20mm - M2
• Weight: 30g

Applications

This VTX is ideal for long-range FPV flights, professional aerial photography, drone racing, and demanding FPV setups where a clear and stable video signal is paramount. Its high power output makes it suitable for overcoming signal obstructions and achieving greater distances.

Compatibility

The Pilotix R2500 V1.0 features an MMCX antenna interface and a 20x20mm M2 mounting pattern, ensuring compatibility with a wide range of FPV drone frames and components. It supports NTSC/PAL video formats and IRC protocol.

FAQ

What is the maximum output power of the Pilotix R2500 V1.0 VTX?

The Pilotix R2500 V1.0 VTX offers multiple output power settings, with a maximum of 2500mW (2.5W). This high power ensures a strong and stable video signal for long-range flights.

What is the operating voltage range for the Pilotix R2500 V1.0?

This video transmitter operates on a wide voltage range of DC7-36V, making it compatible with various battery setups commonly used in FPV drones.

What type of antenna connector does the Pilotix R2500 V1.0 use?

The Pilotix R2500 V1.0 features an MMCX antenna interface, which is a compact and secure connector suitable for FPV applications.

What are the mounting dimensions for the Pilotix R2500 V1.0?

The VTX has a mounting hole pattern of 20x20mm with M2 screws, a standard size for most FPV flight controllers and stack components.

Where can I buy the Pilotix R2500 V1.0 FPV VTX with fast delivery?

You can order the Pilotix R2500 V1.0 FPV VTX from HTDRONE. We offer fast shipping within Poland and reliable delivery to Ukraine via Nova Poshta, as well as worldwide shipping via DHL.
