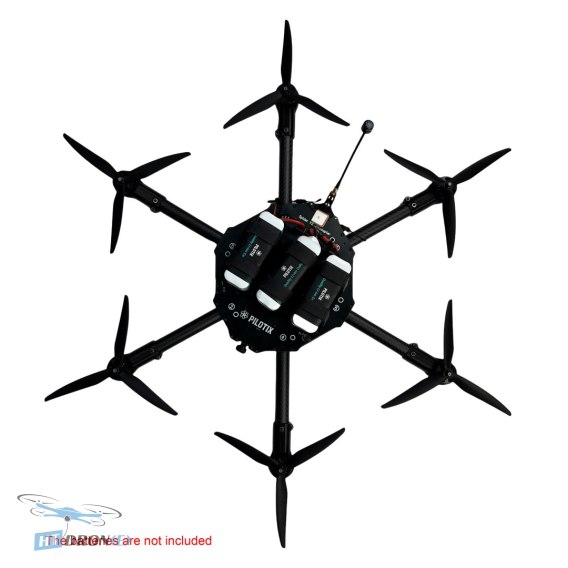

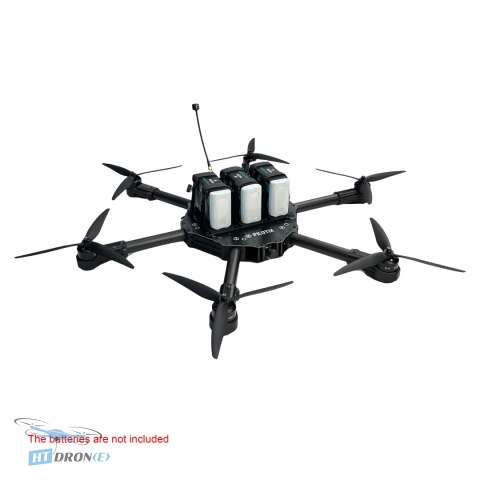

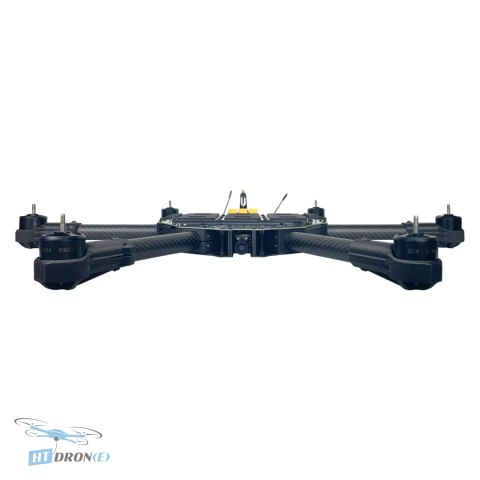

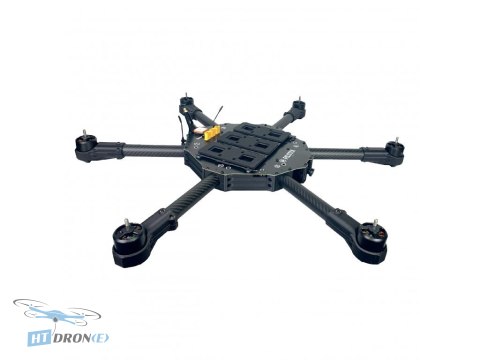

Pilotix Spider6 Advanced ELRS 5.8G 3W Cinelifter Drone

Introduction

The Pilotix Spider6 Advanced is a professional-grade 10-inch cinelifter FPV drone engineered for unparalleled aerial video production and heavy-lift applications. Designed for pilots who demand stability, power, and exceptional flight characteristics, this drone is your ultimate tool for capturing breathtaking cinematic footage and undertaking complex aerial missions. Its robust construction and advanced components ensure reliable performance in various conditions.

Key Advantages

• Heavy Payload Capacity: Capable of carrying payloads up to 5.0 kg, perfect for professional camera setups.
• Extended Flight Time: Achieve up to 40 minutes of flight time without payload (with 3x 6S 8000mAh batteries).
• High-Quality FPV System: Equipped with a Caddx Ratel PRO camera and a powerful 5.8G 3W VTX for clear, long-range video transmission.
• Advanced ELRS Receiver: Features an ELRS 915Mhz Diversity RX for superior control link reliability.
• Stable Flight Performance: Built on the robust Spider6 V2 frame with a 556mm wheelbase for exceptional stability.
• Versatile Firmware Support: Compatible with Betaflight, INAV, and Ardupilot for customized flight control.
• Integrated GPS: Includes a BZ251 GEN10 GPS module with a compass for navigation and return-to-home functionality.
• Durable Construction: Features 25mm arm tubes and 2mm thick bottom/top plates for resilience.

Technical Specifications

• Model: Spider6 V2 Advanced version

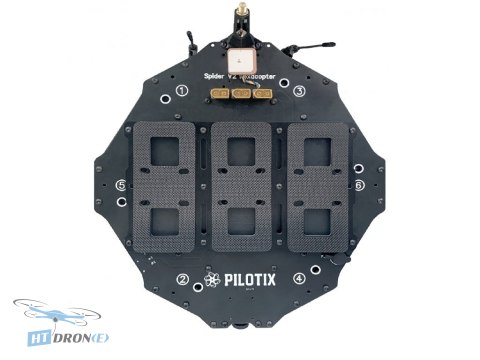

• Frame: Spider6 V2
• Dimensions: 603x541x88mm
• Weight: 2150g
• Wheelbase: 556mm
• Arm Tube Diameter: 25mm
• Bottom/Top Plate Thickness: 2mm
• Flight Controller (FC): Partizan H743 BMI270 gyro
• Firmware Support: Betaflight/INAV/Ardupilot
• Electronic Speed Controller (ESC): Partizan BLS 60A 4-in-1
• Video Transmitter (VTX): 5.8G 3W
• VTX Antenna: 5.8G RP-SMA RHCP 160mm
• Motor: Partizan 3214 800kv (6S)
• Propeller: GEMFAN 1050-3
• FPV Camera: Caddx Ratel 2 Night version
• Gimbal System: 9g servo gimbal
• Receiver: ELRS 915Mhz Diversity RX
• GPS Module: BZ251 GEN10 GPS with compass
• Recommended Battery: 6S 8000mAh LiPo x 3
• Flight Time (3x 8000mAh): 40 min (no load), 24 min (3kg load), 15 min (5kg load)
• Max Speed: 150 km/h
• Max Flight Altitude (MSL): 7000m
• Max Ascent Speed: 15m/s
• Stable Operating Temperature: -20°C to 50°C
• Payload Capacity: up to 5000g

Applications

This versatile cinelifter drone is ideal for professional filmmaking, high-end aerial photography, payload delivery testing, long-range FPV exploration, and industrial inspections requiring significant lifting capabilities. Its robust design and extended flight times make it suitable for demanding commercial applications.

Compatibility

The Pilotix Spider6 Advanced is designed to work with 6S LiPo batteries, with a recommended configuration of 3x 8000mAh batteries for optimal performance. It supports multiple flight controller firmwares including Betaflight, INAV, and Ardupilot, offering flexibility for advanced users. The ELRS 915Mhz receiver ensures compatibility with compatible ELRS radio transmitters.

For documentation, please Inquire about documentation.

Package includes: 1x Pilotix Spider6 Advanced.

FAQ

What is the maximum payload capacity of the Pilotix Spider6 Advanced drone?

The Pilotix Spider6 Advanced drone has a maximum payload capacity of up to 5.0 kg, making it suitable for carrying professional camera equipment or other heavy loads.

What is the expected flight time for the Pilotix Spider6 Advanced drone?

With the recommended 3x 6S 8000mAh batteries, the drone can achieve up to 40 minutes of flight time without a payload, 24 minutes with a 3kg load, and 15 minutes with a 5kg load.

What FPV camera and VTX system does the Pilotix Spider6 Advanced use?

The drone is equipped with a Caddx Ratel 2 Night version camera and a powerful 5.8G 3W VTX, ensuring clear video transmission for FPV piloting and recording.

Does the Pilotix Spider6 Advanced drone include a GPS module?

Yes, the Pilotix Spider6 Advanced comes with a BZ251 GEN10 GPS module that includes a compass, enabling navigation features like position hold and return-to-home.
