Pilotix F722 V2 Bettle 3060 AM32 60A FPV Drone Stack

Introduction

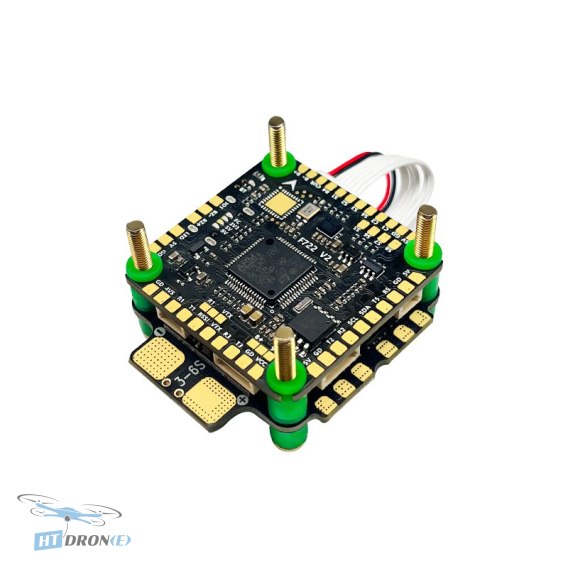

The Pilotix F722 V2 Flight Controller (FC) paired with the Bettle 3060 ESC is a high-performance integrated stack designed for demanding FPV drone builds. This combo offers a powerful flight control solution with robust electronic speed control, making it ideal for racing, freestyle, and professional FPV applications. Experience superior flight stability and responsiveness with this advanced setup from Pilotix.

Key Advantages

• Integrated F722 V2 Flight Controller and 3060 60A ESC for a clean and efficient build.
• Powerful STM32F722RET6 CPU and ICM42688P Gyro for precise flight control and stabilization.
• High current handling capability with 60A continuous and 70A burst current per motor.
• Wide input voltage range supporting 3-6S LiPo batteries for versatile power options.

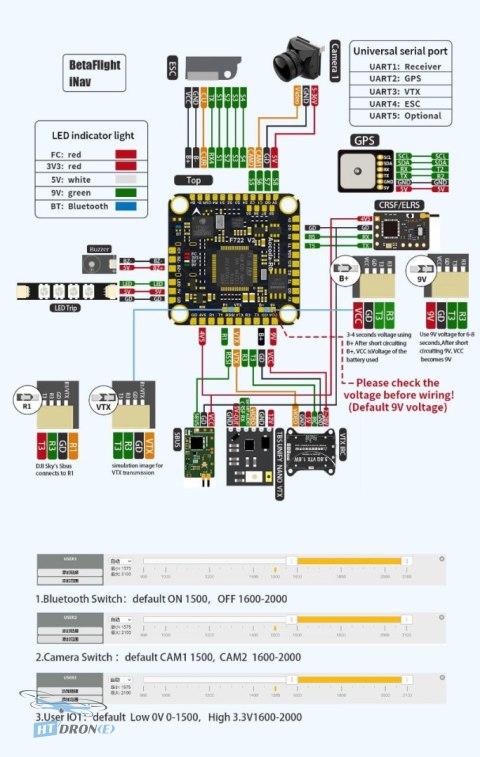

• Multiple UARTs and receiver support (ELRS/CRSF/S.BUS/Frsky/Futaba/Flysky/TBS Crossfire/DSMX) for extensive compatibility.
• Onboard OSD, 16MB Black Box, and LED strip support for enhanced functionality.
• Durable construction with standard 30.5mm x 30.5mm mounting holes for easy integration.
• Includes necessary connection cables for a straightforward setup.

Technical Specifications

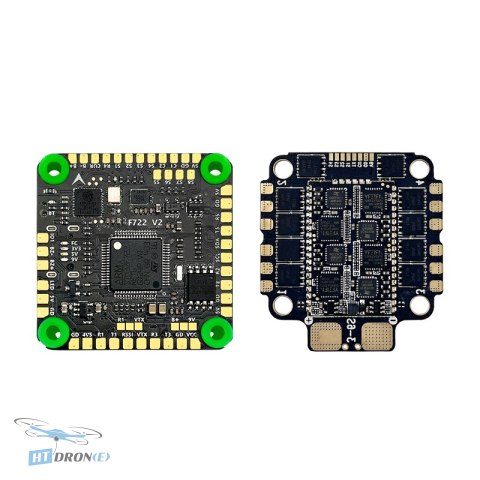

• Flight Controller (FC) F722 V2
• CPU: STM32F722RET6
• Gyro: ICM42688P
• Barometer: BMP280
• Black Box: 16MB
• OSD: Yes
• Motor Output: 8 channels
• UART: 5 channels
• LED Strip: Yes
• Buzzer: Yes
• BEC Output: 4.5V/2A, 5V/2.5A, 9V/3A
• Receiver Support: ELRS/CRSF/S.BUS/Frsky/Futaba/Flysky/TBS Crossfire/DSMX

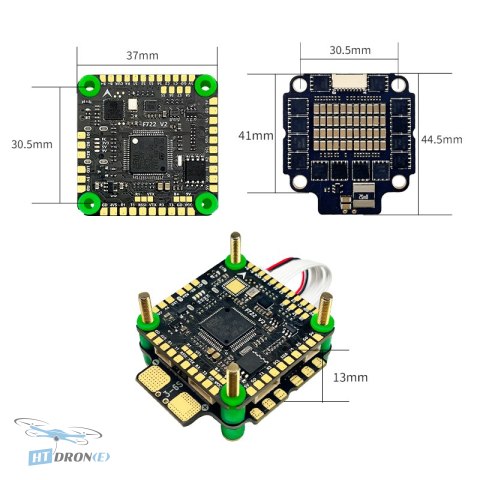

• Dimensions: 37mm x 37mm
• Weight: 9.4g
• Mounting Holes: 30.5mm x 30.5mm
• Firmware: AOCODARCF722V2
• Electronic Speed Controller (ESC) Bettle 3060
• Continuous Current: 60A x4
• Peak Current: 70A x4
• Input Signal: Dshot300/Dshot600/PWM/Bi-directional Dshot
• Telemetry: Supported
• Current Meter: Supported
• Input Voltage: 3-6S LiPo
• Firmware Name: AM32_AORC_AT421A
• Operating Temperature: 20°C ~ +85°C
• Operating Humidity: 20% ~ 95%
• Storage Temperature: 20°C ~ +70°C
• Weight: 13.9g
• Mounting Holes: M3 30.5mm x 30.5mm
• Dimensions: 41mm x 44.5mm

Applications

This FPV drone stack is perfect for building high-performance FPV quadcopters used in racing, freestyle flying, cinematic FPV, and general aerial exploration. Its robust design and powerful specifications cater to pilots who demand reliability and cutting-edge performance from their equipment.

Compatibility

The Pilotix F722 V2 FC supports a wide range of receivers including ELRS, CRSF, S.BUS, Frsky, Futaba, Flysky, TBS Crossfire, and DSMX. The ESC is compatible with 3-6S LiPo batteries and supports various input signals like Dshot300, Dshot600, PWM, and Bi-directional Dshot. Standard 30.5mm x 30.5mm mounting pattern ensures compatibility with most FPV frames.

FAQ

What is the Pilotix F722 V2 Bettle 3060 AM32 60A stack?

This is an integrated FPV drone system combining a Pilotix F722 V2 Flight Controller (FC) and a Bettle 3060 Electronic Speed Controller (ESC). It's designed to provide robust performance and control for FPV quadcopters.

What are the key technical specifications of this FPV stack?

The FC features an STM32F722RET6 CPU and ICM42688P Gyro, with 16MB Black Box and multiple UARTs. The ESC offers 60A continuous current per motor, supports 3-6S LiPo input, and uses Dshot600 signal.

What types of FPV drone builds is this stack suitable for?

This stack is ideal for high-performance FPV builds including racing drones, freestyle quadcopters, and cinematic FPV setups. Its powerful specs ensure reliability and responsiveness.

What receivers are compatible with the Pilotix F722 V2 FC?

The Pilotix F722 V2 Flight Controller supports a wide range of receivers, including ELRS, CRSF, S.BUS, Frsky, Futaba, Flysky, TBS Crossfire, and DSMX.

Where can I buy the Pilotix F722 V2 Bettle 3060 stack with fast delivery?

You can buy the Pilotix F722 V2 Bettle 3060 AM32 60A stack at HTDRONE. We offer fast delivery within Poland and reliable worldwide shipping via DHL.
