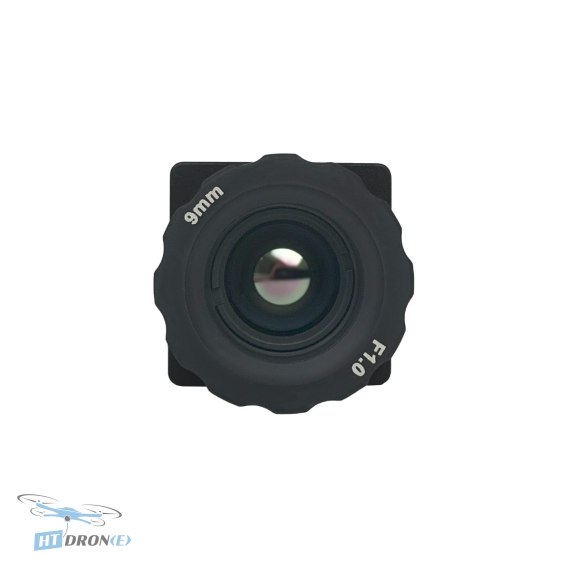

Pilotix T384 Thermal Camera (4mm) v1.1 for FPV Drones by Partizan

Introduction

The Pilotix Thermal T384 FPV v1.1 is an enhanced, compact thermal imaging solution specifically designed for integration into FPV and UAV drones. This latest version features redesigned rear connectors for simpler integration and a reduced board size of 20x20 mm, making it exceptionally suitable for lightweight drone constructions. Equipped with a 4mm lens and operating within the 8-14 μm infrared spectrum, this camera provides precise thermal signature detection with a resolution of 384x288 pixels, significantly boosting your drone's operational capabilities.

Key advantages

• High Thermal Resolution: 384x288 pixels for clear, detailed thermal imaging.
• Sensitive Detection: NETD ≤40 mK for accurate temperature anomaly detection.
• Wide Operating Temperature Range: Functions reliably from -40℃ to +60℃.
• Compact & Lightweight Design: Features a 20x20 mm board and weighs only 23g, ideal for small drones.

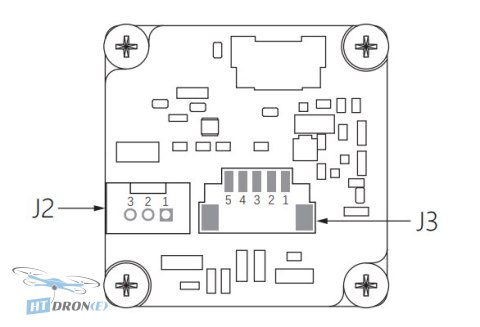

• Easy Integration: Redesigned connectors (J2 - 3-pin, J3 - 5-pin) simplify wiring.
• Low Power Consumption: Operates efficiently with DC 5-12V power and draws ≤0.8 W.
• Wide Spectral Band: Utilizes the 8-14 μm infrared range for effective thermal sensing.
• Automatic Image Refresh: Features auto-refresh of frozen image every 90 seconds.

Technical specifications

• Sensor Type: VOx microbolometer
• Resolution: 384x288 pixels
• Pixel Size: 12 μm
• Spectral Range: 8-14 μm
• NETD: ≤40 mK (@25°C, F#1.0)
• Field of View (FOV): 26.46° (H) × 19.81° (V) × 33.19° (D)
• Lens: 4mm focal length
• Operating Temperature: -40°C to +60°C
• Storage Temperature: -45°C to +75°C
• Humidity: <90% RH (operating and storage)</li>
• Power Supply: DC 5-12 V
• Power Consumption: ≤0.8 W

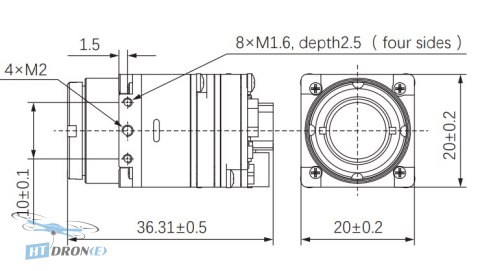

• Dimensions: 20 × 20 × 38 mm
• Weight: 23 g

Applications

This thermal camera is perfect for a wide range of applications including FPV racing, drone inspection (industrial, infrastructure, agricultural), search and rescue operations, wildlife monitoring, and any scenario where detecting heat signatures is critical. Enhance your drone's vision for unparalleled situational awareness and operational effectiveness.

Compatibility

The Pilotix T384 is designed for easy integration with most FPV and UAV systems, requiring a DC 5-12V power supply. Its compact 20x20mm mounting footprint and simplified J2 (3-pin) and J3 (5-pin) connectors ensure broad compatibility with various flight controllers and drone frames. Low power consumption of ≤0.8 W makes it suitable for battery-powered applications.

FAQ

What is the Pilotix T384 FPV Thermal Camera ideal for?

The Pilotix T384 FPV Thermal Camera is ideal for FPV drones and UAV applications requiring detailed thermal imaging. Its compact size, low weight, and high resolution make it perfect for applications like drone inspection, search and rescue, and enhanced situational awareness during flights.

What are the key technical specifications of the Pilotix T384?

The Pilotix T384 features a 384x288 thermal resolution, a 4mm lens with a 26.46° FOV, and operates in the 8-14 μm spectrum. It boasts a NETD of ≤40 mK, works within -40℃ to +60℃, and has a low power consumption of ≤0.8 W.

How easy is it to integrate the Pilotix T384 into a drone?

Integration is simplified thanks to its compact 20x20 mm board size and redesigned rear connectors (J2 - 3-pin, J3 - 5-pin). Its lightweight design (23g) and low power requirements further enhance ease of installation on various drone platforms.

Where can I buy the Pilotix T384 FPV Thermal Camera?

You can buy the Pilotix T384 FPV Thermal Camera at HTDRONE, a specialized FPV and UAV drone parts store. We offer fast delivery within Poland and reliable international shipping via DHL. Check our shop for the best price and deals.

What is the power requirement for the Pilotix T384 camera?

The Pilotix T384 camera operates on a DC 5-12V power supply. It is designed for efficiency, with a low power consumption of 0.8W or less, making it suitable for extended use on battery-powered drones.
