Pilotix T384 Thermal Camera (9mm Lens) v1.1 for FPV Drones by Partizan

Introduction

The Pilotix Thermal T384 FPV v1.1 is an enhanced, compact thermal imaging solution engineered specifically for drone applications. This latest version boasts redesigned rear connectors for easier integration and a reduced board size of 20x20mm, making it perfect for lightweight drone constructions. Equipped with a 9mm lens and operating within the 8-14 μm infrared spectrum, this camera delivers precise thermal signature detection with a 384x288 pixel resolution, empowering your drone with advanced thermal vision capabilities.

Key advantages

• High-resolution thermal imaging with 384x288 pixels for clear details.
• Precise thermal detection with a 9mm lens and 8-14 μm spectral range.
• Exceptional sensitivity (NETD ≤40 mK) for accurate temperature analysis.
• Wide operating temperature range (-40℃ to +60℃) for diverse conditions.
• Ultra-lightweight and compact design (20x20mm board, only 23g) ideal for drones.
• Simplified wiring with new connector layout (J2 - 3-pin, J3 - 5-pin).
• Low power consumption (≤0.8 W) with DC 5-12 V input.
• Automatic freeze-frame refresh every 90 seconds for continuous monitoring.

Technical specifications

• Sensor Type: VOx microbolometer
• Resolution: 384x288 pixels
• Pixel Size: 12 μm
• Spectral Range: 8-14 μm
• NETD: ≤40 mK (@25°C, F#1.0)
• Field of View (FOV): 26.46° (H) × 19.81° (V) × 33.19° (D)

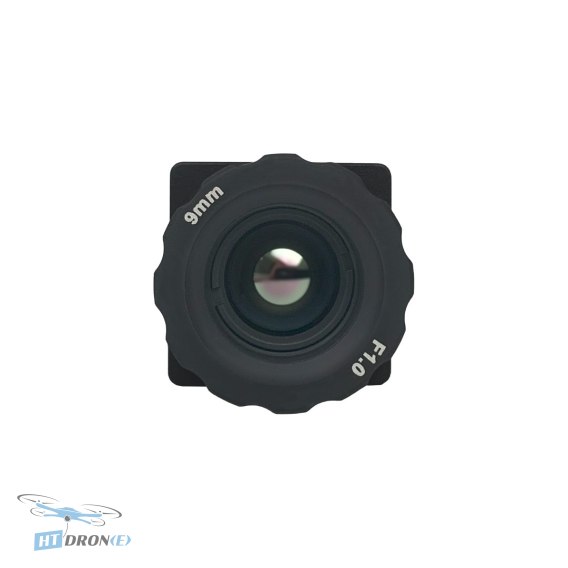

• Lens: 9 mm focal length
• Operating Temperature: -40°C to +60°C
• Storage Temperature: -45°C to +75°C
• Humidity: <90% RH (operating and storage)</li>
• Power Supply: DC 5-12 V
• Power Consumption: ≤0.8 W

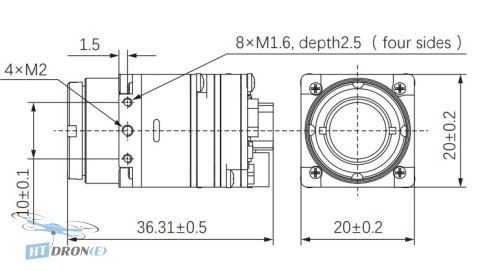

• Dimensions: 20 × 20 × 38 mm
• Weight: 23 g

Applications

This thermal camera is ideal for a wide range of applications including FPV racing, professional UAV operations, aerial inspections, search and rescue, wildlife monitoring, and security surveillance where thermal imaging is crucial for detection and analysis.

Compatibility

The Pilotix T384 is designed for easy integration into various drone platforms. It operates on DC 5-12 V power and features a low power consumption of ≤0.8 W. The redesigned 3-pin (J2) and 5-pin (J3) connectors simplify wiring, making it compatible with custom FPV and UAV builds.

FAQ

What is the Pilotix T384 Thermal Camera designed for?

The Pilotix T384 Thermal Camera v1.1 is specifically designed for FPV and UAV drone applications, offering compact and lightweight thermal imaging capabilities for enhanced situational awareness and inspection.

What are the key technical specifications of the Pilotix T384?

It features a 384x288 thermal resolution, a 9mm lens with a 26.46° FOV, operates in the 8-14 μm spectrum, has a NETD of ≤40 mK, and weighs only 23g. It runs on DC 5-12V with low power consumption.

Is the Pilotix T384 easy to integrate into a drone?

Yes, the v1.1 version features redesigned connectors and a compact 20x20mm board size, simplifying wiring and integration into various drone frames, especially lightweight custom builds.

Where can I buy the Pilotix T384 FPV Thermal Camera?

You can buy the Pilotix T384 FPV Thermal Camera at HTDRONE. We offer fast shipping within Poland and reliable delivery to Ukraine via Nova Poshta, as well as worldwide shipping via DHL.

What is the benefit of the automatic freeze-frame refresh?

The automatic freeze-frame refresh every 90 seconds ensures that the camera continuously provides updated thermal data, preventing the loss of critical information due to image freezing and aiding in constant monitoring.
