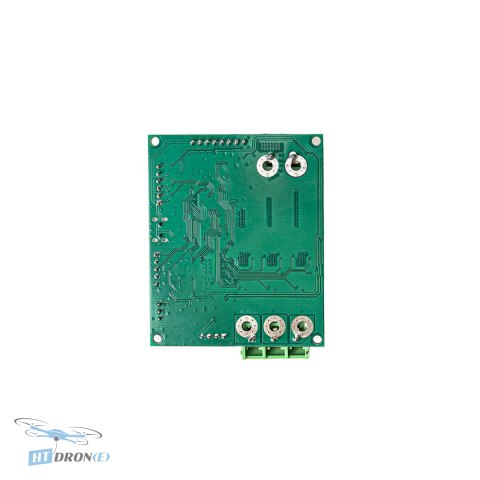

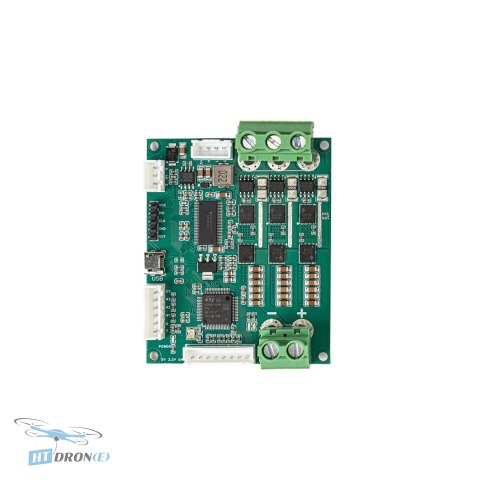

Pilotix Vehicle ESC Single Pilotix 8S 40A for Ground Robots and Rovers

Introduction

The Pilotix 8S 40A Vehicle ESC is a high-performance electronic speed controller engineered for ground-based drones, autonomous rovers, and robotic vehicle platforms. It delivers smooth, responsive motor control and consistent power, ensuring stable operation even in rugged environments and under heavy loads. Designed for endurance, this ESC maintains reliable performance during extended missions, high-current operations, and challenging working conditions. Its Hall sensor support is crucial for precise wheel positioning feedback, improving traction, low-speed smoothness, and overall steering accuracy, which is vital for autonomous navigation systems.

Key Advantages

• Open-source VESC firmware ensures precise and smooth motor control.
• Wide compatibility with various control methods and communication interfaces.
• Flexible integration with external controllers and telemetry systems.
• Reliable power handling for demanding applications.
• Compact design suitable for custom and space-constrained builds.
• Specifically designed for ground vehicles and rover-type drones.
• Hall sensor support for accurate wheel positioning and smoother low-speed steering.
• High current capability provides ample torque for heavy-duty platforms.

Technical Specifications

• Firmware: VESC_mk5/HD60
• Input Voltage: 8S
• Continuous Current: 40A
• Burst Current: 60A
• Peak Power: 2000W
• Current Sensor: INA240
• Telemetry: UART/CAN
• Supported Interfaces: PPM/Analog(ADC)/UART/CAN/USB
• PCB Layers: 2-layer / 2oz
• Dimensions: 73.2 x 60.2 mm

Applications

This ESC is perfectly suited for autonomous ground vehicles, robotic rovers, inspection bots, agricultural robots, and custom-built ground drones requiring precise motor control and robust power delivery. It excels in applications demanding accurate low-speed maneuverability and high torque.

Compatibility

Supports a wide range of control inputs including PPM, Analog (ADC), UART, CAN, and USB. Features UART and CAN for telemetry feedback. Compatible with 8S battery systems and capable of handling up to 40A continuous current.

FAQ

What is the Pilotix Vehicle ESC Single 8S 40A best suited for?

The Pilotix Vehicle ESC Single 8S 40A is specifically designed for ground-based drones, autonomous rovers, and robotic vehicle platforms. Its robust design and precise control capabilities make it ideal for applications requiring reliable power and maneuverability in various terrains.

What are the key technical specifications of the Pilotix 8S 40A ESC?

This ESC supports an 8S input voltage, offers 40A continuous current and 60A burst current, with a peak power of 2000W. It features VESC firmware, INA240 current sensing, and supports UART/CAN telemetry. It is compatible with PPM, Analog(ADC), UART, CAN, and USB control inputs.

Does the Pilotix 8S 40A ESC support Hall sensors?

Yes, the Pilotix 8S 40A ESC supports Hall sensors. This feature provides precise feedback on wheel positioning, which significantly improves traction, enhances smoothness during low-speed operation, and increases overall steering accuracy for autonomous systems.

Where can I buy the Pilotix Vehicle ESC Single 8S 40A with reliable delivery?

You can buy the Pilotix Vehicle ESC Single 8S 40A at HTDRONE. We offer fast and reliable shipping within Poland and worldwide via DHL, ensuring your components arrive promptly for your projects.

What makes this ESC suitable for demanding applications?

Its design focuses on long-term reliability, stable operation under high current, and performance in challenging conditions. The high current capability ensures sufficient torque for heavy-duty platforms, making it a dependable choice for demanding robotic tasks.
