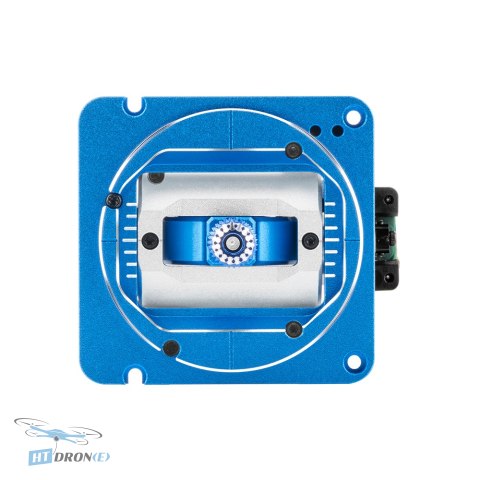

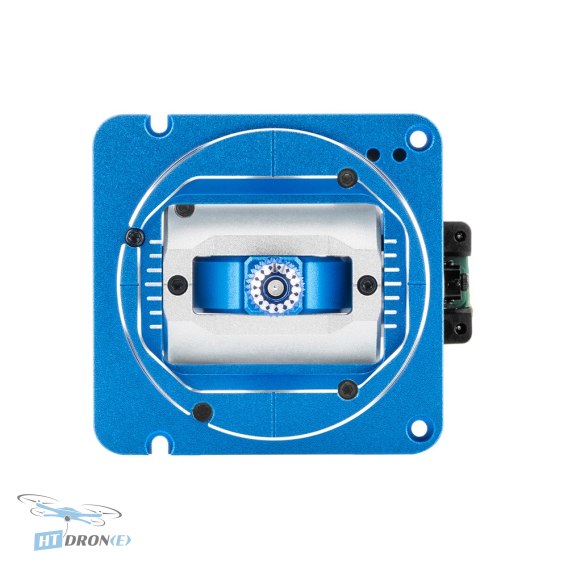

RadioMaster AG02 CNC Hall Gimbal Single Centering Blue for FPV Drones

Introduction

The RadioMaster AG02 CNC Hall Gimbal (Single Centering) in Blue is a premium upgrade component designed for FPV drone enthusiasts and professional pilots. Engineered for superior control and responsiveness, these gimbals replace standard components, offering a significant enhancement in flight feel and precision. This model is specifically designed for single centering, providing a tactile and accurate control experience crucial for complex maneuvers and precise flying.

Key advantages

• Precision CNC Machined Aluminum: Offers exceptional durability and a premium feel.
• Reduced Rotational Inertia: Over 20% reduction compared to previous generations ensures smoother, faster stick response.
• Next-Gen Silent Hall Sensors: Delivers ultra-fast response with exceptional accuracy and stability.
• Adjustable Throw: Customize vertical and horizontal stick travel for a personalized feel.
• Four Precision Ball Bearings: Provides an unmatched, smooth stick gimbal feel.
• Anodized Finish: Available in multiple colors (including blue) for a stylish, professional look.
• Direct Compatibility: Designed for easy installation on compatible RadioMaster controllers.
• Enhanced Responsiveness: Improves overall flight control precision and pilot feedback.

Technical specifications

• Product: AG02 CNC Hall Gimbal Set
• Sensor Type: Analog Hall
• Operating Voltage: DC 3.3V
• X-Axis Throw Adjustment Range: 30°-56°
• Y-Axis Throw Adjustment Range: 38°-54°
• Throttle Mode Switching (Mode 1/2) without Disassembly: Supported
• Spring Tension Adjustment without Disassembly: Supported
• Four Ball Bearings: Yes
• Operating Temperature Range: -20°C to 85°C

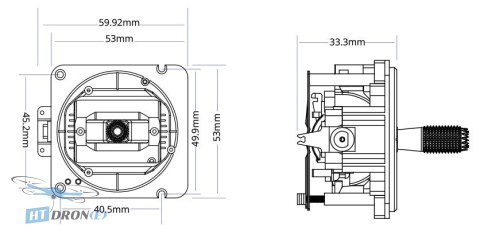

• Dimensions (without stick ends): 53 x 53 x 33.3 mm
• Weight: 73 g ± 1 g (per piece)

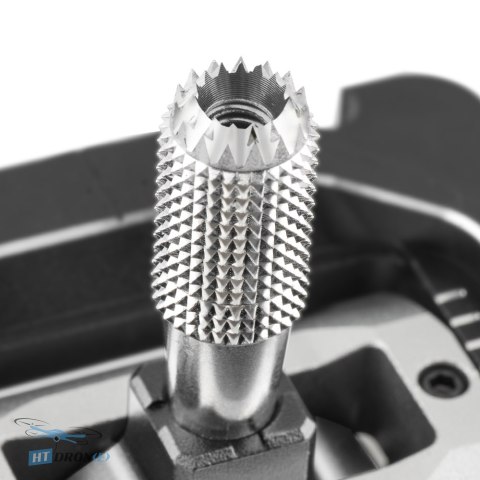

• Gimbal Sticks: M4
• Color: Blue

Applications

These gimbals are perfect for FPV racing drones, freestyle flying, cinematic aerial videography, UAV operations, and any application requiring precise and responsive remote control input. They enhance the piloting experience for simulators and professional drone control systems.

Compatibility

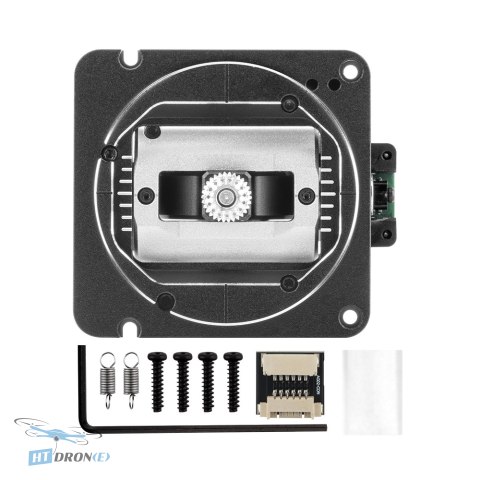

Designed for RadioMaster TX16, TX15, and Boxer Radio Controllers. Includes an adapter plate (GH1.25-SH1.25) specifically for Boxer/TX16sMKII models.

FAQ

What makes the RadioMaster AG02 CNC Hall Gimbal stand out?

The AG02 features precision CNC-machined aluminum construction, reduced rotational inertia for smoother response, and advanced Hall sensors for exceptional accuracy. Its adjustable throw and four ball bearings offer a highly personalized and responsive control feel.

Which RadioMaster controllers are compatible with the AG02 CNC Hall Gimbals?

The AG02 gimbals are designed for RadioMaster TX16, TX15, and Boxer Radio Controllers. An included adapter plate ensures compatibility with Boxer/TX16sMKII models.

Can I adjust the stick feel on the AG02 gimbals?

Yes, the AG02 gimbals offer adjustable throw for both the X and Y axes, allowing you to customize the travel distance to your preference. Spring tension is also adjustable without disassembly.

What is the main benefit of Hall sensors in these gimbals?

Hall sensors provide non-contact operation, which means no physical wear and tear, leading to greater longevity and consistent, reliable performance. They also offer faster response times and higher accuracy compared to traditional potentiometers.

Where can I buy the RadioMaster AG02 CNC Hall Gimbal in Blue and what are the shipping options?

You can buy the RadioMaster AG02 CNC Hall Gimbal in Blue directly from HTDRONE. We offer fast worldwide shipping via DHL, ensuring your FPV parts arrive quickly and reliably.
