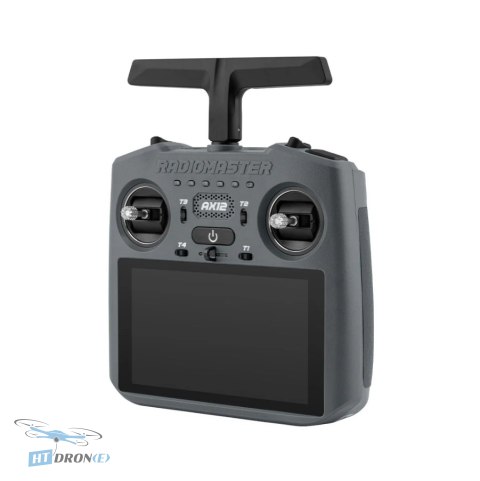

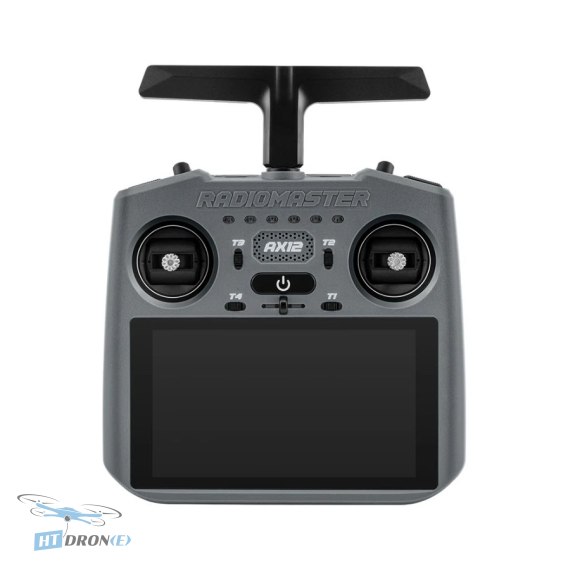

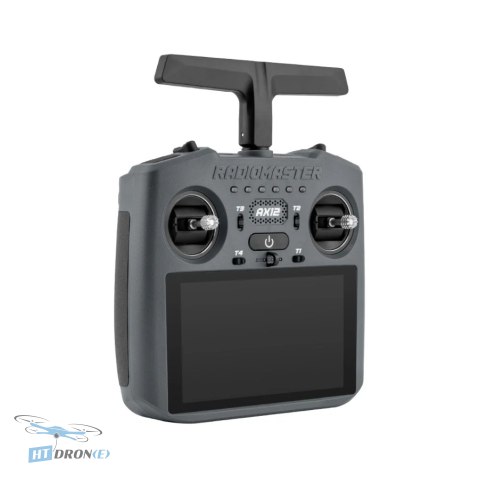

RadioMaster AX12 ExpressLRS Touchscreen Radio Controller for FPV Drones & UAV

Introduction

The RadioMaster AX12 ExpressLRS represents a significant leap forward in remote control technology, specifically engineered for the demanding FPV drone and UAV sectors. This advanced radio controller integrates the high-performance ExpressLRS long-range transmission system with an intuitive Android-based operating system and a large HD touchscreen display. It's built to provide professional-grade control, seamless telemetry monitoring, and a highly customizable user experience for both seasoned FPV enthusiasts and professional operators.

Key Advantages

• Integrated ExpressLRS System: Delivers reliable long-range communication with exceptionally low latency for precise control.
• Vibrant HD Touchscreen: A 5.5-inch HD display offers clear navigation, intuitive interface control, and detailed telemetry visualization.
• Android OS Powered: Run compatible control and configuration apps directly on the controller for ultimate flexibility.

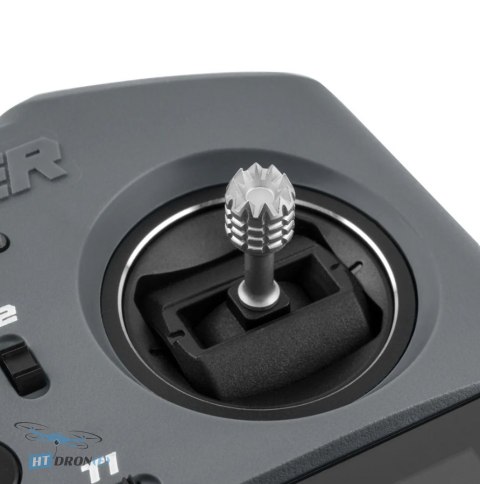

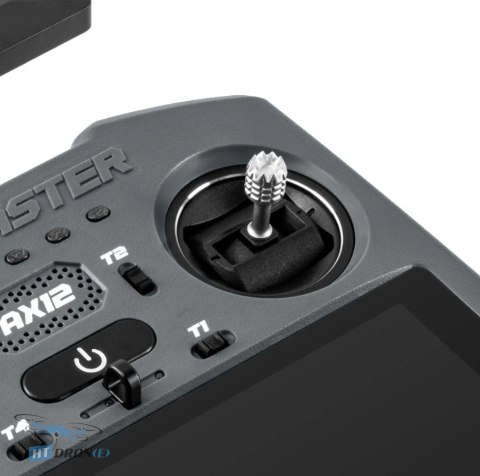

• Precision Hall Gimbals: Equipped with 5 Hall effect gimbals for ultra-smooth, stable, and accurate stick movements.
• Powerful Performance: An octa-core processor ensures smooth multitasking and a responsive system experience.
• HDMI Connectivity: Supports HDMI input and output for displaying and sharing FPV video on external screens.
• Advanced Customization: Features extensive mixing options, custom curves, and flexible channel mapping for complex model setups.
• Expandable Design: Includes a Nano module bay for adding additional RF modules if needed.

Technical Specifications

• Product: AX12 Radio Controller
• Frequency: 2.4 GHz or Sub-G 868 MHz
• Built-in RF Module: ExpressLRS 2.4 GHz / Sub-G 868 MHz
• Supported Protocols: ExpressLRS
• Channels: Up to 16 (receiver dependent)
• Operating Current: 1.10A (at max output power)
• Display: 5.5-inch HD Touchscreen (1280x720)
• Device Firmware: Android 9.0
• Radio Software: RadioMaster OS
• Processor: Octa-core CPU
• RAM: 4GB
• Internal Storage: 64GB Flash Memory
• Gimbals: 5 Hall Effect Gimbals (AG01-NANO upgrade compatible)

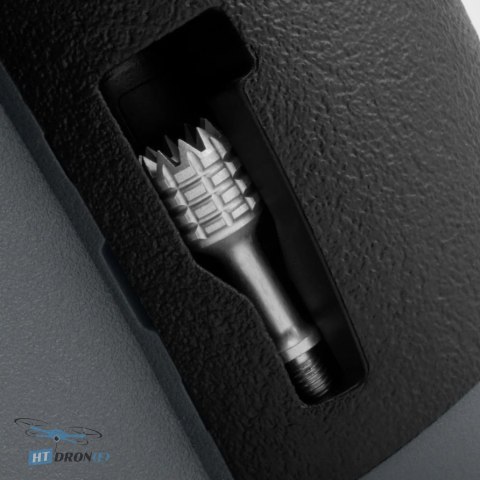

• Gimbal Sticks: Removable and retractable

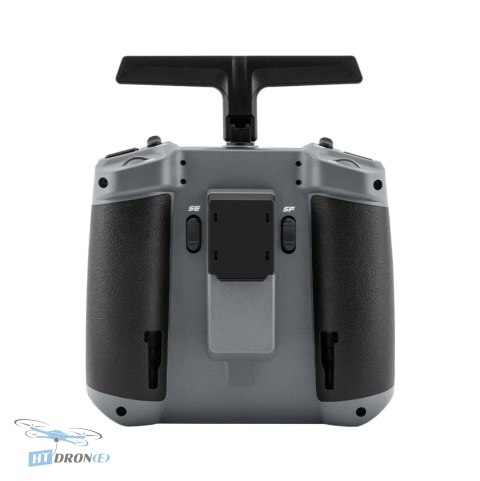

• External Module Support: Nano module slot
• Charging: USB-C Power Delivery compatible charger required
• Battery: Dual 3.7V 21700 Lithium Batteries (Internal)
• Firmware Update: Over-the-air Wi-Fi updates
• Connectivity: Wi-Fi, Bluetooth, USB-C
• Dimensions: 171 x 168 x 73 mm
• Weight: 640g

Applications

The RadioMaster AX12 ExpressLRS is ideal for a wide range of applications including competitive FPV racing, freestyle FPV flying, professional UAV operations, aerial cinematography, long-range exploration, and advanced RC model control. Its versatility makes it suitable for users requiring high precision, extended range, and comprehensive telemetry data.

Compatibility

Compatible with ExpressLRS receivers. Features USB-C connectivity for charging and potential data transfer. Supports external Nano modules for expanded RF protocol compatibility. Requires a USB-C Power Delivery charger.

FAQ

What makes the RadioMaster AX12 ExpressLRS stand out for FPV pilots?

The AX12 ExpressLRS offers a unique combination of a large HD touchscreen, an Android operating system for app integration, and the high-performance ExpressLRS radio link. This allows for intuitive control, detailed telemetry display, and advanced customization options, making it ideal for demanding FPV applications.

Can I use the RadioMaster AX12 for long-range FPV flights?

Yes, the integrated ExpressLRS system supports both 2.4GHz and 868MHz frequencies, providing reliable, low-latency communication over long distances. This makes the AX12 an excellent choice for pilots who need extended range and signal integrity.

What type of gimbals does the RadioMaster AX12 feature?

The RadioMaster AX12 is equipped with five high-precision Hall effect gimbals. These gimbals offer smooth, stable, and accurate control inputs, crucial for precise maneuvering in FPV and UAV operations. They are also compatible with the AG01-NANO upgrade for further enhancement.

Where can I buy the RadioMaster AX12 ExpressLRS controller with fast delivery?

You can buy the RadioMaster AX12 ExpressLRS controller at HTDRONE. We offer fast shipping within Poland and reliable worldwide delivery via DHL, ensuring you receive your advanced FPV equipment quickly.

Is the RadioMaster AX12 compatible with external RF modules?

Yes, the RadioMaster AX12 features a Nano module slot, allowing you to expand its compatibility by adding various external RF modules. This provides flexibility for pilots who may need to use different transmission protocols or want to integrate existing receivers.
