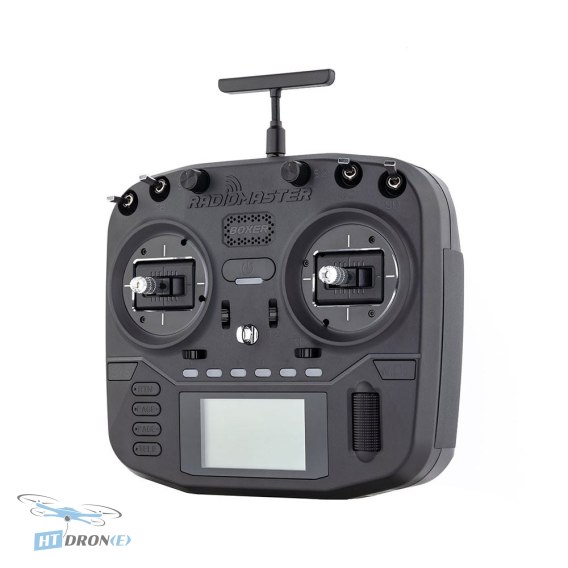

RadioMaster Boxer CC2500 LBT 2.4GHz FPV Radio Controller

Introduction

The RadioMaster Boxer CC2500 LBT represents a perfect blend of portability, ergonomics, and advanced functionality, making it an ideal choice for FPV pilots who demand performance and comfort, especially when traveling. This transmitter is engineered to provide a superior control experience without sacrificing convenience, offering a compact yet feature-rich solution for all your flying needs.

Key Advantages

• Compact and Ergonomic Design: Perfectly balanced size and shape for comfortable handling, even during extended flights.
• Versatile RF Module Options: Available with built-in ExpressLRS or a 4-in-1/CC2500 MPM RF module for broad compatibility.
• High-Performance Internals: Powered by an STM32F407VGT6 chip with 1MB Flash and 192KB RAM for smooth operation.
• Precision Control: Equipped with standard V4.0 full-sized Hall gimbals, with an option to upgrade to AG01 CNC Hall gimbals.

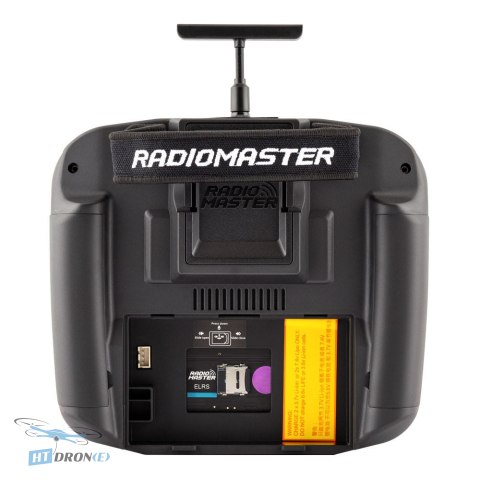

• Long Battery Life: Features an enlarged battery compartment supporting a 2S 6200mAh LiPo or two 18650 Li-Ion cells for up to 20 hours of flight time (batteries not included).
• EdgeTX Firmware: Pre-installed with the powerful and intuitive EdgeTX firmware for extensive customization.
• Fast Charging Support: Supports QC3.0 fast charging up to 2.0A MAX for quick power-ups.
• Integrated Cooling: Includes an internal cooling fan for the ELRS module (ELRS version) to maintain optimal performance.

Technical Specifications

• Model: RadioMaster Boxer
• RF Module: CC2500 multi-protocol
• Frequency: 2.400GHz-2.480GHz
• Protocols Supported: LBT FrSKY X/X2 LBT and HoTT LBT compliant protocols
• Transmit Power (CC2500): Max 20dBm
• Processor: STM32F407VGT6 with 1MB Flash and 192KB RAM
• Firmware: EdgeTX (Transmitter) / Multi-Module (RF module) / ELRS
• Channels: Up to 16 channels (receiver dependent)
• Power Voltage: 6.6-8.4V DC
• Battery: 2-cell 7.4V LiPo or two 3.7V 18650 Li-Ion cells (batteries not included)
• Display: 128x64 Monochrome LCD
• Gimbals: Standard V4.0 Hall Gimbals (AG01 optional)
• External Module Bay: JR / FrSKY / Crossfire compatible
• Update Method: USB / SD Card & EdgeTX Companion PC
• Charging: QC3.0 2.0A MAX
• Dimensions: 235 x 178 x 77mm
• Weight: 532.5g (without battery)
• Cooling: Internal fan (ELRS version)

Applications

The RadioMaster Boxer CC2500 LBT is exceptionally versatile, catering to a wide range of RC applications including FPV racing, freestyle drone flying, long-range exploration, UAV operations, and general RC model control. Its robust features and compact design make it suitable for both beginners and experienced pilots.

Compatibility

This radio controller features a standard JR module bay, making it compatible with popular external RF modules like FrSky and Crossfire. It supports LBT versions of FrSKY X/X2 and HoTT protocols. The USB-C port allows for easy firmware updates and configuration using EdgeTX Companion software. The battery compartment is designed to accommodate standard 2S LiPo packs or 18650 Li-Ion cells.

FAQ

What makes the RadioMaster Boxer CC2500 LBT ideal for travel?

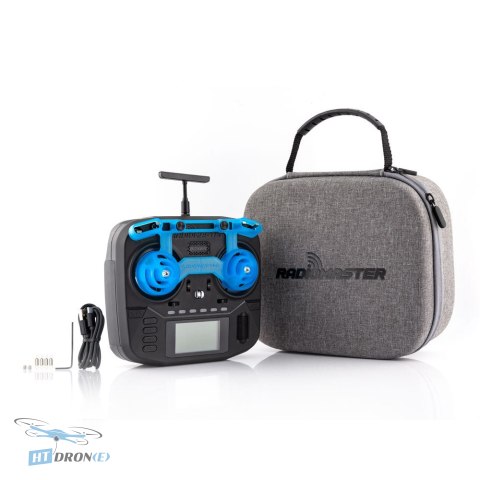

The RadioMaster Boxer CC2500 LBT is designed with a compact size and excellent ergonomics, making it highly portable and comfortable to hold, even during long flights. Its durable construction and included carrying case further enhance its suitability for pilots on the go.

What RF protocols does the RadioMaster Boxer CC2500 LBT support?

This version supports LBT (Listen Before Talk) protocols, specifically FrSKY X/X2 LBT and HoTT LBT. The CC2500 multi-protocol module offers broad compatibility with many receivers operating under these standards.

How long can the RadioMaster Boxer CC2500 LBT operate on a single charge?

With its enlarged battery compartment designed for a 2S 6200mAh LiPo or two 18650 Li-Ion cells (batteries not included), the RadioMaster Boxer can provide up to 20 hours of operation, ensuring extended flight sessions without frequent recharging.

Can I upgrade the gimbals on the RadioMaster Boxer CC2500 LBT?

Yes, the RadioMaster Boxer CC2500 LBT comes standard with precise V4.0 Hall gimbals. For even greater precision and durability, it offers compatibility with the premium AG01 CNC Hall gimbals, allowing for a personalized control experience.

Where can I buy the RadioMaster Boxer CC2500 LBT with fast delivery?

You can buy the RadioMaster Boxer CC2500 LBT at HTDRONE, your specialized FPV drone parts store based in Poland. We offer fast shipping within Poland and reliable worldwide delivery via DHL. Check our store for the best deals and order yours today!
