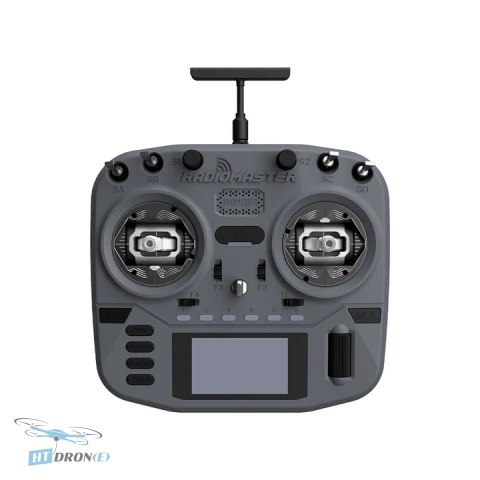

RadioMaster Boxer CRUSH ExpressLRS GREY Radio Controller with Hall Gimbals

Introduction

The RadioMaster Boxer CRUSH ExpressLRS GREY is a high-performance FPV radio transmitter engineered for unparalleled control and precision. Designed for demanding FPV pilots, this controller combines advanced technology with user-centric features to elevate your flying experience. Its robust construction and ergonomic design ensure comfort and reliability during extended flight sessions, making it the best choice for both competitive racing and intricate freestyle maneuvers.

Key Advantages

• Superior Control: CNC Aluminium AG01 Hall Gimbals offer exceptional precision and durability.
• Integrated ExpressLRS: Features a powerful internal ExpressLRS module with up to 1000Hz refresh rate for minimal latency.
• Powerful Processing: Equipped with an STM32F407VGT6 chip for smooth operation and fast response times.
• Ergonomic Design: Compact yet comfortable, with new low-profile switches and interchangeable grips.
• Extended Battery Life: Large battery compartment supports up to a 2S 6200 mAh pack for up to 20 hours of use.
• Fast Charging: Supports QC3.0 2.0A MAX fast charging for quick power-ups.
• EdgeTX Firmware: Comes pre-loaded with the versatile and widely-supported EdgeTX firmware.
• Travel Ready: Includes a protective case and gimbal protector for safe transport.

Technical Specifications

• Product Name: Radio Boxer Crush

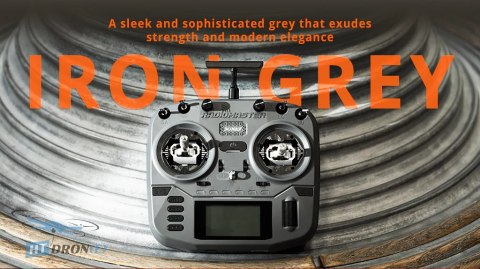

• Color: Iron Grey
• Dimensions: 235*178*77mm
• Weight: 617.1g
• Frequency: 2.400GHz-2.480GHz
• Internal RF Module: ExpressLRS 2.4GHz
• Supported Protocols: Module dependent
• Cooling Fan: Built-in
• Operating Voltage: 6.6-8.4V DC
• Radio Firmware: EdgeTX
• RF Module Firmware: ExpressLRS
• Max Channels: 16 channels (receiver dependent)
• Battery Compatibility: 7.4V 2S Lipo or two 3.7V 18650 Li-Ion cells (batteries not included)
• Display: 128*64 monochrome LCD
• Gimbals: AG01 CNC Hall Gimbal
• External Module Bay: Compatible with JR / FrSKY / Crossfire standards
• Update Method: USB / SD Card & EdgeTX Companion PC Software
• Package Includes: Radio Boxer Crush, Signature Case, T-Antenna, USB-C Cable, Gimbal Protector, 1.5mm Hex Wrench, M4*4 Screws, Low-Tension Springs, 18650 Battery Tray, Stickers, Manual.

Applications

This FPV radio controller is ideal for a wide range of applications including FPV racing, drone freestyle, aerial acrobatics, long-range exploration, and professional UAV operations. Its precise gimbals and high refresh rate make it suitable for complex control tasks and competitive flying.

Compatibility

The RadioMaster Boxer CRUSH is compatible with JR, FrSKY, and Crossfire external modules via its standard JR module bay. It supports the ExpressLRS 2.4GHz protocol natively. The controller operates on 6.6-8.4V DC and uses a 2S Lipo or two 18650 Li-Ion cells (not included). Updates are easily managed via USB or SD card using EdgeTX Companion.

FAQ

What makes the RadioMaster Boxer CRUSH ExpressLRS GREY ideal for FPV racing?

The RadioMaster Boxer CRUSH excels in FPV racing due to its high-precision AG01 CNC Hall Gimbals, offering smooth and accurate control. The integrated 1000Hz ExpressLRS module ensures minimal latency, which is critical for split-second reactions needed in competitive racing. Its ergonomic design also provides comfort during intense sessions.

What is the battery life and charging capability of the RadioMaster Boxer CRUSH?

This controller features an enlarged battery compartment designed to accommodate a 2S 6200 mAh battery pack, offering an impressive flight time of up to 20 hours on a single charge. It also supports QC3.0 2.0A MAX fast charging, allowing you to quickly power up and get back to flying.

Is the RadioMaster Boxer CRUSH compatible with external RF modules?

Yes, the RadioMaster Boxer CRUSH comes standard with a JR module bay, making it compatible with a wide range of external RF modules such as FrSKY and Crossfire, in addition to its powerful built-in ExpressLRS module. This versatility allows pilots to choose their preferred long-range or control link system.

Where can I buy the RadioMaster Boxer CRUSH ExpressLRS GREY with reliable delivery?

You can buy the RadioMaster Boxer CRUSH ExpressLRS GREY at HTDRONE. We offer fast shipping within Poland and reliable worldwide delivery via DHL. Check our store for the best deals and order yours today!

What kind of gimbals does the RadioMaster Boxer CRUSH use, and what are their benefits?

The RadioMaster Boxer CRUSH is equipped with AG01 CNC Hall Gimbals. These gimbals are constructed from aluminum, utilize Hall effect sensors for increased durability and precision, and are designed for smooth operation. They provide superior feedback and control compared to traditional potentiometers.
