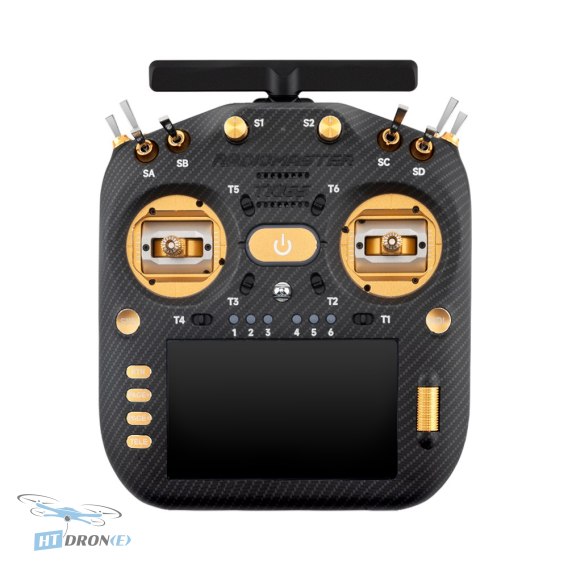

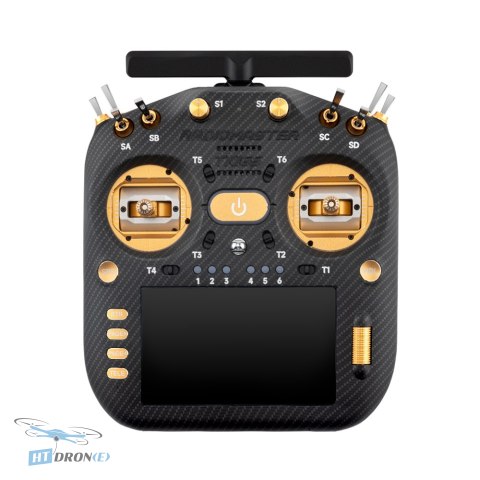

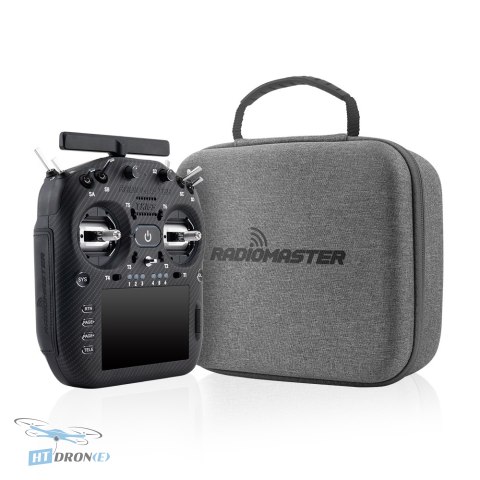

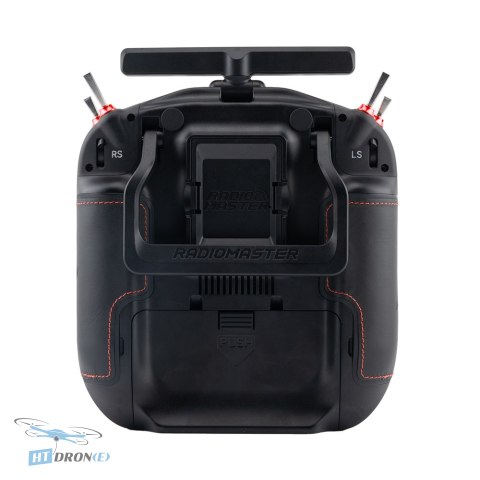

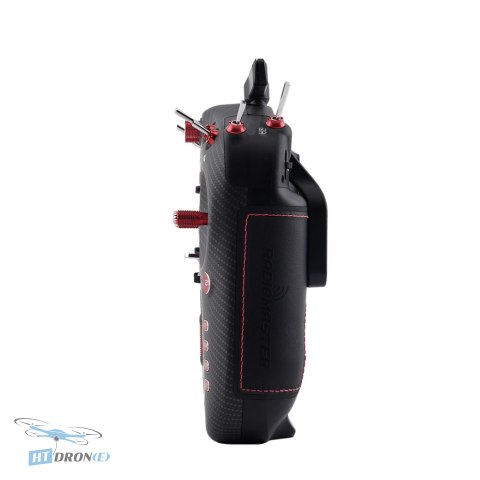

RadioMaster TX16S MK3 MAX Gold 512Mb FPV RC Radio Controller

Introduction

The RadioMaster TX16S MK3 MAX Gold is a flagship radio controller meticulously engineered for discerning FPV pilots and advanced RC enthusiasts. It addresses the need for precision, flexibility, and unwavering reliability in demanding aerial applications. Powered by the EdgeTX operating system and a high-performance STM32 H7 processor, this controller delivers rapid response times, seamless operation, and extensive customization options, making it the ultimate tool for serious hobbyists.

Key advantages

• High-performance STM32 H7 microcontroller for maximum processing power and responsiveness.
• Vibrant 5-inch IPS touchscreen display (800x480 resolution) for clear, detailed visuals.

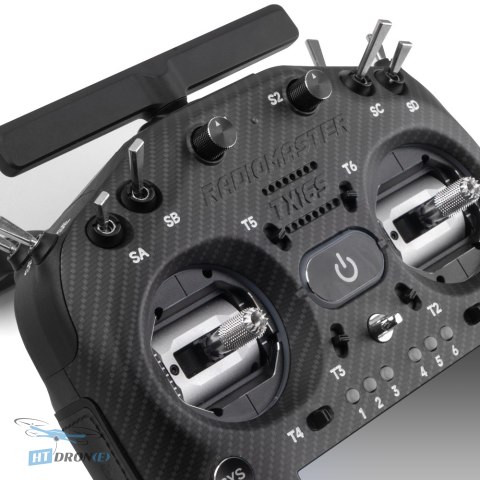

• Precision AG02 CNC Hall sensor gimbals with V4 bearings for smooth and accurate control.
• Integrated dual-band Gemini RF module (2.4GHz and 868/915MHz Sub-G) for versatile protocol support.
• Large 512Mb internal flash memory, expandable via MicroSD card, for extensive model storage and customization.
• Efficient cooling system with quiet fans and an aluminum heatsink ensures optimal performance even during extended use.
• Programmable RGB gimbal light rings controllable via LUA scripts for personalized aesthetics.
• Robust build quality with premium materials for durability and a superior feel.

Technical specifications

• Model: RadioMaster TX16S MK3 MAX Gold
• Internal Storage: 512Mb integrated flash memory
• Display: 5-inch IPS touchscreen, 800 x 480 resolution
• Processor: STM32 H7
• Gimbals: AG02 CNC Hall sensor gimbals with V4 bearings
• RF Module: Dual-band Gemini 2.4GHz and Sub-G 868/915 MHz
• Operating System: EdgeTX (requires version 3.0.0 or higher)
• Channels: Up to 16 channels
• Voltage Range: 6.6-8.4V DC
• Working Current: 1.10A (at max RF output)
• Audio: Digital audio
• Cooling: High-efficiency quiet fans and aluminum heatsink
• MicroSD Card Slot: Yes (card not included)
• Motion Sensor: Built-in
• Antennas: Dual folding
• Dimensions: 200 x 178 x 88 mm
• Weight: 864g (without battery)
• Color: Gold

Applications

The RadioMaster TX16S MK3 MAX Gold is ideally suited for a wide range of applications including FPV racing, freestyle flying, cinematic drone videography, long-range exploration, and general RC model control. Its advanced features and robust design make it a versatile choice for pilots seeking top-tier performance across various disciplines.

Compatibility

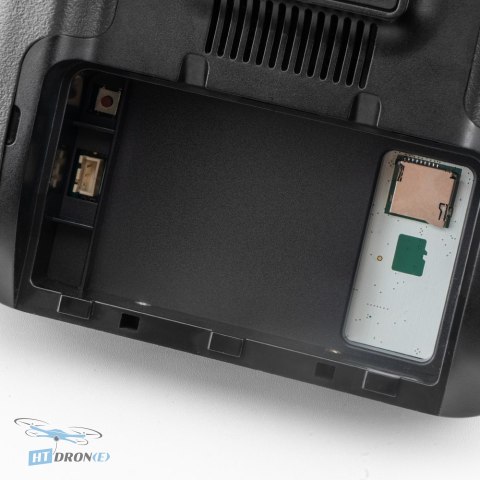

Compatible with EdgeTX firmware version 3.0.0 or higher. Features a JR-style module bay for additional external RF modules. Supports various battery configurations including two 3.7V 18650 Li-Ion cells, a 5000mAh 21700 Li-Ion battery, or a 2S 7.4V 6200mAh LiPo battery (batteries not included). Update method via USB or EdgeTX Companion PC software.

FAQ

What makes the RadioMaster TX16S MK3 MAX Gold ideal for FPV racing?

The TX16S MK3 MAX Gold excels in FPV racing due to its rapid response times powered by the STM32 H7 processor, precise AG02 CNC Hall sensor gimbals for accurate control, and the integrated dual-band ExpressLRS module for reliable, low-latency connectivity. Its robust design ensures it can withstand the rigors of competitive flying.

Can I use this RadioMaster controller for long-range flights?

Absolutely. The TX16S MK3 MAX Gold is well-suited for long-range flights thanks to its powerful dual-band Gemini RF module, supporting both 2.4GHz and 868/915MHz Sub-G frequencies. Combined with compatible receivers and proper setup, it provides the signal strength and reliability needed for extended range operations.

What are the benefits of the 512Mb internal memory?

The 512Mb internal flash memory allows you to store a vast number of model configurations, custom scripts, and voice files directly on the controller. This eliminates the need for a constant MicroSD card connection for essential functions and provides ample space for personalization and expansion.

Where can I buy the RadioMaster TX16S MK3 MAX Gold with fast delivery?

You can buy the RadioMaster TX16S MK3 MAX Gold controller at HTDRONE. We are based in Poland and offer fast shipping within Poland and reliable worldwide delivery via DHL. Check our store for the best deals and order yours today.

Is the RadioMaster TX16S MK3 MAX Gold compatible with external RF modules?

Yes, the TX16S MK3 MAX Gold features a standard JR-style module bay, making it compatible with a wide range of external RF modules. This adds significant flexibility, allowing you to use your preferred protocols or expand your system's capabilities further.
