RadioMaster GX12 Crush Blue (M2) Dual-Band 2.4GHz/900MHz ELRS Radio Controller

Introduction

Introducing the GX12 Crush Edition, an advanced dual-band radio controller designed for the most demanding FPV and UAV pilots. Building on the revolutionary Gemini-XROSSBAND ExpressLRS platform, the GX12 Crush delivers exceptional signal integrity and performance. Available in the striking 'Iceberg Blue' color, this controller not only performs exceptionally but also makes a statement on the flight line. It's engineered for reliability, durability, and personalized control, ensuring you have the best possible connection to your drone.

Key Advantages

• Dual-Band Gemini Xrossband ExpressLRS: Experience superior signal reliability and extended range with simultaneous 2.4GHz and 900MHz transmission capabilities.
• High-Performance Gimbals: Equipped with GX01 CNC aluminum 1000Hz Hall sensor gimbals for precise control and exceptional durability.
• Integrated Foldable Antennas: Features dual-band foldable antennas for convenient transport and storage, protecting them when not in use.
• Modular Design: Customizable with removable switch panels, allowing easy configuration to suit your flying style.
• Durable Nano-Coating: Built to withstand extreme conditions with a robust design and a hydrophobic PCB nano-coating for resistance to temperature and moisture.
• Ample Internal Storage: 512MB of integrated high-speed flash memory means no need for external TF cards for configurations and logs.
• Versatile USB-C Connectivity: Supports smart charging, SIM connectivity, firmware updates, and direct access to internal storage via a single USB-C port.
• Programmable Controls: Features programmable 6-position switches and RGB indicators for visual feedback and customizable flight modes.

Technical Specifications

• Product: Radio GX12 Crush Controller
• Color: Iceberg Blue

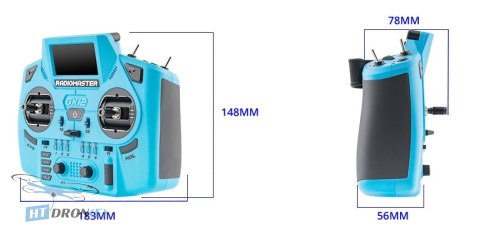

• Dimensions: 183 x 148 x 78 mm
• Weight: 573 g
• Frequency: 2.400 GHz and Sub-G 900 MHz
• Internal RF: ELRS 2.4 GHz / Sub-G 900 MHz
• Supported Protocols: Express-LRS
• Cooling Fan: Yes
• Antenna: Dual Foldable 2.4GHz/Sub-G 900MHz Omni-directional
• Voltage Range: 6.6 - 8.4 V DC
• Current Consumption: 390 mA - 1000 mA (RF output dependent)
• Radio Software: EdgeTX (Transmitter) / ELRS (RF Module)
• Channels: Max 16 channels (receiver dependent)
• Battery: Supports 7.4V 2S LiPo / Two 3.7V 18650 Li-Ion / 5000 mAh 21700 battery (batteries not included)
• Charging: 2S smart balance charging
• Connectivity: USB-C
• Display: 128x64 Monochrome OLED Display
• Gimbal: GX01 1000 Hz, CNC Hall Effect 3D Digital Gimbal with Foldable Sticks
• Gimbal Sticks: M3
• External Module Bay: Compatible with Nano / Crossfire
• Update Method: USB / EdgeTX Companion PC Software
• Memory: 512 MB Integrated Flash Memory

Applications

This radio controller is ideal for a wide range of applications including FPV racing, freestyle flying, long-range exploration, UAV operations, aerial photography, and professional drone tasks. Its robust design and advanced features make it suitable for both hobbyists and professional pilots operating in diverse environmental conditions.

Compatibility

The RadioMaster GX12 Crush is compatible with ExpressLRS receivers and supports EdgeTX firmware. It features a Nano module bay for compatibility with Crossfire modules. The USB-C port ensures easy firmware updates and connectivity. Battery compatibility includes 7.4V 2S LiPo, two 3.7V 18650 Li-Ion cells, or a 5000mAh 21700 battery (not included). M3 gimbal sticks are standard.

FAQ

What makes the RadioMaster GX12 Crush Blue ideal for FPV pilots?

The GX12 Crush Blue offers unparalleled signal reliability thanks to its dual-band 2.4GHz and 900MHz ExpressLRS system. Combined with high-performance 1000Hz CNC aluminum gimbals and a durable design, it provides precise control and consistent performance crucial for FPV flying.

Can I customize the RadioMaster GX12 Crush controller?

Yes, the GX12 Crush features modular switch panels, allowing you to easily customize and swap switches according to your preferences. It also has programmable 6-position switches and RGB indicators for personalized control feedback.

What are the key technical specifications of the RadioMaster GX12 Crush?

Key specs include dual-band 2.4GHz/900MHz ELRS RF, 1000Hz GX01 CNC aluminum gimbals, 512MB internal memory, USB-C connectivity for charging and updates, and a durable nano-coating for environmental resistance.

Where can I buy the RadioMaster GX12 Crush controller and what are the delivery options?

You can buy the RadioMaster GX12 Crush controller at HTDRONE. We offer fast international delivery via DHL for customers worldwide. Check our store for the best deals and order yours today.

What type of batteries does the RadioMaster GX12 Crush use?

The GX12 Crush supports various battery configurations, including a 7.4V 2S LiPo battery, two 3.7V 18650 Li-Ion cells, or a 5000mAh 21700 battery. Please note that batteries are not included with the controller.
