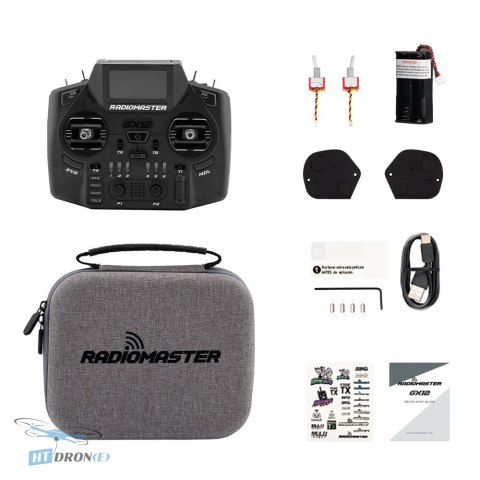

RadioMaster GX12 Dual-Band Gemini-X (M2) Radio Controller for FPV Racing & UAV

Introduction

The RadioMaster GX12 Dual-Band Gemini-X (M2) represents a significant leap forward in high-performance radio controller technology. Engineered for the demanding needs of drone racing, FPV flying, and aerial videography, this controller prioritizes signal strength and unwavering reliability. Whether for professional applications or passionate hobbyist pursuits, the GX12 embodies the pinnacle of drone control excellence. Welcome to the future of radio control - enhance your RC experience with cutting-edge open-source technology and peak performance.

Key Advantages

• Dual-Band Gemini Xrossband ExpressLRS 1W Transmitters: Experience unparalleled range and dependability with the advanced dual-band Gemini Xrossband (Gem-X) ExpressLRS transmission.

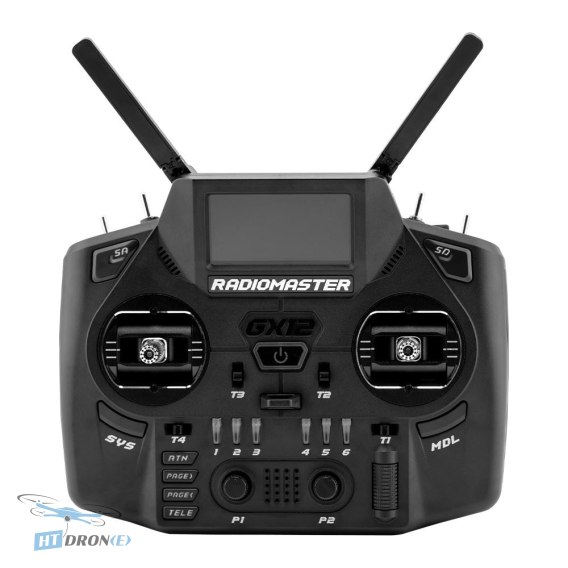

• Integrated Folding Dual-Band Antennas: Features a sleek design with foldable antennas for enhanced portability and storage, supporting both 2.4 GHz and 900 MHz Sub-G frequencies.
• GX01 Gimbals: Fully CNC aluminum gimbals equipped with 3D digital Hall sensors provide exceptional precision, durability, and smooth control.
• 1000 Hz Digital Gimbals with EdgeTX Sync: Achieve superior responsiveness and accuracy with high-frequency digital gimbals synchronized with EdgeTX firmware.
• Folding Gimbal Sticks: Conveniently fold the gimbal sticks for easier storage and transportation.
• Removable Switch Panels: Customize your controller setup with modular switch panels, allowing for effortless reconfiguration of switches to suit your preferences.
• Built for Extreme Conditions: Features a nano PCB coating, thicker plastics, and a hydrophobic coating, making it resistant to temperature fluctuations and moisture for reliable operation anywhere.
• Ample Internal Storage: Comes with 512MB of high-speed internal flash memory, eliminating the need for external TF cards.

Technical Specifications

• Product: Radio GX12
• Color: Black

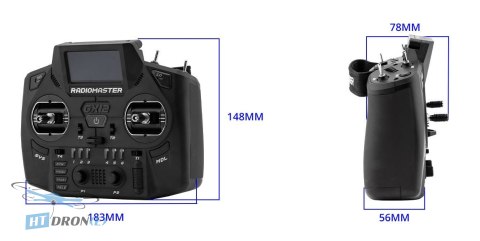

• Dimensions: 183 x 148 x 78 mm
• Weight: 573 g
• Frequency: 2.400 GHz and 900 MHz Sub-G
• Internal RF: ELRS 2.4 GHz / 900 MHz Sub-G
• Supported Protocols: Express-LRS
• Cooling Fan: Yes
• Antenna: Dual folding 2.4 GHz / 900 MHz omnidirectional
• RF Output Power: Dual 1000 mW | Dual-Band XROSSBAND ELRS
• Voltage Range: 6.6 - 8.4 V DC
• Current Consumption: 390 mA - 1000 mA (depending on RF output power)
• Radio Software: EdgeTX (transmitter) / ELRS (RF module)
• Channels: Max 16 channels (receiver dependent)
• Battery Type: 7.4V 2S LiPo / two 3.7V 18650 Li-Ion cells / 21700 5000 mAh battery (batteries not included)
• Charging: 2S smart charging
• Connectivity: USB-C
• Display: Monochrome 128 x 64 OLED display
• Gimbal: GX01 1000 Hz, CNC Hall Effect digital gimbal with folding sticks
• Gimbal Sticks: 3 mm
• External Module Support: Compatible with Nano / Crossfire
• Update Method: USB / EdgeTX Companion PC software
• Memory: 512 MB integrated flash memory

Applications

This controller is ideal for professional FPV pilots, drone racers, UAV operators, aerial cinematographers, and serious RC hobbyists requiring robust and reliable control. Its advanced features make it suitable for high-stakes competitions, complex flight missions, and demanding environmental conditions.

Compatibility

The RadioMaster GX12 is compatible with ExpressLRS receivers and supports external Nano/Crossfire modules. It utilizes a USB-C interface for charging, firmware updates, and data access. The controller operates within a 6.6-8.4V DC voltage range and requires a 7.4V 2S LiPo or equivalent Li-Ion battery configuration (not included). Its EdgeTX firmware ensures broad compatibility with various FPV and UAV systems.

FAQ

What makes the RadioMaster GX12 Dual-Band Gemini-X (M2) suitable for FPV racing?

The GX12 is designed for FPV racing with its powerful 1W dual-band ExpressLRS transmitters, offering exceptional range and signal reliability. The 1000 Hz digital CNC gimbals provide precise control needed for high-speed maneuvers, while the durable construction ensures it can withstand demanding race conditions.

What is the advantage of the dual-band frequency support on the RadioMaster GX12?

The dual-band capability (2.4 GHz and 900 MHz Sub-G) on the Gemini Xrossband ELRS system allows for greater flexibility and improved signal penetration, especially in challenging RF environments. This dual-band operation enhances link stability, crucial for both FPV flying and UAV applications.

Can I customize the controls on the RadioMaster GX12?

Yes, the RadioMaster GX12 offers extensive customization options. It features removable switch panels allowing you to reconfigure switches easily, programmable 6-position switches, and programmable RGB indicators on switches for visual feedback. This allows you to tailor the controller to your specific flying style and needs.

Where can I buy the RadioMaster GX12 Dual-Band Gemini-X (M2) with fast delivery?

You can buy the RadioMaster GX12 Dual-Band Gemini-X (M2) controller at HTDRONE. We offer fast shipping within Poland and reliable delivery to Ukraine via Nova Poshta. For international customers, worldwide shipping is available via DHL, ensuring you receive your order quickly.

What are the key differences between the GX12 and other RadioMaster controllers?

The GX12 stands out with its integrated dual-band 1W Gemini Xrossband ELRS transmitters, offering superior range compared to standard ELRS. It also features fully CNC aluminum GX01 gimbals with digital Hall sensors, a robust nano PCB coating for extreme conditions, and 512MB of internal storage, setting a new benchmark for high-end FPV controllers.
