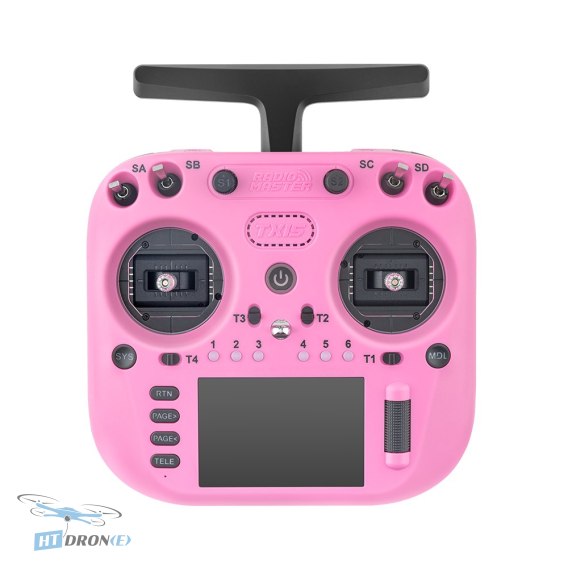

RadioMaster TX15 ExpressLRS Pink FPV RC Radio Controller with Hall Gimbals

Introduction

The RadioMaster TX15 ExpressLRS Pink is a versatile and compact radio controller meticulously engineered for contemporary FPV and RC pilots who demand unwavering reliability and exceptional flexibility. This transmitter leverages the powerful ExpressLRS protocol, delivering ultra-low latency and robust long-range performance, ensuring a stable connection even in challenging environments. Its ergonomic design, coupled with a clear color touchscreen display and precise gimbals, makes it incredibly comfortable and intuitive to use, even during prolonged flight sessions. With support for multiple model profiles, open-source software, and external module compatibility, the TX15 is a future-proof choice ready to adapt to your unique flying style. It's the perfect radio for both novice pilots looking to start their journey and seasoned professionals seeking a high-performance radio link in a sleek, portable package.

Key Advantages

• Ultra-Fast Performance: Powered by an STM32 H7 chipset for the fastest radio response available.
• Vibrant Touchscreen: Features a 3.5-inch IPS touchscreen (480x320 resolution) for crisp visuals and intuitive navigation.
• Precision Gimbals: Equipped with V5.0 Hall sensor gimbals for smooth, accurate control.
• Integrated ExpressLRS: Built-in 2.4 GHz / Sub-G 868/915 MHz ExpressLRS ensures reliable, long-distance control.
• Advanced Cooling: High-efficiency silent fans and an aluminum heatsink keep the radio cool under load.
• Foldable Antenna: A compact, foldable antenna design for easy storage without signal compromise.
• Built-in Gyroscope: Enables advanced features like tilt-to-steer or camera control.
• Expandable Storage: 4GB internal flash memory with MicroSD card support for extensive model memory and logging.

Technical Specifications

• Product: TX15 Radio Controller
• Dimensions: 178 x 168 x 81 mm
• Weight: 605 g (without battery)
• Frequency: 2.400 GHz OR Sub-G 868/915 MHz
• Internal RF: ELRS 2.4 GHz / Sub-G 868/915 MHz
• Supported Protocols: Express-LRS
• Cooling Fan: Yes
• Transmitter Module: Built-in ELRS
• Internal Flash Memory: 4 GB
• Built-in Microphone: Yes (expandable)
• Built-in Gyroscope: Yes (ICM-42607-C)
• MicroSD Card Support: Up to 32 GB/FAT32 (disables internal flash)
• Antenna Gain: 2 dB (adjustable transmit power)
• Current Draw: 875 mA at max output power
• Voltage Range: 6.6-8.4 V DC
• Radio Software: EdgeTX
• Module Software: ExpressLRS
• Channels: Max 16 channels (receiver dependent)
• Display: 3.5-inch IPS Touchscreen (480 x 320 resolution)
• Battery Compatibility: 2S Lipo 7.4V / 2x 3.7V 18650 / 21700 5000mAh (batteries not included)
• Connectivity: USB-C
• Gimbals: V5.0 Hall Sensor Gimbals (Standard)
• Gimbal Sticks: M4
• Update Method: USB-C (UF2)
• Module Bay: JR compatible module bay
• Color: Pink

Applications

This controller is ideal for a wide range of applications including FPV racing, freestyle flying, long-range exploration, drone cinematography, and general RC model control. Its advanced features and reliable connection make it suitable for pilots who need precise command over their aircraft in various conditions.

Compatibility

The RadioMaster TX15 is compatible with ExpressLRS receivers. It supports external modules via its JR-compatible module bay. The controller can be updated via USB-C using the UF2 bootloader. It requires a 2S Lipo, two 18650 Li-ion, or a 21700 Li-ion battery (not included).

FAQ

What makes the RadioMaster TX15 ExpressLRS Pink suitable for long-range flights?

The TX15 utilizes the ExpressLRS protocol, offering ultra-low latency and robust signal performance at extended distances. Combined with its adjustable transmit power and efficient cooling system, it ensures a reliable connection for your long-range FPV adventures.

Can beginners use the RadioMaster TX15 ExpressLRS Pink?

Yes, while it offers advanced features for experienced pilots, its intuitive touchscreen interface, ergonomic design, and Hall sensor gimbals make it accessible and comfortable for beginners to learn and grow with.

What type of gimbals does the RadioMaster TX15 feature?

The RadioMaster TX15 is equipped with V5.0 Hall sensor gimbals. These provide exceptional precision, smoothness, and durability compared to traditional potentiometers, offering a superior control experience for critical maneuvers.

What batteries are compatible with the RadioMaster TX15?

The RadioMaster TX15 is compatible with a 2S 7.4V LiPo battery, two 3.7V 18650 Li-ion batteries, or a single 21700 Li-ion battery with a capacity of up to 5000mAh. Please note that batteries are sold separately.
