RadioMaster TX15 ExpressLRS Yellow FPV RC Radio Controller with Hall Gimbals

Introduction

The RadioMaster TX15 ExpressLRS Yellow is a versatile and compact radio controller engineered for contemporary FPV and RC pilots who demand unwavering reliability and extensive flexibility. It integrates the advanced ExpressLRS protocol, delivering ultra-low latency and robust performance for extended range flights. The TX15 boasts an ergonomic design, a clear, responsive color touchscreen display, smooth-operating gimbals, and a highly configurable interface, ensuring comfortable and intuitive operation even during prolonged flying sessions. It's an ideal choice for both novice and professional pilots seeking a high-performance radio link in a sleek, portable package.

Key Advantages

• Ultra-Fast Performance: Powered by an STM32 H7 chipset for the fastest radio response yet.
• Vibrant Touchscreen Display: Features a 3.5-inch IPS touchscreen (480x320 resolution) with vivid colors and sharp details for easy navigation.
• Precision Hall Sensor Gimbals: Equipped with V5.0 Hall sensor gimbals for smooth and accurate control input.
• Integrated ExpressLRS: Built-in 2.4 GHz / Sub-G 868/915 MHz ExpressLRS module provides reliable long-range connectivity.
• Efficient Cooling System: Utilizes quiet, high-performance fans and an aluminum heatsink to keep the radio cool during intense use.
• Foldable Antenna: Designed for compact storage and easy transport without compromising signal strength.
• Built-in Gyroscope: Enables intuitive control for functions like camera panning/tilting or triggering events by simply tilting the radio.
• Expandable Storage: Includes 4GB of internal flash memory with support for external MicroSD cards for model configurations and data logging.

Technical Specifications

• Product: TX15 Radio Controller
• Dimensions: 178 x 168 x 81 mm
• Weight: 605 g (without battery)
• Frequency: 2.400 GHz OR Sub-G 868/915 MHz
• Internal RF: ELRS 2.4 GHz / Sub-G 868/915 MHz
• Supported Protocols: Express-LRS
• Cooling Fan: Yes
• Transmitter Module: Built-in ELRS
• Internal Flash Memory: 4 GB
• Microphone: Yes (future expansion)
• Gyroscope: Yes (ICM-42607-C)
• MicroSD Card Support: Up to 32 GB/FAT32 (inserting MicroSD disables internal flash)
• Antenna Gain: 2 dB (adjustable transmit power)
• Current Draw: 875 mA at maximum output power
• Voltage Range: 6.6-8.4 V DC
• Radio Software: EdgeTX
• Module Software: ExpressLRS
• Channels: Max 16 channels (receiver dependent)
• Display: 3.5-inch IPS Touchscreen (480 x 320 resolution)

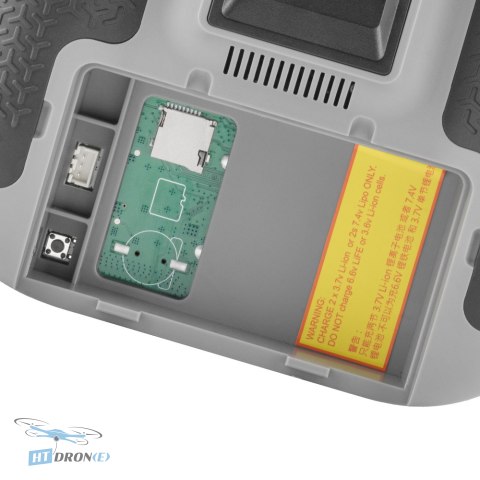

• Battery Compatibility: 2S 7.4V LiPo / 2x 3.7V 18650 Li-Ion / 5000 mAh 21700 battery (batteries not included)
• Connectivity: USB-C
• Gimbals: V5.0 Hall Sensor Gimbals (Standard)
• Gimbal Sticks: M4
• Update Method: USB-C (UF2)
• Module Bay: JR compatible module bay for additional modules
• Color: Yellow

Applications

This RadioMaster TX15 controller is perfectly suited for a wide range of applications including FPV racing drones, freestyle flying, long-range FPV exploration, UAV operations, RC aircraft, and various other remote-controlled hobbyist projects requiring precise and reliable control.

Compatibility

The TX15 features a standard JR module bay for compatibility with external RF modules. It supports various battery types including 2S LiPo, 18650 Li-Ion, and 21700 Li-Ion batteries (not included). Connectivity is handled via USB-C for charging and firmware updates.

FAQ

What makes the RadioMaster TX15 ExpressLRS Yellow ideal for FPV pilots?

The RadioMaster TX15 ExpressLRS Yellow is ideal for FPV pilots due to its integrated ExpressLRS protocol, offering ultra-low latency and robust long-range performance. Combined with precise V5.0 Hall sensor gimbals and an intuitive touchscreen interface, it provides superior control for dynamic flying.

What are the key technical features of the RadioMaster TX15?

Key features include a powerful STM32 H7 chipset, a 3.5-inch IPS touchscreen display, V5.0 Hall sensor gimbals, built-in ExpressLRS 2.4GHz/Sub-G 868/915 MHz, efficient cooling, a foldable antenna, and a built-in gyroscope for enhanced control options.

Can I expand the storage on the RadioMaster TX15?

Yes, the RadioMaster TX15 comes with 4GB of internal flash memory and supports external MicroSD cards up to 32GB (FAT32 format). Inserting a MicroSD card will disable the internal flash storage.

Where can I buy the RadioMaster TX15 ExpressLRS Yellow with reliable delivery?

You can buy the RadioMaster TX15 ExpressLRS Yellow directly from HTDRONE. We offer fast and reliable international shipping via DHL for customers worldwide, ensuring you receive your order promptly.

What type of batteries are compatible with the RadioMaster TX15?

The RadioMaster TX15 is compatible with a 2S 7.4V LiPo battery, two 3.7V 18650 Li-Ion batteries, or a 5000 mAh 21700 Li-Ion battery. Please note that batteries are not included with the controller.
