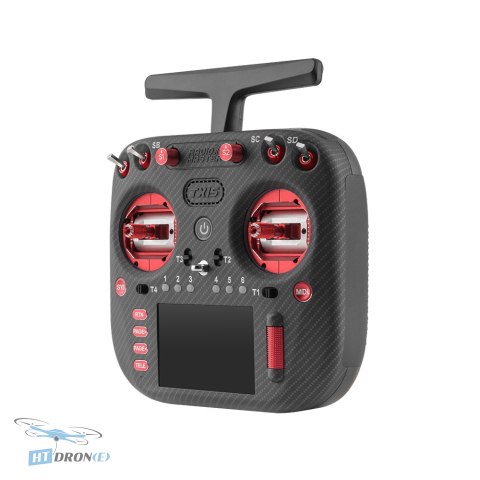

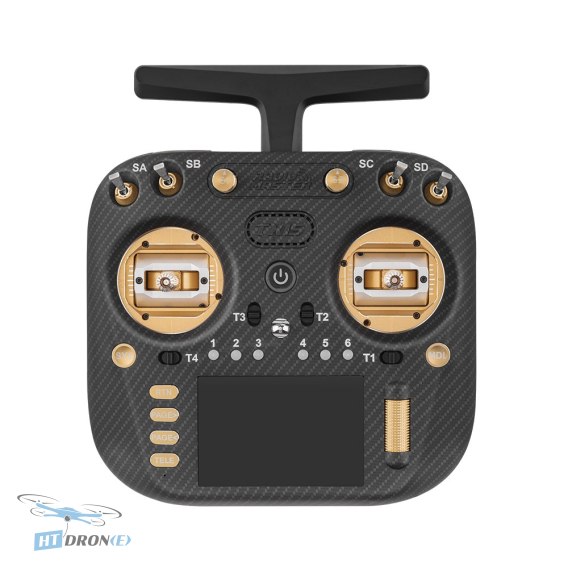

RadioMaster TX15 Max ExpressLRS Gold FPV Radio Controller with Touchscreen - Best for Advanced Pilots

Introduction

The RadioMaster TX15 MAX ExpressLRS Gold is a high-performance, compact radio controller engineered for discerning pilots who demand top-tier functionality in a portable form factor. Powered by a rapid STM32 H7 processor, it delivers exceptionally smooth EdgeTX operation, swift model switching, and responsive script execution. The integrated dual-band ExpressLRS system (2.4 GHz and 868/915 MHz) provides ultra-low latency control and robust connection reliability, even in challenging RF environments. Its premium gold finish, bright 3.5-inch IPS touchscreen, high-quality AG02 aluminum CNC gimbals, and customizable RGB lighting offer a professional and luxurious control experience.

Key advantages

• Ultra-Fast Performance: Driven by the STM32 H7 chipset for the quickest radio controller response.
• Vivid Touchscreen Display: Features a 3.5-inch IPS touchscreen (480x320 resolution) with crisp details and vibrant colors.

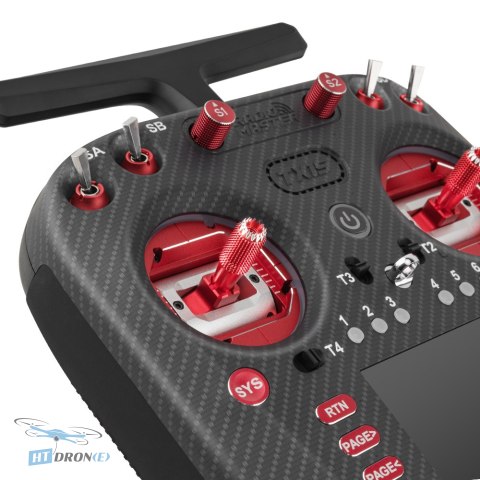

• Precision AG02 Gimbals: Equipped with high-quality CNC aluminum AG02 gimbals for enhanced smoothness and durability.
• Integrated ExpressLRS: Built-in 2.4 GHz / 868/915 MHz ExpressLRS module ensures stable, long-range control.
• Advanced Cooling System: Efficient quiet fans and an aluminum heatsink keep the radio cool, even during intense use.
• Customizable RGB Lighting: Integrated RGB LEDs around the gimbals offer customizable lighting effects controllable via LUA scripts.
• Enhanced User Experience: Includes a built-in microphone for future expansion and a built-in gyroscope for motion-based controls.
• Ample Storage: Comes with 4GB internal flash memory and supports external MicroSD cards for extended storage.

Technical specifications

• Product: TX15 Max Radio Controller
• Dimensions: 178 x 168 x 81 mm
• Weight: 672 g (without battery)
• Frequency: 2.400 GHz OR Sub-G 868/915 MHz
• Internal RF Module: ELRS 2.4 GHz / Sub-G 68/915 MHz
• Supported Protocols: Express-LRS
• Cooling Fan: Yes
• Transmitter Module: Integrated ELRS
• Internal Flash Memory: 4 GB
• Built-in Microphone: Yes (for future expansion)
• Built-in Gyroscope: Yes (ICM-42607-C)
• MicroSD Card Support: Up to 32 GB/FAT32 (Note: Inserting MicroSD disables internal flash)
• Antenna Gain: 2 dB (Adjustable transmit power)
• Current Draw: 875 mA @ Max Power Output
• Voltage Range: 6.6-8.4 V DC
• Radio Software: EdgeTX
• Module Software: ExpressLRS
• Channels: Max 16 channels (receiver dependent)
• Display: 3.5-inch IPS Touchscreen (480 x 320 resolution)

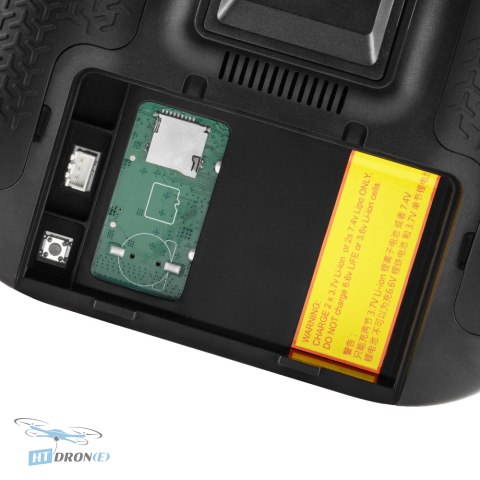

• Battery Compatibility: 2-cell 7.4V LiPo / two 3.7V 18650 Li-ion / 5000 mAh 21700 battery (batteries not included)
• Connectivity: USB-C
• Gimbals: AG02 CNC Hall Sensor Gimbals
• Gimbal Sticks: M4
• Update Method: USB-C (UF2)
• Module Bay: JR module bay compatible
• Color: Gold

Applications

This radio controller is ideal for a wide range of applications including FPV racing, freestyle flying, long-range exploration, drone cinematography, UAV operations, and general RC model control where precision and reliability are paramount.

Compatibility

The RadioMaster TX15 MAX is compatible with ExpressLRS receivers and supports up to 16 channels. It operates on a 6.6-8.4 V DC voltage range and utilizes a USB-C interface for charging and firmware updates. It features a standard JR module bay for expanded compatibility with external RF modules.

FAQ

What makes the RadioMaster TX15 Max Gold ideal for advanced FPV pilots?

The RadioMaster TX15 Max Gold is designed for advanced pilots due to its powerful STM32 H7 processor for smooth operation, integrated dual-band ExpressLRS for reliable low-latency control, high-quality AG02 CNC gimbals for precision, and a vibrant 3.5-inch touchscreen for intuitive navigation. The premium gold finish adds a touch of exclusivity.

Can I use the RadioMaster TX15 Max Gold for long-range FPV flights?

Yes, the integrated dual-band ExpressLRS system, supporting both 2.4 GHz and 868/915 MHz frequencies, makes the TX15 Max Gold excellent for long-range FPV flights, providing a stable and reliable connection even at extended distances.

What batteries are compatible with the RadioMaster TX15 Max Gold?

The RadioMaster TX15 Max Gold is compatible with a 2-cell 7.4V LiPo battery, two 3.7V 18650 Li-ion batteries, or a 5000 mAh 21700 battery. Please note that batteries are not included and must be purchased separately.

Does the RadioMaster TX15 Max Gold come with a built-in gyroscope?

Yes, the TX15 Max Gold features a built-in gyroscope (ICM-42607-C). This allows for advanced control functions, such as using radio tilt for camera movements or triggering actions based on motion.

Where can I buy the RadioMaster TX15 Max Gold with reliable delivery?

You can buy the RadioMaster TX15 Max Gold directly from HTDRONE. We offer fast and reliable international shipping via DHL for customers worldwide. Check our store for the best deals on FPV equipment.
