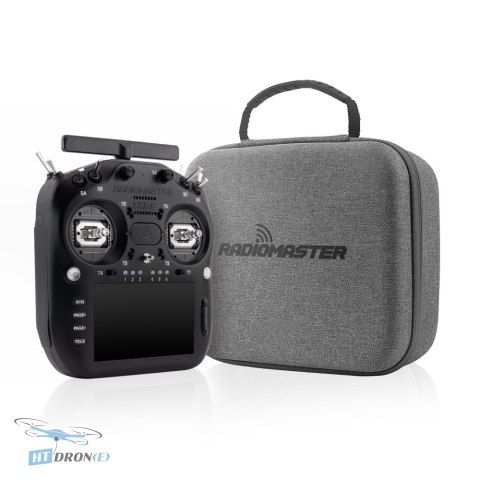

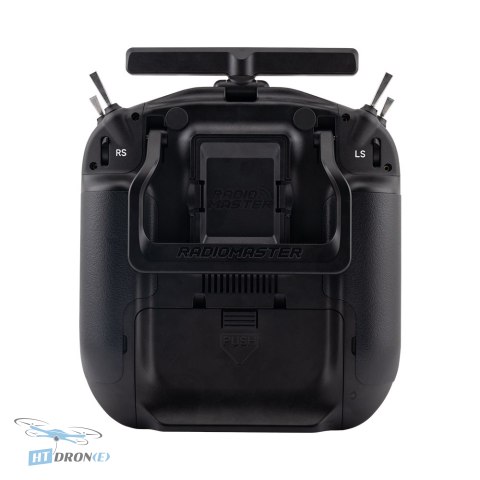

RadioMaster TX16S MK3 Charcoal Radio Controller - 16 Channel, Dual-Band RF, Hall Sensor Gimbals

Introduction

The RadioMaster TX16S MK3 Charcoal is a top-tier, versatile radio transmitter engineered for professional FPV pilots who demand ultimate precision, unwavering reliability, and exceptional flexibility. Powered by a high-performance STM32 H7 microcontroller and running the advanced EdgeTX firmware, this transmitter is built to handle the most demanding flight scenarios. Its dual-band ExpressLRS RF module offers robust performance across both 2.4 GHz and Sub-G 868/915 MHz frequencies, ensuring long-range capability and minimal latency. Ideal for serious RC enthusiasts and professional drone operators, the TX16S MK3 delivers an unmatched control experience.

Key advantages

• High-performance STM32 H7 MCU for maximum processing power.
• Large 5-inch IPS touchscreen display (800x480) for clear visuals and intuitive navigation.
• Ultra-smooth V6 Hall sensor gimbals with four bearings for precise control.
• Integrated dual-band Gemini ExpressLRS RF module (2.4GHz & 868/915MHz) for superior range and performance.
• Efficient cooling system with quiet, high-performance fans and an aluminum heatsink for sustained operation.
• Support for up to 16 channels, offering extensive customization for complex aircraft.
• Convenient 4GB internal flash storage and MicroSD card support for model memory and firmware updates.
• Robust construction and user-friendly interface designed for demanding flight sessions.

Technical specifications

• Color: Charcoal
• Operating Voltage: 6.6-8.4V DC
• Working Current: 1.10A (at max RF power output)
• Radio Software: EdgeTX (3.0.0 or higher required)
• Internal RF Module: ExpressLRS 2 x LR1121
• Frequency: ISM 2.4GHz and Sub-G 868/915MHz
• Number of Channels: Up to 16 channels

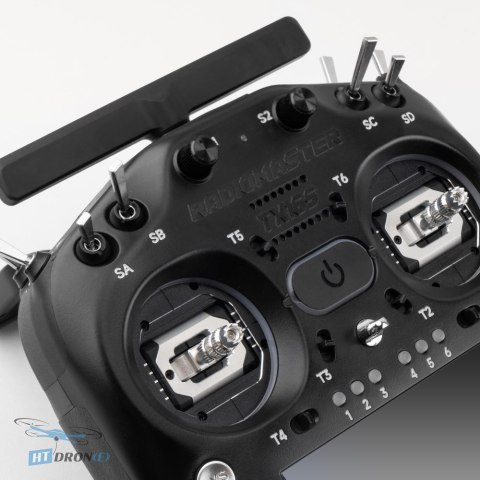

• Gimbal: V6 Hall Sensor Gimbals (standard)

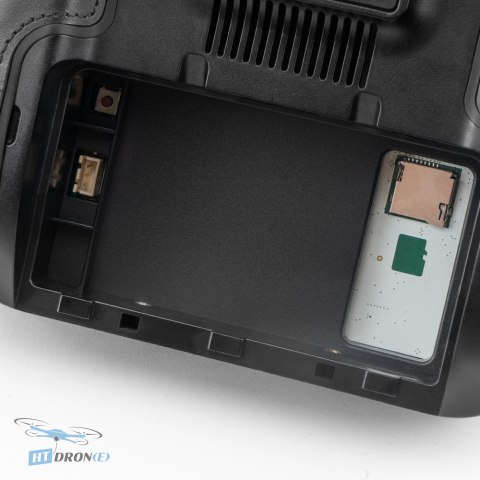

• MicroSD Card Slot: Yes (card not included)
• Internal Storage: 4GB integrated flash memory
• Display: 5-inch IPS Touchscreen (800 x 480 resolution)
• Battery: Supports 2x 3.7V 18650 Li-Ion / 21700 5000mAh Li-Ion / 2S 7.4V 6200mAh LiPo (batteries not included)
• Update Method: USB / EdgeTX Companion PC software
• Module Bay: JR compatible module bay for additional modules

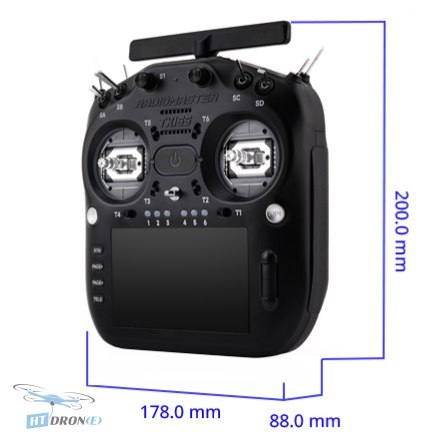

• Dimensions: 200 x 178 x 88 mm
• Weight: 813 g (without battery)

Applications

The RadioMaster TX16S MK3 Charcoal is perfectly suited for a wide range of applications including professional FPV racing, freestyle piloting, long-range drone exploration, UAV operations, aerial photography, and advanced RC model control. Its versatility makes it an excellent choice for fixed-wing aircraft, multi-rotors, and helicopters requiring precise command input.

Compatibility

The TX16S MK3 is compatible with the EdgeTX firmware (version 3.0.0 or higher). It features a standard JR module bay, allowing for the integration of various external RF modules. It supports multiple battery configurations, including 2x 3.7V 18650 Li-Ion, a 21700 Li-Ion, or a 2S 7.4V LiPo battery (batteries sold separately). The USB-C port allows for easy firmware updates and connection to PC software.

FAQ

What makes the RadioMaster TX16S MK3 Charcoal ideal for professional FPV pilots?

The TX16S MK3 Charcoal offers professional pilots exceptional precision and reliability with its V6 Hall sensor gimbals and dual-band ExpressLRS RF system. Its robust build, 16-channel capability, and intuitive 5-inch touchscreen provide the performance and control needed for demanding aerial tasks.

What is the range and latency like with the dual-band ExpressLRS module on the TX16S MK3?

The integrated dual-band Gemini ExpressLRS module operates on both 2.4 GHz and Sub-G 868/915 MHz frequencies. This configuration provides significantly extended range and very low latency, crucial for high-speed FPV flying and complex drone operations.

Does the RadioMaster TX16S MK3 Charcoal come with batteries?

No, batteries are not included with the RadioMaster TX16S MK3 Charcoal. It supports various battery options, including 2x 3.7V 18650 Li-Ion, a 21700 Li-Ion, or a 2S 7.4V LiPo battery, which must be purchased separately.

Where can I buy the RadioMaster TX16S MK3 Charcoal with fast delivery?

You can buy the RadioMaster TX16S MK3 Charcoal at HTDRONE, our specialized FPV parts store based in Poland. We offer fast and reliable international shipping via DHL, ensuring you receive your order promptly.

What are the main advantages of the V6 Hall sensor gimbals in the TX16S MK3?

The V6 Hall sensor gimbals offer superior smoothness, durability, and precision compared to traditional gimbals. Featuring four bearings, they provide incredibly accurate stick response, which is essential for fine control in FPV and other RC applications.
