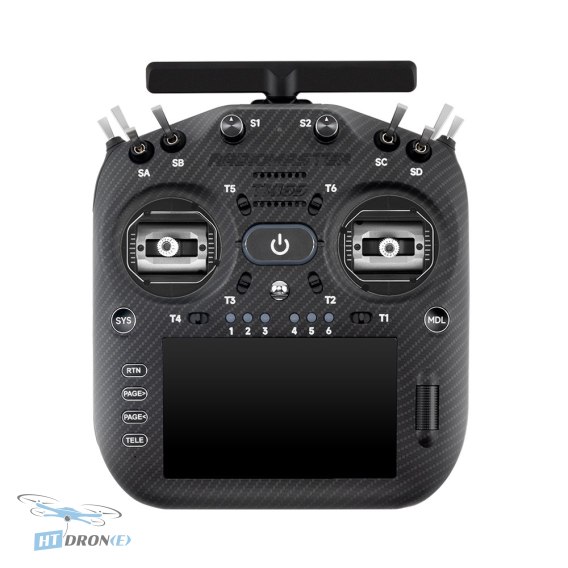

RadioMaster TX16S MK3 MAX Black Dual Band ExpressLRS Radio Controller

Introduction

The RadioMaster TX16S MK3 MAX Black represents the pinnacle of RC transmitter technology, meticulously designed for discerning FPV and advanced RC enthusiasts. It addresses the need for unparalleled precision, extensive customization, and unwavering reliability in demanding flight scenarios. Powered by the advanced EdgeTX operating system and a robust STM32 H7 processor, this controller delivers lightning-fast response times, seamless operation, and a deeply customizable user experience. Its premium construction, including CNC metal gimbals and a vibrant touchscreen, ensures it excels in freestyle, racing, cinematic, and long-range missions.

Key Advantages

• High-Performance Processing: Equipped with an STM32 H7 microcontroller for maximum computational power and responsiveness.
• Vivid Touchscreen Display: Features a large 5-inch IPS touchscreen with 800x480 resolution for crisp visuals and intuitive navigation.

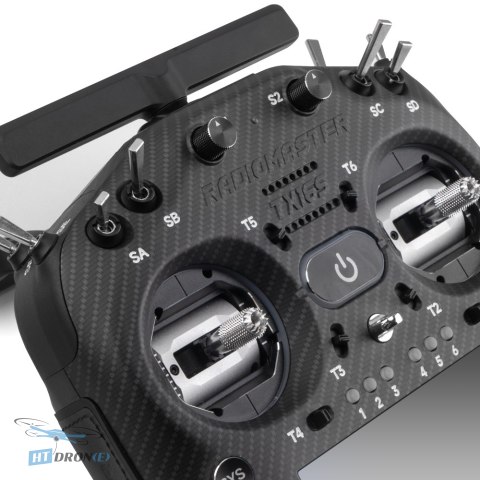

• Precision Hall Sensor Gimbals: Utilizes V6 Hall sensor gimbals with four bearings, compatible with AG02/AG01 CNC Aluminum upgrades for ultimate precision.
• Customizable Gimbal Lighting: Programmable RGB gimbal LED rings, controllable via LUA scripts for personalized status indication.
• Integrated Dual-Band RF: Built-in Gemini 2.4 GHz and Sub-G 868/915 MHz internal RF module for versatile long-range and standard operation.
• Efficient Cooling System: Incorporates quiet, high-performance fans and an aluminum heatsink to maintain optimal operating temperature.
• Ample Storage: Comes with 4GB of internal flash memory and supports external MicroSD cards for extensive model memory and firmware updates.
• Ergonomic Design: Features removable shoulder switch panels and a comfortable grip for extended use.

Technical Specifications

• Color: Black
• Operating Voltage: 6.6-8.4V DC
• Working Current: 1.10A (at max RF output power)
• Radio Software: EdgeTX (version 3.0.0 or higher required)
• Internal RF Module: ExpressLRS 2 x LR1121
• Frequency: ISM 2.4 GHz and Sub-G 868/915 MHz
• Number of Channels: Up to 16 channels
• Gimbals: AG02 CNC Hall Sensor Gimbals

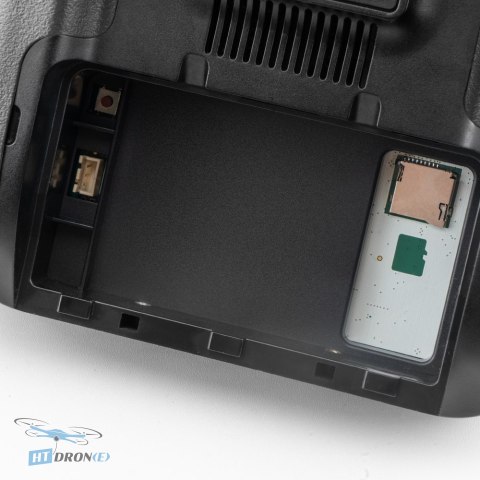

• MicroSD Card Slot: Yes (card not included)
• Internal Memory: Integrated 4GB Flash Memory
• Display: 5-inch IPS Touchscreen (800 x 480 resolution)
• Battery Compatibility: Two 3.7V 18650 Li-Ion batteries / 5000 mAh 21700 Li-Ion battery / 2S 7.4V 6200 mAh Lipo battery (batteries not included)
• Update Method: USB / EdgeTX Companion PC software
• Module Bay: JR compatible module bay for additional modules
• Dimensions: 200 x 178 x 88 mm
• Weight: 864 g (without battery)

Applications

The RadioMaster TX16S MK3 MAX Black is perfectly suited for a wide range of applications including FPV racing, freestyle acrobatics, professional aerial photography and videography, long-range exploration, drone inspections, and general RC model control. Its versatility makes it the best choice for pilots who engage in multiple disciplines.

Compatibility

This controller is compatible with the EdgeTX firmware (version 3.0.0 or higher) and features a standard JR module bay for external RF modules. It supports various battery configurations including 2x 18650 Li-Ion, a 21700 Li-Ion, or a 2S 7.4V Lipo battery, offering flexibility in power choices. Ensure your selected batteries are compatible with the voltage range of 6.6-8.4V DC.

FAQ

What makes the RadioMaster TX16S MK3 MAX Black ideal for FPV racing and freestyle?

The TX16S MK3 MAX Black offers exceptional precision with its AG02 CNC Hall sensor gimbals and rapid response thanks to the STM32 H7 processor and EdgeTX. Its integrated dual-band ExpressLRS ensures reliable control, crucial for high-speed FPV applications. You can check the best prices and order this advanced controller at HTDRONE.

Does the RadioMaster TX16S MK3 MAX Black come with batteries?

No, batteries and a MicroSD card are not included with the RadioMaster TX16S MK3 MAX Black. It supports various battery options like 2x 18650 Li-Ion, a 21700 Li-Ion, or a 2S 7.4V 6200 mAh Lipo battery. You can purchase compatible batteries separately to complete your setup.

What is the benefit of the dual-band ExpressLRS module in the TX16S MK3 MAX?

The integrated dual-band Gemini 2.4 GHz and Sub-G 868/915 MHz ExpressLRS module provides enhanced range, reduced latency, and better signal penetration compared to single-band systems. This makes the TX16S MK3 MAX Black a superior choice for long-range FPV and challenging RF environments.

Where can I buy the RadioMaster TX16S MK3 MAX Black with reliable delivery?

You can buy the RadioMaster TX16S MK3 MAX Black at HTDRONE. We offer fast and reliable shipping within Poland and worldwide via DHL, ensuring you receive your high-performance controller quickly.

What are the key features of the touchscreen on the RadioMaster TX16S MK3 MAX Black?

The TX16S MK3 MAX Black features a large 5-inch IPS touchscreen with a sharp 800x480 resolution. It provides vibrant colors and clear details, making navigation through menus, model settings, and LUA scripts intuitive and easy, even in bright sunlight.
