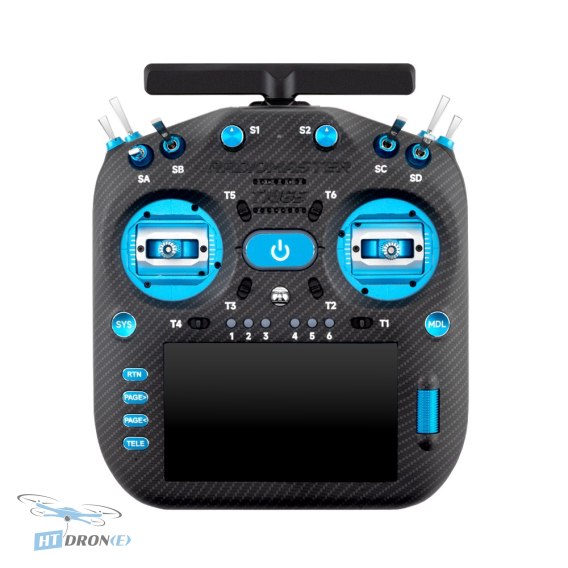

RadioMaster TX16S MK3 MAX Blue Dual-Band ExpressLRS Radio Controller

Introduction

The RadioMaster TX16S MK3 MAX Blue is the ultimate radio controller for discerning FPV pilots and advanced RC enthusiasts. Engineered for precision, flexibility, and long-lasting reliability, it integrates the powerful EdgeTX operating system with a high-performance STM32 H7 processor for rapid response and extensive customization. Its premium CNC metal gimbals, large touchscreen display, and integrated dual-band ExpressLRS support make it the ideal choice for freestyle, racing, cinematic, and long-range applications.

Key Advantages

• High-Performance Microcontroller: Powered by the STM32 H7 chip for maximum processing power and smooth operation.
• Responsive Hall Sensor Gimbals: Features V4 Hall sensor gimbals with CNC aluminium compatibility for exceptional precision and durability.
• Large Touchscreen Display: A 5-inch IPS touchscreen (800x480) provides vivid colors and sharp details for easy navigation.
• Dual-Band ExpressLRS: Integrated 2.4GHz and Sub-G 868/915MHz RF module offers flexible and reliable long-range connectivity.
• Efficient Cooling System: Quiet, high-performance fans and an aluminium heatsink ensure optimal operating temperature even during demanding flights.
• Robust Build Quality: Premium materials and construction, including CNC metal gimbals, ensure longevity and a satisfying feel.
• Ample Storage: 4GB internal flash memory plus MicroSD card support for model configurations and voice packs.
• Versatile Connectivity: USB-C for charging and firmware updates, plus a JR module bay for expandability.

Technical Specifications

• Color: Blue
• Voltage Range: 6.6-8.4V DC
• Operating Current: 1.10A (at max RF power output)
• Radio Software: EdgeTX (Version 3.0.0 or higher required)
• Internal RF Module: Dual-Band Gemini 2.4GHz & Sub-G 868/915MHz
• Frequency: ISM 2.4GHz & Sub-G 868/915MHz
• Number of Channels: Up to 16 Channels
• Gimbal: AG02 Hall Sensor CNC Gimbals
• MicroSD Card Slot: Yes (card not included)
• Internal Memory: Integrated 4GB Flash Memory
• Display: 5-inch IPS Touchscreen (800 x 480 resolution)

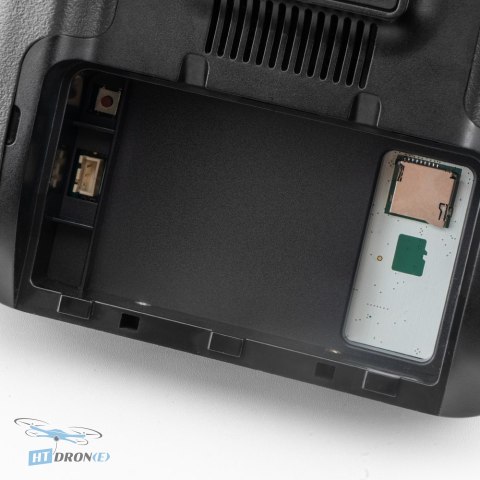

• Battery Compatibility: Two 3.7V 18650 Li-Ion / 5000mAh 21700 Li-Ion / 2S 7.4V 6200mAh LiPo (batteries not included)
• Update Method: USB / EdgeTX Companion PC Software
• Module Bay: Standard JR module bay
• Dimensions: 200 x 178 x 88 mm
• Weight: 864 g (without battery)

Applications

The RadioMaster TX16S MK3 MAX Blue is perfect for a wide range of applications including FPV freestyle, competitive FPV racing, aerial photography and videography, long-range exploration, and general RC model control. Its advanced features and robust design cater to pilots who need reliable performance across diverse flying scenarios.

Compatibility

This radio controller is compatible with the EdgeTX operating system (version 3.0.0 or higher). It supports a wide range of battery types including 18650 Li-Ion, 21700 Li-Ion, and 2S LiPo batteries. The standard JR module bay allows for compatibility with various external RF modules. Please note that batteries and a MicroSD card are sold separately.

FAQ

What is the RadioMaster TX16S MK3 MAX Blue best suited for?

The RadioMaster TX16S MK3 MAX Blue is ideal for serious FPV pilots and advanced RC users involved in freestyle flying, racing, cinematic aerial videography, and long-range exploration. Its precision gimbals, powerful processor, and flexible firmware support make it a top choice for demanding applications.

What RF protocols does the RadioMaster TX16S MK3 MAX Blue support?

This controller features an integrated dual-band Gemini RF module supporting both 2.4GHz and Sub-G 868/915MHz frequencies. It has native support for ExpressLRS (ELRS), offering reliable and high-performance connectivity for various receivers.

Does the RadioMaster TX16S MK3 MAX Blue come with batteries?

No, batteries are not included with the RadioMaster TX16S MK3 MAX Blue. It is compatible with two 3.7V 18650 Li-Ion cells, a single 5000mAh 21700 Li-Ion cell, or a 2S 7.4V 6200mAh LiPo battery, which must be purchased separately.

Where can I buy the RadioMaster TX16S MK3 MAX Blue with reliable delivery?

You can buy the RadioMaster TX16S MK3 MAX Blue at HTDRONE, our specialized FPV and UAV drone parts store based in Poland. We offer fast and reliable worldwide shipping via DHL for international orders.

What are the key advantages of the Hall sensor gimbals on this controller?

The AG02 Hall sensor CNC gimbals offer superior precision, smoother operation, and greater durability compared to traditional potentiometers. They are less prone to wear and tear, ensuring consistent performance over extended use.
