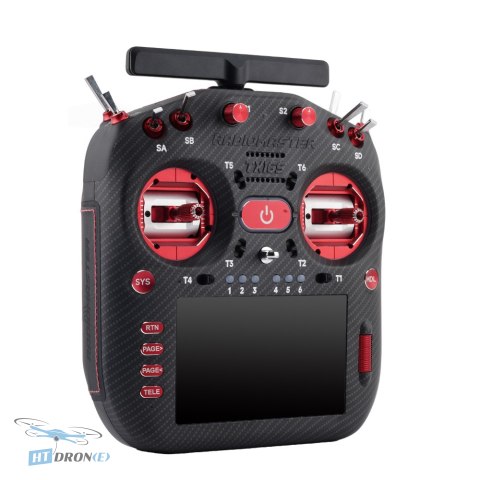

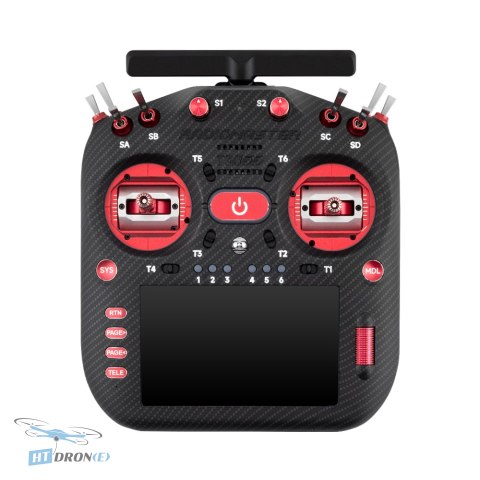

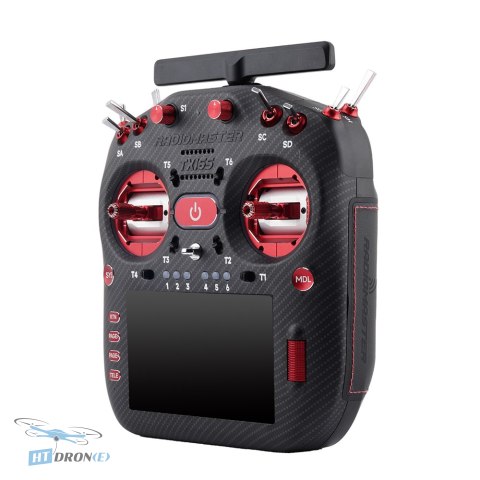

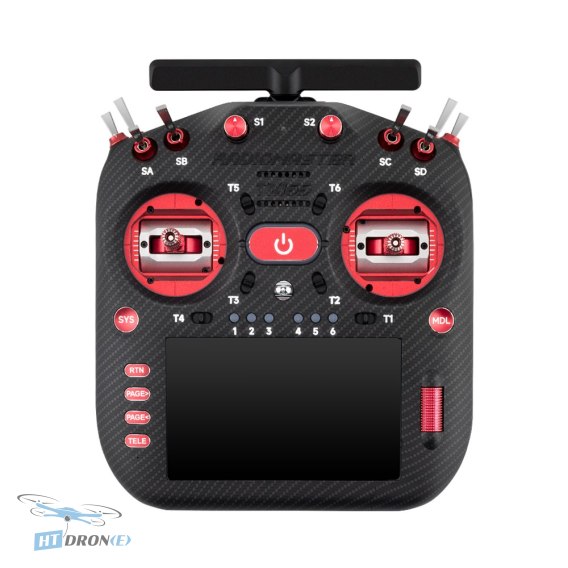

RadioMaster TX16S MK3 MAX Red FPV Radio Controller with ExpressLRS

Introduction

The RadioMaster TX16S MK3 MAX Red is the ultimate radio controller designed for serious FPV drone pilots and advanced RC enthusiasts. It addresses the need for unparalleled precision, flexibility, and long-term reliability in complex aerial applications. Powered by the robust EdgeTX operating system and a high-performance STM32 H7 processor, this controller delivers exceptional responsiveness, smooth operation, and a vast array of customization options. Its premium build quality, including CNC metal gimbals and a large touchscreen display, combined with integrated dual-band ExpressLRS, makes it the ideal choice for demanding freestyle, racing, cinematic, and long-range missions.

Key Advantages

• High-Performance Processing: Equipped with an STM32 H7 microcontroller for maximum computational power and swift response times.
• Vivid Touchscreen Display: Features a 5-inch IPS touchscreen with 800x480 resolution, offering clear visuals and intuitive navigation.

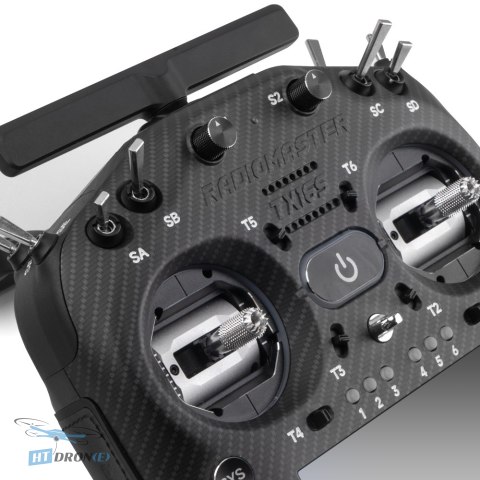

• Precision Hall Sensor Gimbals: Utilizes V4 Hall sensor gimbals with four high-quality bearings for smooth, accurate control, compatible with AG02/AG01 CNC Aluminium upgrades.
• Customizable Gimbal LEDs: Programmable RGB gimbal light rings controllable via LUA scripts for personalized aesthetics and feedback.
• Integrated Dual-Band RF: Built-in Gemini 2.4 GHz and Sub-G 868/915 MHz internal RF module for versatile and reliable signal transmission.
• Efficient Cooling System: Features quiet, high-performance fans and an aluminum heatsink to keep the radio cool during intensive use.
• Ample Storage: Comes with 4GB of internal flash memory and supports external MicroSD cards for extensive model memory and data logging.

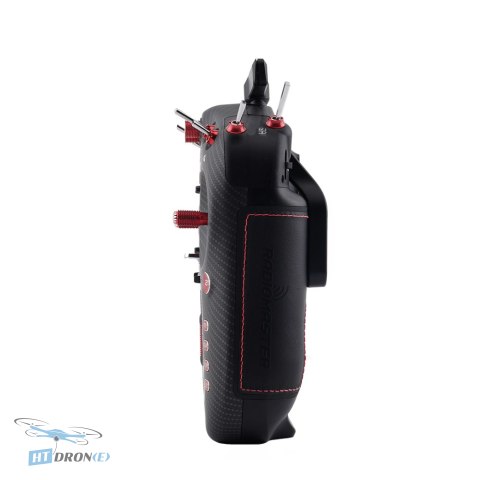

• Ergonomic Design: Includes removable shoulder switch panels for a customized feel and a nylon neck strap for comfortable extended use.

Technical Specifications

• Color: Red
• Operating Voltage: 6.6-8.4V DC
• Working Current: 1.10A (at max RF power output)
• Radio Software: EdgeTX (v3.0.0 or higher required)
• Internal RF Module: ExpressLRS 2 x LR1121
• Frequency: ISM 2.4 GHz and Sub-G 868/915 MHz
• Channels: Up to 16 channels
• Gimbals: AG02 Hall Sensor CNC Gimbals

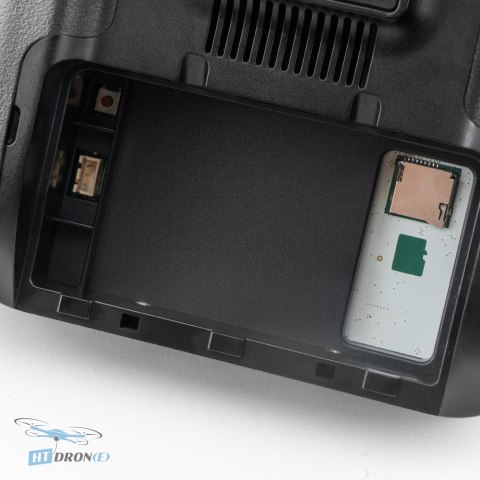

• MicroSD Card Slot: Yes (card not included)
• Internal Memory: 4GB integrated flash memory
• Display: 5-inch IPS Touchscreen (800 x 480 resolution)

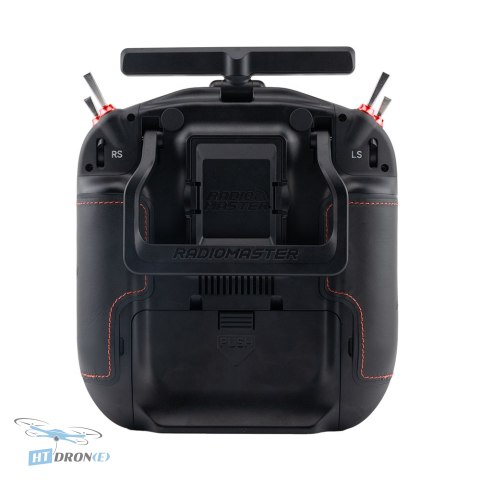

• Battery Compatibility: Two 3.7V 18650 Li-Ion batteries / 5000mAh 21700 Li-Ion battery / 2S 7.4V 6200mAh Lipo battery (batteries not included)
• Update Method: USB / EdgeTX Companion PC software
• Module Bay: JR compatible module bay for additional modules
• Dimensions: 200 x 178 x 88 mm
• Weight: 864g (without battery)

Applications

The RadioMaster TX16S MK3 MAX Red is ideal for a wide range of applications including FPV racing, freestyle flying, cinematic drone videography, long-range exploration, UAV operations, and advanced RC hobbyist projects. Its versatility and robust feature set make it suitable for both professional and enthusiast use.

Compatibility

The controller is compatible with the EdgeTX operating system (v3.0.0 or higher). It features a JR module bay for expanding compatibility with various external RF modules. The controller requires external batteries (18650 Li-Ion, 21700 Li-Ion, or 2S LiPo) and a MicroSD card, which are sold separately.

FAQ

What makes the RadioMaster TX16S MK3 MAX Red ideal for FPV racing and freestyle?

The TX16S MK3 MAX Red offers exceptional precision with its AG02 CNC Hall sensor gimbals and fast response thanks to the STM32 H7 processor and ExpressLRS. Its customizable settings via EdgeTX allow pilots to fine-tune control for competitive racing or intricate freestyle maneuvers.

Does the RadioMaster TX16S MK3 MAX Red come with ExpressLRS built-in?

Yes, this model features an integrated dual-band ExpressLRS RF module, supporting both 2.4 GHz and Sub-G 868/915 MHz frequencies. This provides reliable and long-range connectivity for your FPV drones.

What batteries are compatible with the RadioMaster TX16S MK3 MAX Red?

The controller supports multiple battery options, including two 3.7V 18650 Li-Ion batteries, a 5000mAh 21700 Li-Ion battery, or a 2S 7.4V 6200mAh LiPo battery. Please note that batteries are not included and must be purchased separately.

Where can I buy the RadioMaster TX16S MK3 MAX Red with fast delivery?

You can order the RadioMaster TX16S MK3 MAX Red at HTDRONE. We offer fast shipping within Poland and reliable delivery to Ukraine via Nova Poshta, as well as worldwide shipping via DHL.

Can I expand the storage on the RadioMaster TX16S MK3 MAX Red?

Absolutely. The TX16S MK3 MAX Red includes 4GB of internal flash memory and also features a MicroSD card slot, allowing you to easily expand storage for model setups, firmware updates, and data logging.
