RushFPV Blade F722 30x30 FC V2 & 60A ESC Extreme Edition & Rush Tank II VTX Stack Combo

Introduction

The RushFPV RUSH BLADE F722 30x30 Flight Controller V2 & 60A BLHeli_32 4-in-1 128 ESC - Extreme Edition & RUSH Tank II VTX Stack/Combo is a high-performance integrated system designed for serious FPV drone enthusiasts. This combo offers a streamlined solution for building powerful and reliable FPV rigs, combining essential flight control, power distribution, and video transmission components into one package. It's ideal for custom FPV drone builds requiring top-tier performance and durability.

Key Advantages

• Integrated Solution: Combines Flight Controller, ESC, and VTX for simplified installation and reduced weight.
• Powerful Performance: Features a 60A continuous current rating with 80A burst, suitable for high-power setups.
• Advanced Flight Control: Equipped with an STM32F722RET6 MCU and ICM42688P Gyro for precise and stable flight characteristics.
• High-Quality Video Transmission: Includes the RUSH Tank II VTX with adjustable power up to 800mW for clear and long-range FPV video feeds.
• Durable Construction: Built with quality components to withstand the rigors of FPV flying.
• BLHeli_32 ESC: Offers advanced ESC features, smoother throttle control, and higher PWM frequencies for optimal motor performance.
• 16MB Blackbox: Integrated Blackbox for flight data logging and analysis, crucial for tuning and troubleshooting.
• Wide Input Voltage: Supports 3-6S LiPo batteries for flexibility in power system configuration.

Technical Specifications

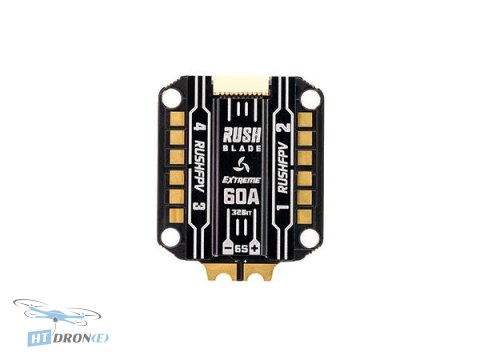

• ESC: Extreme Edition
• Rated Current: 60A
• Peak Current: 80A
• Input Voltage: 3-6S Lipo
• ESC MCU: F4 @ 200MHz
• PWM FREQ: 24-128KHz
• LED Color: Orange
• ESC Weight: 16.5g
• ESC Dimensions: 45x36.5x7.5mm
• BL32 FW: RUSH_BLADE_EXTREME

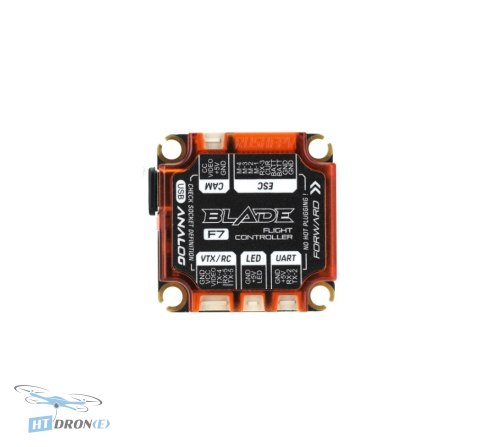

• Flight Controller MCU: STM32F722RET6
• Gyro: ICM42688P
• BEC: INPUT 7-36V / 3-6S LIPO, OUTPUT 5V 3A
• OSD: AT7456E CVBS OSD
• Blackbox: 16MB FLASH
• Target: RUSH_BLADE_F7
• Ports: 8xPWM, 5xUART, 1xI2C
• ADC: V-BATT / CURR-ESC
• LED: WS2812 LED STRIP
• Barometer: BMP280
• Mounting Holes: 30.5x30.5 mm
• FC Size: 36.5x37x5.2 mm
• FC Weight: 11g (without cable)

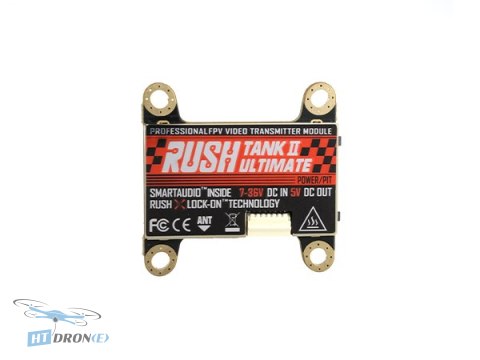

• VTX: Rush Tank II
• VTX Input Voltage: 7-36V DC
• VTX Output Voltage: 5V 1A
• VTX Input Current (12V): 40mA@Pitmode, 95mA@25mW, 185mA@200mW, 250mA@500mW, 380mA@800mW
• VTX Channels: 48CH
• VTX Power: PIT/25/200/500/800 mW
• VTX Audio: Supports audio input
• VTX Dimensions: 36x36x4.5 mm
• VTX Weight: 6.8 g (including cable)

Applications

This stack is perfect for building high-performance FPV racing drones, freestyle quads, and professional aerial platforms. Its robust design and advanced features make it suitable for demanding FPV applications where reliability and power are crucial. Ideal for pilots looking to push the limits in competitive racing or complex freestyle maneuvers.

Compatibility

The stack is designed for 30.5x30.5mm mounting patterns. It supports 3-6S LiPo batteries. The FC offers 8x PWM, 5x UART, and 1x I2C ports for extensive peripheral connections. The VTX is compatible with 7-36V DC input.

FAQ

What is the RushFPV Blade F722 Stack Combo?

The RushFPV Blade F722 Stack Combo is an integrated FPV system that includes a F722 Flight Controller V2, a 60A BLHeli_32 ESC Extreme Edition, and a RUSH Tank II VTX. It's designed for high-performance FPV drone builds.

What are the key specifications of the ESC in this stack?

The ESC is a 60A BLHeli_32 4-in-1 unit with a peak current of 80A. It supports 3-6S LiPo batteries and features a 128KHz PWM frequency for efficient operation.

What is the maximum power output of the RUSH Tank II VTX?

The RUSH Tank II VTX offers adjustable power output, including PIT, 25mW, 200mW, 500mW, and up to 800mW. It supports 48 channels and audio input.

What is the mounting size for this FPV stack?

This FPV stack features standard 30.5x30.5mm mounting holes, making it compatible with most FPV drone frames designed for this size.
