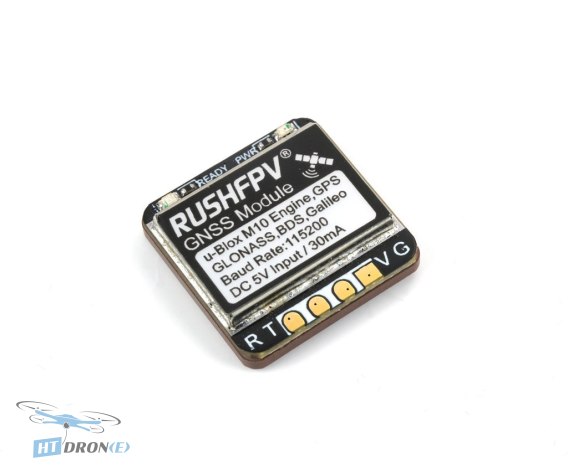

RushFPV GNSS MINI GPS Module with uBlox M10 Chipset for FPV Drones

Introduction

The RushFPV GNSS MINI is a cutting-edge GPS module designed for FPV and UAV applications. It utilizes the latest uBlox M10 chipset, offering superior satellite reception and accuracy. This module is perfect for drone enthusiasts and professionals who demand reliable navigation data for their builds, whether for freestyle, racing, or professional aerial photography.

Key advantages

• Advanced uBlox M10 Chipset: Provides robust and accurate positioning.
• Multi-System Support: Connects simultaneously to GPS, GLONASS, and GALILEO constellations.
• Compact and Lightweight: Measuring just 18x18x4.8mm and weighing only 4.2g, it fits easily onto any drone.
• Fast Hot-Start: Integrated backup battery ensures quick satellite acquisition.
• Stable Navigation: Essential for improved flight control and autonomous features.
• High Performance: Optimized for demanding FPV and UAV environments.
• Reliable Data: Delivers consistent positioning data for critical flight operations.
• Easy Integration: Designed for simple setup with 5V power input.

Technical specifications

• Module Name: RushFPV GNSS MINI
• Chipset: uBlox M10
• Supported Systems: GPS, GLONASS, GALILEO
• Dimensions: 18x18x4.8mm
• Weight: 4.2g
• Power Supply: 5V
• Current Consumption: 30mA
• Features: Built-in backup battery, fast hot-start

Applications

This GPS module is ideal for a wide range of applications including FPV racing drones, freestyle quadcopters, professional UAV platforms for aerial surveying, inspection missions, and long-range exploration flights. It's crucial for enabling return-to-home (RTH) functions, waypoint navigation, and enhancing flight stability.

Compatibility

The RushFPV GNSS MINI operates on a 5V power supply and draws approximately 30mA. It is designed to be easily integrated with most FPV flight controllers via standard UART connections. Ensure your flight controller has available UART ports and supports GPS configuration.

FAQ

What makes the RushFPV GNSS MINI GPS module stand out?

The RushFPV GNSS MINI stands out due to its advanced uBlox M10 chipset, which supports simultaneous connection to GPS, GLONASS, and GALILEO systems for highly accurate positioning. It also features a compact size, low weight, and a fast hot-start capability thanks to its integrated backup battery.

Is this GPS module suitable for FPV racing drones?

Yes, its compact size (18x18x4.8mm) and low weight (4.2g) make it ideal for FPV racing drones where minimizing weight and space is crucial. The reliable navigation data it provides can also enhance flight stability.

What are the technical specifications of the RushFPV GNSS MINI?

The module uses a uBlox M10 chipset, supports GPS, GLONASS, and GALILEO, measures 18x18x4.8mm, weighs 4.2g, and operates on a 5V power supply with a 30mA current draw. It also includes a backup battery for fast hot-starts.

Where can I buy the RushFPV GNSS MINI GPS module with fast delivery?

You can buy the RushFPV GNSS MINI GPS module at HTDRONE. We are based in Poland and offer fast shipping within Poland. International delivery is available via DHL, ensuring reliable and quick service for customers worldwide.

What applications can benefit from the RushFPV GNSS MINI?

This module is beneficial for FPV drones, UAVs, aerial photography, inspection missions, and racing. It enhances navigation accuracy, enables features like Return-to-Home (RTH), and supports waypoint navigation for autonomous flights.
