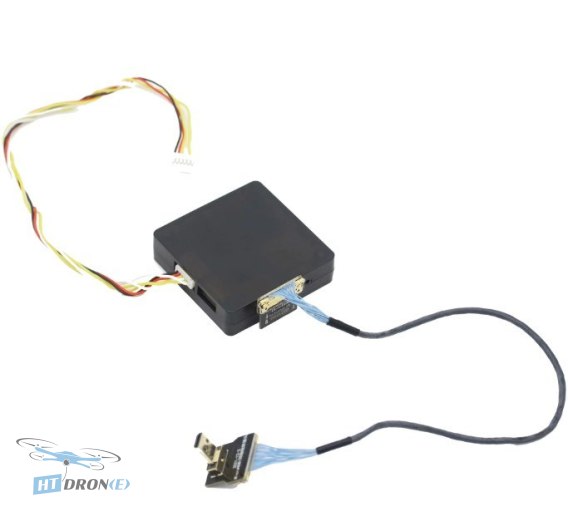

SIYI Air Unit HDMI Input Converter for UniRC 7, MK32, HM30, MK15 Drones

Introduction

The SIYI Air Unit HDMI Input Converter is a specialized device designed to bridge the gap between standard HDMI video outputs and SIYI's advanced drone transmission systems. It allows users to connect high-definition video sources, such as professional cameras or other media devices equipped with HDMI output, directly to SIYI's UniRC 7, MK32, HM30, and MK15 Air Unit systems. This converter is ideal for FPV pilots and UAV operators who need to transmit high-quality video signals efficiently, enhancing aerial cinematography, inspection, and racing applications.

Key Advantages

• Seamless HDMI to Ethernet video signal conversion for SIYI Air Units.
• Supports integration with popular SIYI transmission systems like UniRC 7, MK32, HM30, and MK15.
• Enables high-definition video streaming and recording capabilities.
• Compact and lightweight design for easy integration into drone builds.
• Wide operating temperature range for reliable performance in various conditions.
• Supports H.265 video format for efficient compression and storage.
• Easy setup and compatibility with standard MicroSD cards for recording.
• Durable construction suitable for demanding FPV and UAV applications.

Technical Specifications

• Video Input Port: Mini HDMI
• Video Output Port: Ethernet
• Operating Voltage: 12 V
• Power Consumption: 3 W
• Recording Resolution on TF Card: 1080P (1920*1080) @ 30 fps, 720p (1280 x 720) @ 30 fps
• Video Storage Bitrate: 12 Mbps
• File Save Format: FAT32
• Video Format: H.265
• Supported MicroSD Cards: MicroSD Class10, max. 32 GB
• Operating Temperature: -10 to 50 ℃
• Dimensions: 42 x 41 x 11 mm
• Weight: 26 g

Applications

This SIYI HDMI Input Converter is perfect for a wide range of applications including FPV racing, aerial photography, professional drone cinematography, industrial inspections, surveillance, and any scenario where high-definition video needs to be transmitted from an HDMI source to a SIYI Air Unit system. It enhances the visual capabilities of drones for both hobbyists and professionals.

Compatibility

The converter is designed for compatibility with SIYI UniRC 7, MK32, HM30, and MK15 Air Unit systems via an Ethernet output. It requires a 12V operating voltage and consumes 3W of power. It supports standard FAT32 formatted MicroSD cards up to 32GB (Class10 recommended) for recording.

FAQ

What is the SIYI Air Unit HDMI Input Converter used for?

The SIYI Air Unit HDMI Input Converter is used to connect devices with an HDMI video output, such as cameras or other media sources, to SIYI's drone transmission systems like the UniRC 7, MK32, HM30, and MK15 Air Unit. It allows for high-definition video signal transmission via Ethernet.

What resolution can be recorded with this SIYI HDMI converter?

When using a compatible MicroSD card (Class10, max 32GB), the converter supports recording at 1080P (1920*1080) at 30 fps or 720p (1280 x 720) at 30 fps. The video bitrate for storage is 12 Mbps.

Which SIYI Air Unit models are compatible with this HDMI converter?

This converter is specifically designed for compatibility with the SIYI UniRC 7, MK32, HM30, and MK15 Air Unit systems. It utilizes an Ethernet port for video output to these units.

Where can I buy the SIYI Air Unit HDMI Input Converter with fast delivery?

You can buy the SIYI Air Unit HDMI Input Converter at HTDRONE. We offer fast and reliable delivery, with shipping available worldwide via DHL for international orders.

What are the power requirements for the SIYI HDMI converter?

The SIYI Air Unit HDMI Input Converter operates on a 12V working voltage and consumes approximately 3W of power. This makes it suitable for integration into most drone power systems.
