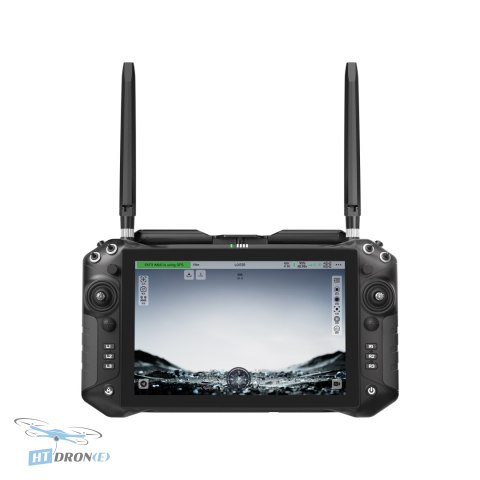

SIYI UniRC 10 Pro Handheld Ground Station - Advanced Drone Remote Controller

Introduction

The SIYI UniRC 10 Pro is a cutting-edge handheld ground station and remote controller engineered for the most demanding professional unmanned systems. Whether you're operating advanced drones, unmanned ground vehicles (UGVs), unmanned surface vehicles (USVs), or intelligent robotics, this device provides unparalleled control and video feedback. It integrates a high-definition 10.1-inch display with robust communication and processing capabilities, making complex operations seamless and efficient.

Key Advantages

• Professional 10.1-inch HD Display: Features a 1920x1200 resolution screen with an ultra-bright 2000 nits adaptive brightness, ensuring excellent visibility even in direct sunlight and for monitoring multiple video streams.
• Long-Range Triple-Frequency Link: Utilizes advanced triple-band transmission with adaptive frequency hopping for up to 45 km range, offering superior anti-interference and stable communication in challenging environments.
• Powerful Android 13 System: Driven by a Snapdragon 8-core SOC and Android 13, with 4GB RAM and 64GB expandable storage, it supports smooth app operation and professional workflows.
• Dual Hot-Swappable Battery Architecture: Combines an internal 6700 mAh battery with an external 13400 mAh hot-swappable battery for up to 5 hours of continuous operation, supporting PD65W fast charging.
• 27 Customizable Control Channels: Equipped with Hall sensor joysticks, mini-sticks, knobs, and switches for precise control over drones, gimbals, robots, and multi-payload systems.
• Extensive Connectivity & SDK Support: Offers comprehensive interfaces including HDMI, Ethernet, USB-A, USB-C, SIM, TF, SBUS/PPM, and Bluetooth, plus SDK support for advanced integration.
• Rugged All-Weather Design: Built with an IP54 rated enclosure, it's designed for professional field operations in temperatures ranging from -20°C to +50°C.
• Advanced Air Unit: A compact 200g air unit with dual Ethernet ports, dual data links, PWM/SBUS outputs, CAN interface, and USB-C for firmware updates.

Technical Specifications

• Processor and Chipset: System: Android 13, Processor: Snapdragon 8-Core SOC, Memory: 4GB RAM, Storage: 64GB (expandable)
• Display Parameters: Size: 10.1 inches, Resolution: 1920x1200, Brightness: Adaptive (up to 2000 nits)
• Transmission: Frequency: Triple frequency redundancy, Range: Up to 45 km (ideal conditions), Bandwidth: 10/20 MHz, Features: Adaptive frequency hopping, dual control
• Durability: External Battery Capacity: 13400 mAh, Internal Battery Capacity: 6700 mAh, Total Runtime: Approx. 5 hours, Features: Hot-swappable batteries, charging while operating, PD65W fast charging
• Controls and Interfaces: Joystick Type: Hall sensor, Main Joysticks: 2, Mini Joysticks: 2, 3-Position Switch: 6, Knobs: 2, Toggle Switches: 2, Buttons: 13. Ground Unit Interfaces: HDMI, SIM port, USB-A, Type-C, RJ45 Ethernet, TF port, 3.5mm audio, RC Data (S.BUS, PPM). Air Unit Interfaces: Dual Ethernet ports, dual data links, 5-channel PWM output, SBUS output, CAN (custom protocol), Type-C (firmware update)
• Dimensions & Weight: Ground Unit Dimensions: 328.2 x 222.5 x 101.5 mm, Ground Unit Weight: 2.6 kg (with belly bracket), Air Unit Dimensions: 85 x 42.4 x 26.9 mm, Air Unit Weight: 200 g
• Environmental: IP Rating: IP54, Operating Temperature: -20°C to +50°C

Applications

The SIYI UniRC 10 Pro is exceptionally suited for a wide array of professional applications including advanced drone piloting, aerial surveillance and inspection, mapping and surveying, emergency response coordination, agricultural monitoring, and control of unmanned ground and surface vehicles. Its robust design and extensive features make it a versatile tool for complex robotic and autonomous system operations.

Compatibility

This ground station is designed for broad compatibility with various unmanned systems, offering flexible power options through its dual battery system and supporting multiple control interfaces like PWM, SBUS, PPM, and CAN. Its SDK support allows for deep integration with custom software and hardware solutions.

FAQ

What types of unmanned systems can the SIYI UniRC 10 Pro control?

The SIYI UniRC 10 Pro is designed for professional unmanned systems, including advanced drones (UAVs), unmanned ground vehicles (UGVs), unmanned surface vehicles (USVs), and intelligent robotics platforms. Its versatile control interface and robust performance make it suitable for a wide range of applications.

What is the maximum control range of the SIYI UniRC 10 Pro?

The SIYI UniRC 10 Pro features a triple-frequency link with adaptive frequency hopping, providing a maximum control range of up to 45 km under optimal conditions (e.g., at altitude with minimal interference). It ensures stable communication even in complex environments.

How long does the battery last on the SIYI UniRC 10 Pro?

The ground station is equipped with a dual-battery system, featuring an internal 6700 mAh battery and an external 13400 mAh hot-swappable battery. This configuration provides approximately 5 hours of continuous operation and supports PD65W fast charging, allowing for charging while in use.

Can the SIYI UniRC 10 Pro be used in outdoor conditions?

Yes, the SIYI UniRC 10 Pro is built for professional field operations with an IP54 rating, making it resistant to dust and water splashes. It can operate reliably in a wide temperature range from -20°C to +50°C, and its 2000 nits display ensures excellent visibility in bright sunlight.
