SKYZONE SKY04O (Black) 5.8GHz 48CH OLED FPV Goggles

Introduction

Experience the next level of FPV immersion with the SKYZONE SKY04O (Black) FPV Goggles. Designed for dedicated FPV pilots, these goggles solve the common issues of visual acuity and comfort with their advanced OLED display and highly adjustable features. Whether you're into racing, freestyle, or long-range exploration, the SKY04O provides a crystal-clear, vibrant, and comfortable viewing experience, making it easier to navigate complex environments and react faster.

Key Advantages

• Stunning 1024x768 OLED resolution for sharp, vibrant visuals.

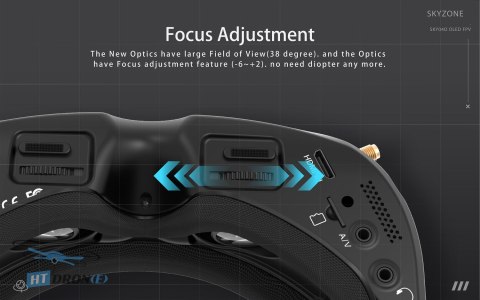

• Wide diopter adjustment (-6 to +2) catering to both nearsighted and farsighted users.
• Adjustable Interpupillary Distance (IPD) from 58mm to 71mm for a perfect fit.
• Integrated 5.8GHz 48CH diversity receiver for reliable signal reception.
• High-quality H.264 DVR with 60fps recording for capturing your flights in detail.
• Comfortable and lightweight design (262g) with interchangeable faceplates and foam pads.
• Versatile power options (DC 6.5-25.2V / USB 5V) for flexible operation.

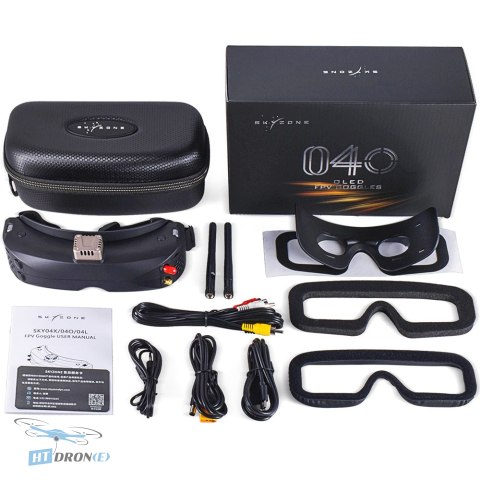

• Includes a comprehensive package with antennas, cables, and a carrying case.

Technical Specifications

• Model: SKY04O
• Display: OLED
• Resolution: 1024x768
• FOV (Diagonal): 38°

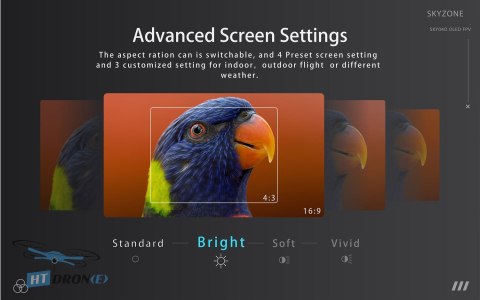

• Aspect Ratio: 4:3/16:9
• Focus: -6 to +2 adjustable (Diopter)
• IPD: 58-71 mm
• Receiver: 5.8Ghz 48CH Receiver
• 3D Function: Half Side By Side
• Language: 10 languages
• Power Input: DC 6.5-25.2V / USB 5V
• Power Consumption: 720mA @ 12V
• DVR: H.264, 60fps, MOV 6Mbps, supports up to 128GB SD card
• Head Tracker: 3-Axis Accelerometer, 3-Axis Gyroscope

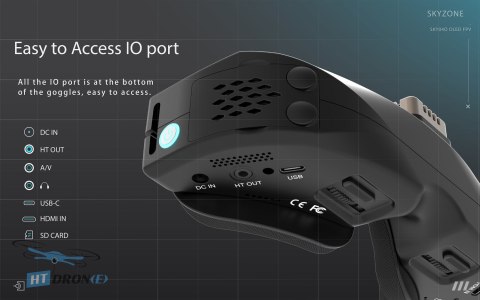

• Antenna Connector: SMA
• Dimensions: 185x75x67mm
• Voltage: 2S-6S
• Weight: 262g

Applications

The SKYZONE SKY04O goggles are ideal for a wide range of FPV applications, including high-speed drone racing, dynamic freestyle flying, long-range exploration, and professional aerial cinematography. Their advanced features and comfortable design make them suitable for extended flight sessions.

Compatibility

These goggles are compatible with standard 5.8GHz FPV transmitters. They support 2S-6S LiPo batteries for power and can also be powered via USB 5V. The SMA antenna connector ensures compatibility with a wide variety of FPV antennas. The included DVR supports SD cards up to 128GB.

FAQ

Where can I buy the SKYZONE SKY04O FPV Goggles with fast delivery?

You can order the SKYZONE SKY04O FPV Goggles directly from HTDRONE, our specialized FPV store based in Poland. We offer fast shipping within Poland and reliable worldwide delivery via DHL, ensuring you receive your order quickly.

What makes the SKYZONE SKY04O goggles ideal for users with vision impairments?

The SKYZONE SKY04O goggles feature a wide diopter adjustment range from -6 to +2, making them suitable for both nearsighted and farsighted individuals. This allows pilots to achieve sharp focus without needing separate prescription glasses.

Can I record my FPV flights with the SKYZONE SKY04O goggles?

Yes, the SKYZONE SKY04O goggles are equipped with a built-in DVR system that records in H.264 format at 60fps with a 6Mbps bitrate in MOV. It supports SD cards up to 128GB, allowing you to capture high-quality footage of your flights.

What is the field of view (FOV) and resolution of the SKYZONE SKY04O FPV goggles?

The SKYZONE SKY04O features a 38° diagonal field of view (FOV) and a high-resolution 1024x768 OLED display. This combination provides an immersive and detailed visual experience crucial for FPV piloting.

Are the SKYZONE SKY04O goggles compatible with different battery voltages?

Yes, the SKYZONE SKY04O goggles offer flexible power options. They can be powered via USB 5V or a DC input supporting a wide voltage range from 6.5V to 25.2V (2S-6S LiPo batteries).
