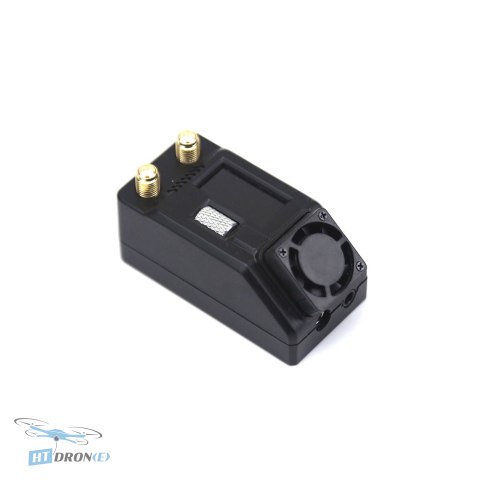

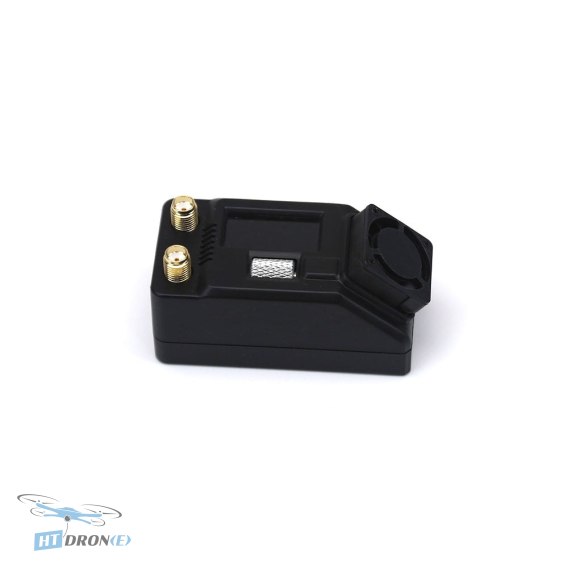

SKYZONE VRX SteadyView X 4.9-5.8G IPS Receiver Module for FPV Goggles

Introduction

The SKYZONE SteadyView X is an advanced 4.9-5.8Ghz receiver module designed to significantly enhance your FPV (First Person View) experience. It is an upgraded version of the popular Steadyview V3.3, engineered to provide a more stable and clearer video feed, especially in complex environments. This module is perfect for FPV enthusiasts, drone racers, and professional UAV operators who demand the highest quality video reception for critical flights.

Key advantages

• Superior image stability with SteadyView technology, merging dual signals to prevent tearing and rolling.

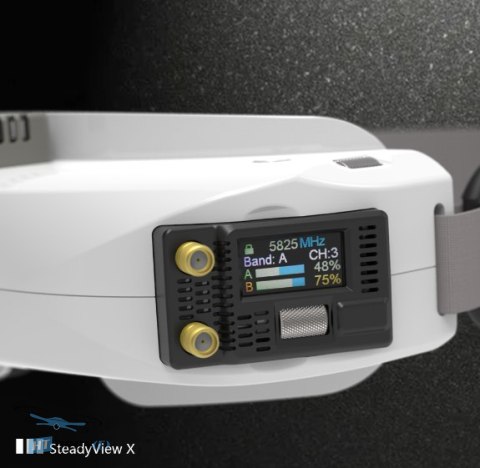

• Crisp and clear visuals thanks to the integrated IPS screen.
• Enhanced usability with a jog shuttle wheel for easy control adjustments.
• Versatile ground station kit allows use with any monitor or goggles featuring AV IN.
• Built-in ELRS backpack for seamless synchronization with VTX and VRX using ELRS TX and Lua script.
• Wide input voltage range (2-6S LiPo) for flexible power options.
• USB-C connectivity for firmware updates and power supply.
• Includes RHCP 'crossover antenna' for optimal signal reception.

Technical specifications

• Frequency: 4.9-5.8Ghz
• Receiver Sensitivity: -98dBm±1dBm
• Input Voltage: 2-6S LiPo
• Screen Type: IPS
• Control: Jog shuttle wheel
• Features: Ground Station Kit, Integrated ELRS backpack
• Connectivity: USB-C (Firmware update/RX power), 3.5mm Video/Audio Output
• Antenna Type Included: 1x Patch, 1x Omni (RHCP crossover)
• Weight: 250g
• Package Size: 15*15*8cm

Applications

The SKYZONE SteadyView X is ideal for a wide range of FPV applications, including drone racing, freestyle FPV flying, aerial cinematography, and UAV operations where a stable and clear video feed is paramount. Its advanced features make it suitable for pilots operating in multi-path environments or seeking maximum video clarity.

Compatibility

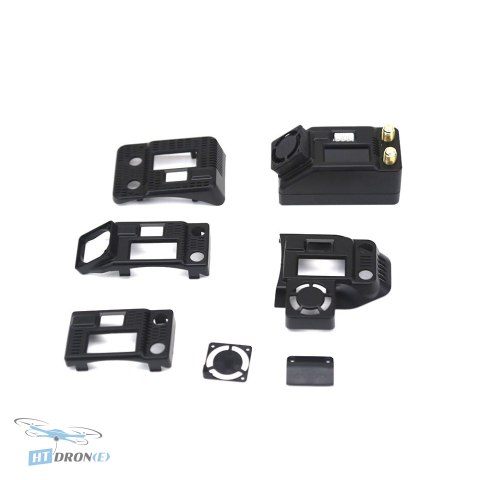

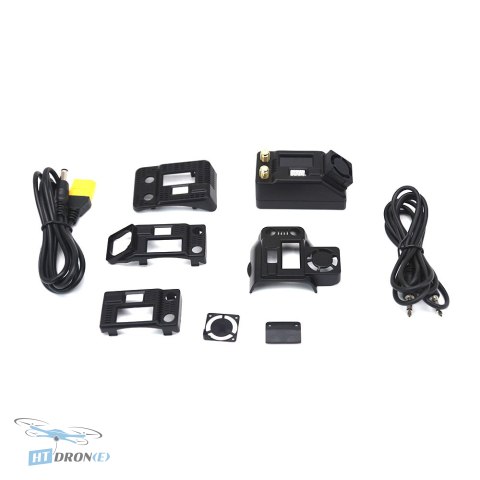

This module is compatible with various FPV goggles and monitors that feature an AV IN port, thanks to its ground station kit. It includes module bay covers for SKY04/EV300O/COBRA/Fatshark goggles. Power is supplied via a 2-6S LiPo battery using the included XT60-Barrel power cable. USB-C allows for power and firmware updates.

FAQ

What makes the SKYZONE SteadyView X receiver module stand out?

The SKYZONE SteadyView X features advanced SteadyView technology that merges two signals into one, preventing image tearing and rolling. It also boasts an IPS screen for superior clarity and a built-in ELRS backpack for advanced synchronization.

Can I use the SteadyView X module with my current FPV goggles?

Yes, the SteadyView X comes with a ground station kit and module bay covers for popular goggles like SKY04, EV300O, COBRA, and Fatshark. It can also be used with any monitor or goggles that have an AV IN port.

What are the power requirements for the SteadyView X module?

The module supports a wide input voltage range of 2-6S LiPo, offering flexibility in powering your setup. It can also be powered via USB-C.

Where can I buy the SKYZONE SteadyView X receiver module with fast delivery?

You can order the SKYZONE SteadyView X receiver module directly from HTDRONE. We offer fast and reliable international shipping via DHL, ensuring you receive your order quickly.

Does the SteadyView X module support firmware updates?

Yes, the module features a USB-C port that supports firmware updates, allowing you to keep your receiver module up-to-date with the latest features and improvements.
