IFlight XING-E 2809 Cinelifter Motor 800KV - High-Strength Steel Shaft Motor for FPV Drones

Introduction

The iFlight XING-E 2809 Cinelifter Motor 800KV is specifically designed for the unique demands of Cinelifter FPV drones. This motor provides the necessary power and reliability for carrying heavier payloads and executing smooth, cinematic aerial footage. Built with premium components, it represents a significant upgrade for serious FPV pilots looking to enhance their drone's performance and durability.

Key advantages

• High-strength 5mm steel shaft for superior durability under load.
• N52H high-temperature magnets ensure consistent performance even during intense use.
• Efficient single copper winding design for optimal power output and reduced heat.
• Robust construction suitable for demanding Cinelifter applications.
• 19x19mm mounting pattern for broad compatibility with FPV frames.
• Reliable 800KV rating for balanced power and efficiency.
• Designed for long flight times and stable operation with larger propellers.
• Includes necessary mounting hardware for straightforward installation.

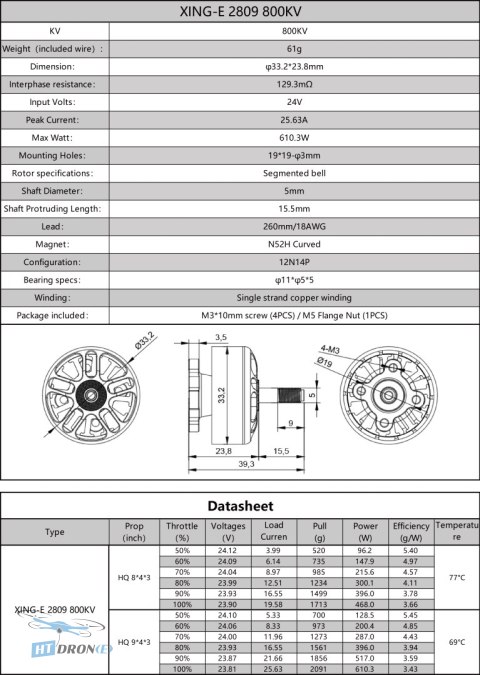

Technical specifications

• Model: XING-E 2809 Motor
• KV: 800KV
• Weight (including cable): 61g
• Dimensions: φ33.2 * 23.8 mm
• Inter-phase resistance: 129.3 mΩ
• Input Voltage: 24V (Recommended)
• Peak Current: 25.63A
• Max Power: 610.3W
• Mounting Holes: 19 * 19 φ3mm
• Rotor Specification: Segmented bell
• Shaft Diameter: 5 mm
• Extending Shaft Length: 15 mm
• Wire: 260mm/18AWG
• Magnets: Curved N52H
• Configuration: 12N14P
• Bearing Specification: φ11 * φ5 * 5
• Winding: Single copper winding

Applications

This motor is ideal for building or upgrading Cinelifter FPV drones, large freestyle FPV quadcopters, and professional aerial photography platforms. Its power and durability make it suitable for applications requiring stable flight, heavy lifting capabilities, and cinematic video capture.

Compatibility

Features a standard 19x19mm mounting pattern compatible with many FPV frames. The 5mm shaft diameter allows for various propeller options. Requires a compatible ESC and flight controller capable of handling the motor's power output (610.3W max). The 260mm/18AWG wire provides ample length for most setups.

FAQ

What is the main application for the iFlight XING-E 2809 Cinelifter Motor 800KV?

The iFlight XING-E 2809 Motor is primarily designed for Cinelifter FPV drones and large freestyle FPV quadcopters. Its robust construction and power output make it ideal for carrying camera equipment and achieving stable, cinematic flight.

What makes the iFlight XING-E 2809 motor durable?

This motor features a high-strength 5mm steel shaft and N52H high-temperature magnets, ensuring durability and consistent performance even under demanding conditions. The single copper winding design also contributes to its longevity.

What are the key technical specifications of this 800KV motor?

Key specifications include an 800KV rating, 5mm steel shaft, N52H magnets, 19x19mm mounting holes, and a maximum power output of 610.3W. It weighs 61g and uses a 12N14P configuration.

Where can I buy the iFlight XING-E 2809 Motor with reliable delivery?

You can buy the iFlight XING-E 2809 Motor at HTDRONE. We offer fast shipping within Poland and reliable worldwide delivery via DHL. Check our store for the best deals on FPV drone parts.

Is this motor compatible with standard FPV frames?

Yes, the iFlight XING-E 2809 motor features a standard 19x19mm mounting pattern, making it compatible with a wide range of FPV frames. Ensure your ESC and flight controller can handle its power requirements.
