GEPRC GEP-GR2207 2400KV Red FPV Motor

Introduction

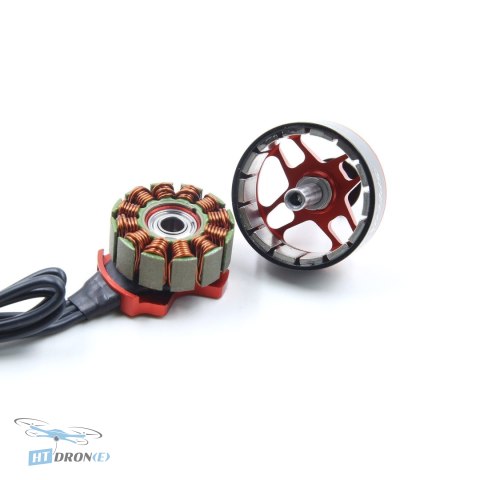

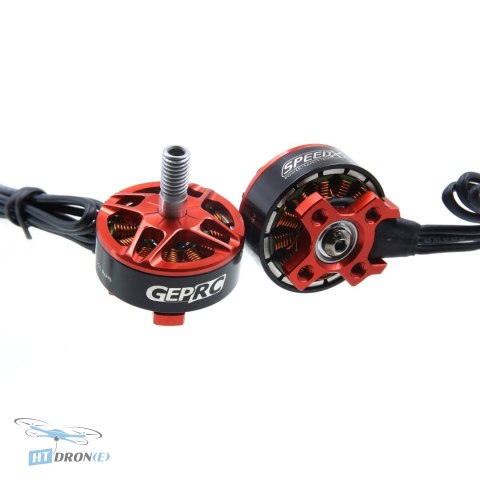

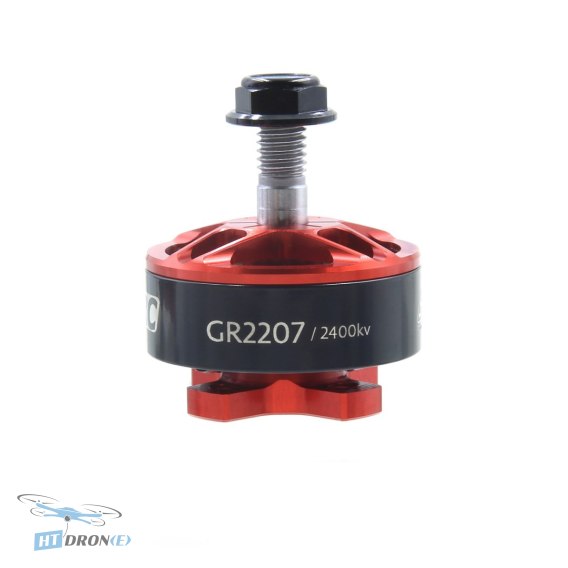

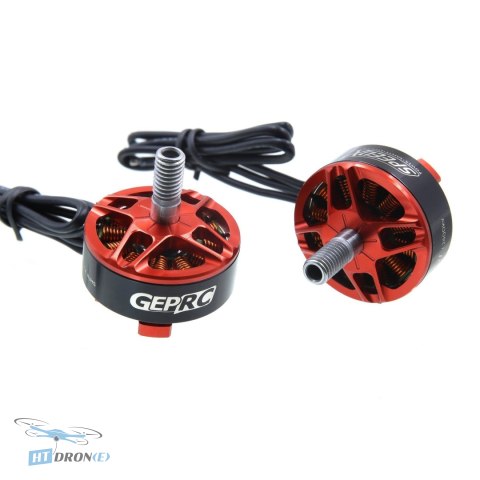

The GEPRC GEP-GR2207 motor, presented here in a vibrant red 2400KV configuration, is a premium component designed for the demanding world of FPV drone piloting. Constructed from high-grade 7075 aluminum with precision CNC machining, this motor is built to withstand the rigors of intense aerial maneuvers. It incorporates top-tier NSK bearings and powerful N52H arc magnets, ensuring smooth operation, extended lifespan, and optimal power delivery for your FPV build. Available in multiple KV options and finishes, the GR2207 series offers versatility for various flight styles.

Key advantages

• Superior durability with 7075 aluminum and CNC machining
• Smooth, reliable performance from NSK bearings
• Powerful N52H arc magnets for maximum efficiency
• High KV rating (2400KV) for speed and responsiveness
• Suitable for 4-5S LiPo batteries for versatile power options
• Precise 12N14P configuration for optimized power output
• Lightweight design at only 31g
• Striking red color for a custom look

Technical specifications

• Product Name: GEP-GR2207
• KV: 2400KV
• Color: Red
• Configuration: 12N14P
• Stator Diameter: 22 mm
• Stator Length: 7 mm
• Shaft Diameter: 4 mm (hollow)
• Motor Dimensions (Dia x L): 26.7 mm x 30.5 mm
• Idle Current (10V): 2.4A
• Battery (LiPo): 4-5S
• Max. Continuous Power (15S): 950W
• Internal Resistance: 39mΩ
• Max. Current (30S): 45A
• Peak Efficiency Current: (3-7A) >82%
• Rotor: N52H Arc Magnets
• Bearings: NSK
• Base Housing: Al 7075
• Wire Gauge: 20AWG
• Weight: 31g

Applications

This GEPRC GEP-GR2207 motor is perfectly suited for high-performance FPV drones, including racing quads, freestyle FPV aircraft, and agile cinematic setups. Its power and responsiveness make it an excellent choice for pilots looking to push the limits in aerial acrobatics or competitive FPV racing.

Compatibility

Designed to work with 4-5S LiPo batteries, this motor offers broad compatibility with most modern FPV flight controllers and ESCs supporting a 4mm shaft. The 20AWG wire gauge is standard for FPV applications.

FAQ

What is the best application for the GEPRC GEP-GR2207 2400KV Red motor?

The GEPRC GEP-GR2207 2400KV Red motor is ideal for FPV racing and freestyle drones. Its high KV rating and robust construction provide the speed and durability needed for aggressive flight maneuvers and competitive racing.

What LiPo battery voltage is recommended for the GEPRC GEP-GR2207 2400KV motor?

This motor is designed to work with 4S and 5S LiPo batteries. This range offers flexibility for tuning your drone's power and flight characteristics according to your preferences.

What are the key advantages of the GEPRC GEP-GR2207 motor's construction?

The GEPRC GEP-GR2207 motor features a durable Al 7075 base housing processed with CNC precision. It also incorporates high-quality NSK bearings and powerful N52H arc magnets, ensuring longevity and optimal performance.

Where can I buy the GEPRC GEP-GR2207 2400KV Red motor with fast delivery?

You can buy the GEPRC GEP-GR2207 2400KV Red motor at HTDRONE. We offer fast shipping within Poland and reliable worldwide delivery via DHL, ensuring you receive your FPV parts quickly.

What is the weight of the GEPRC GEP-GR2207 2400KV Red motor?

The GEPRC GEP-GR2207 2400KV Red motor is designed to be lightweight, weighing only 31 grams. This helps in building a lighter drone for better agility and flight performance.
