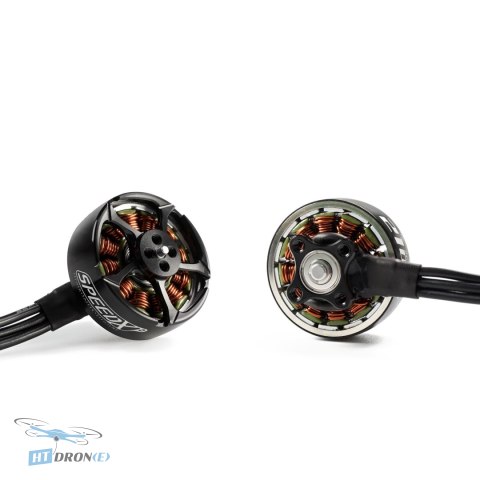

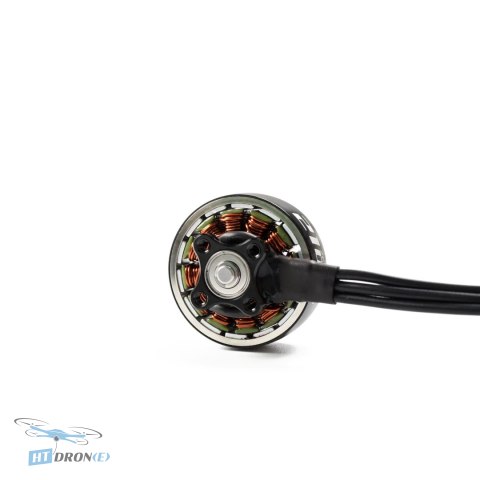

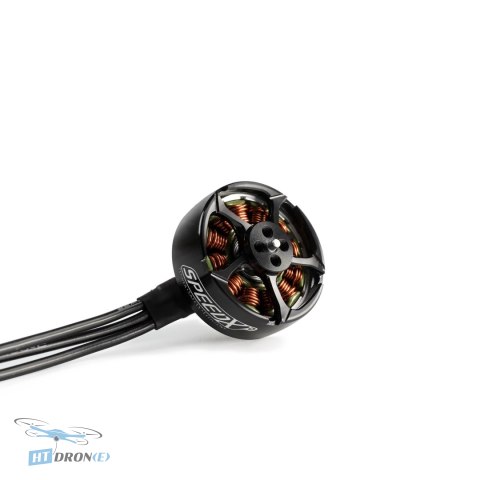

GEPRC SPEEDX2 2105.5 3450KV FPV Drone Motor (Black)

Introduction

Introducing the GEPRC SPEEDX2 2105.5, a next-generation brushless motor designed for the demanding FPV and UAV community. This motor combines cutting-edge construction with lightweight design, making it an ideal choice for pilots seeking enhanced performance and reliability in their freestyle, racing, or long-range FPV drones. The sleek black finish adds a professional look to any build.

Key advantages

• Ultra-Lightweight Design: Weighing only 21.0 grams, it minimizes overall drone weight for improved agility and flight time.
• Advanced Heat Dissipation: The innovative flat construction significantly improves heat dissipation, maintaining lower motor temperatures even under heavy load.
• Versatile Propeller Compatibility: Features a 1.5mm outer diameter shaft, ensuring broad compatibility with most conventional 3-5 inch FPV propellers.
• Durable Construction: Built with high-quality N52H ARC magnets and a robust 12N14P configuration for sustained power output.
• Optimized for 3-4S LiPo: Perfectly suited for 3S and 4S LiPo batteries, providing efficient power delivery for a wide range of FPV applications.
• Precision Engineering: With a 21mm stator diameter and 5.5mm stator height, it delivers excellent torque and responsiveness.
• Standardized Mounting: Features 12mm x 12mm mounting holes with M2 screws for easy integration into most FPV frames.

Technical specifications

• Model: SPEEDX2 2105.5-3450KV
• KV Rating: 3450KV
• Configuration: 12N14P
• Magnets: N52H ARC
• Stator Diameter: 21 mm
• Stator Height: 5.5 mm
• Shaft Diameter: 3.0 mm (inner), 1.5 mm (outer)
• Motor Size: 25.65 mm x 15.7 mm
• Motor Wires: 22#AWG, 150mm length
• LiPo Cells: 3-4S
• Max Continuous Power: 558 W
• Max Current: 34.9 A
• Mounting Holes: 12 mm x 12 mm (M2 screw)
• Color: Black
• Weight: 21.0 g

Applications

This GEPRC SPEEDX2 2105.5 motor is specifically designed for a variety of FPV and UAV applications. It is an excellent choice for 3-4 inch FPV whoop drones, 4-5 inch toothpick-style FPV drones, and long-range FPV setups where a balance of power, efficiency, and weight is crucial. Enhance your drone's performance for racing, cinematic flights, or freestyle maneuvers.

Compatibility

The motor features a 1.5mm outer shaft diameter, making it compatible with a wide array of 3-5 inch FPV propellers. It is designed for use with 3-4S LiPo batteries and utilizes standard M2 mounting screws on a 12mm x 12mm pattern, ensuring compatibility with most popular FPV drone frames.

FAQ

What is the GEPRC SPEEDX2 2105.5 motor best suited for?

The GEPRC SPEEDX2 2105.5 3450KV motor is ideal for 3-4 inch FPV whoops, 4-5 inch toothpick FPV drones, and long-range FPV builds. Its lightweight design and efficient cooling make it perfect for performance-oriented flights.

What is the weight of the GEPRC SPEEDX2 2105.5 motor?

This GEPRC SPEEDX2 2105.5 motor is exceptionally lightweight, weighing only 21.0 grams. This contributes to better drone agility and flight efficiency.

What LiPo voltage is recommended for the GEPRC SPEEDX2 2105.5 motor?

The GEPRC SPEEDX2 2105.5 motor is designed to work with 3S and 4S LiPo batteries, offering versatile power options for different flight styles and drone configurations.

Does the GEPRC SPEEDX2 2105.5 motor come with a warranty?

Please check the product details on the HTDRONE website or contact our customer support for specific warranty information regarding the GEPRC SPEEDX2 2105.5 motor.

Where can I buy the GEPRC SPEEDX2 2105.5 3450KV motor with fast delivery?

You can order the GEPRC SPEEDX2 2105.5 3450KV black motor directly from HTDRONE. We offer fast shipping within Poland and reliable delivery to Ukraine and worldwide.
