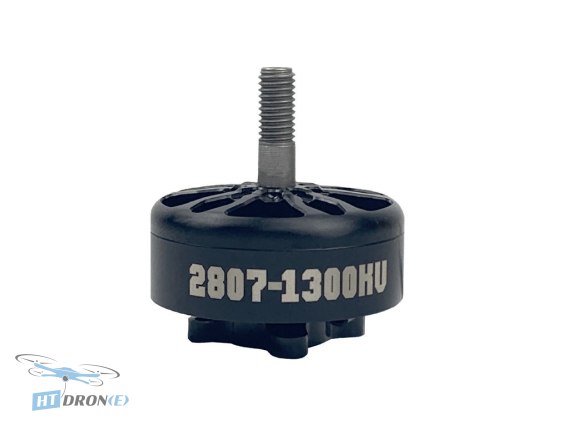

Pilotix 2807 1300KV Brushless Motor for FPV Drones

Introduction

The Pilotix 2807 1300KV brushless motor is a high-performance component designed for FPV and RC drone enthusiasts. It offers a compelling blend of compact size, robust power, and exceptional efficiency, making it a top choice for pilots seeking reliable and consistent performance in demanding aerial applications. This motor is built to handle the rigors of FPV flight, providing the stable operation needed for smooth control and dynamic maneuvers.

Key Advantages

• High Torque and Efficiency: Delivers consistent power for optimal flight performance.
• Stable Operation: Ensures reliable performance across various RC models.
• Durable Construction: Built to withstand the demands of FPV flying.
• Compact and Powerful: Offers a great power-to-size ratio for versatile builds.
• Optimized for 6S Lipo: Designed to work efficiently with 6S power systems.
• Low Current Draw: Features a low 1.2A no-load current for better battery management.
• High Peak Thrust: Capable of generating up to 2036g of thrust for powerful flights.

Technical Specifications

• KV: 1300KV
• Weight (with cable): 55.4g

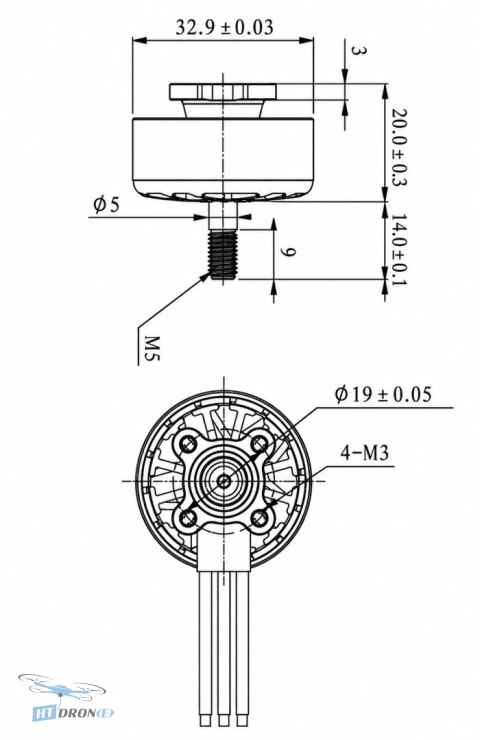

• Motor Dimensions: 33.4 x 20 mm
• Resistance: 0.069Ω
• Motor Wire: 18#AWG 220mm
• Configuration: 12N14P
• Shaft Diameter: 5 mm
• Rated Voltage (Lipo): 6S
• No-Load Current: 1.2A
• Peak Current (60S): 37.91A
• Maximum Power: 907.6 W
• Maximum Thrust: 2036g (6S/GF7*3.5*3)

Applications

This Pilotix 2807 1300KV motor is ideal for building and upgrading FPV racing drones, freestyle quadcopters, and other custom RC aircraft that require a balance of power, efficiency, and reliability. It is particularly well-suited for 6S builds demanding high thrust and stable flight characteristics.

Compatibility

This motor is designed for use with 6S Lipo batteries. Its 5mm shaft diameter and standard mounting dimensions ensure compatibility with a wide range of FPV drone frames and propellers. The 18#AWG 220mm motor wires provide ample length for easy ESC connection.

FAQ

What is the Pilotix 2807 1300KV motor best suited for?

The Pilotix 2807 1300KV motor is best suited for FPV racing and freestyle drones, as well as other custom RC aircraft that require a powerful, efficient, and reliable motor, especially for 6S builds.

What are the key specifications of the Pilotix 2807 1300KV motor?

This motor features 1300KV, weighs 55.4g, has dimensions of 33.4 x 20 mm, a 5mm shaft diameter, and is optimized for 6S Lipo batteries. It boasts a maximum power of 907.6W and a maximum thrust of 2036g.

Can I use this motor with a 4S Lipo battery?

While optimized for 6S, the motor's KV rating and specifications suggest it might be usable with 4S for specific builds, but performance may vary. It's primarily designed and tested for 6S operation to achieve its maximum potential.

Where can I buy the Pilotix 2807 1300KV motor with fast delivery?

You can buy the Pilotix 2807 1300KV motor at HTDRONE. We offer fast shipping within Poland and reliable worldwide delivery via DHL, ensuring you get your FPV parts quickly.

What is the maximum thrust this motor can produce?

The Pilotix 2807 1300KV motor can produce a maximum thrust of 2036g when used with a 6S Lipo battery and a GF7*3.5*3 propeller.
