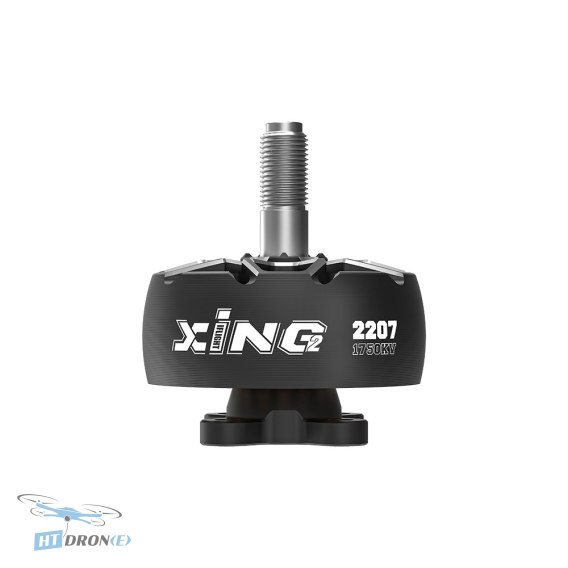

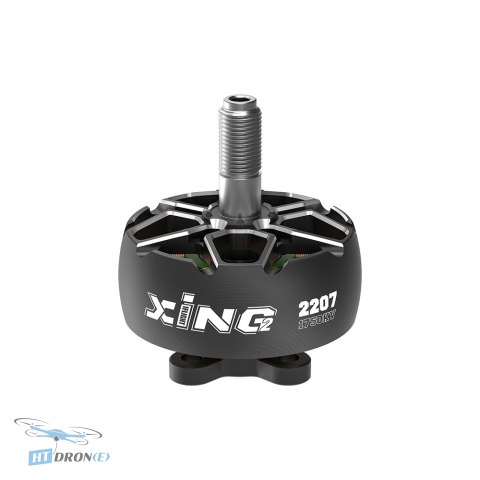

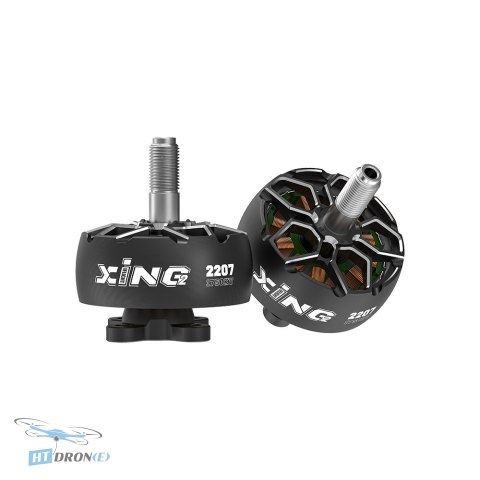

IFlight XING2 2207 Unibell 1750KV 6S FPV Motor

Introduction

The iFlight XING2 2207 Unibell 1750KV motor is a powerhouse designed for demanding FPV drone applications, particularly those utilizing 6S LiPo batteries. This motor represents the pinnacle of iFlight's engineering, offering exceptional power, reliability, and responsiveness for competitive racing, freestyle flying, and professional aerial cinematography. Built with premium materials and advanced design features, the XING2 series ensures a smooth, powerful, and enduring flight experience.

Key Advantages

• Unmatched Durability: Features a 5mm titanium alloy shaft, the strongest ever in the XING series, and a high-strength 7075 aluminum collision-resistant bell.
• Smooth Performance: Equipped with high-quality NSK 9x4x4 bearings for reduced friction and extended lifespan.
• Superior Magnetics: Utilizes N52H curved arc magnets with a center-notched design for maximum efficiency and power output.
• Enhanced Protection: Incorporates the XING O-ring to protect the bearing gap from debris and impacts, and includes motor wire protection.
• Optimized for Power: With a 1750KV rating suitable for 6S systems, it delivers significant thrust and efficient power delivery.
• Dynamic Balancing: Precisely dynamically balanced for vibration-free operation at high speeds.
• Ready for Action: Comes with all necessary mounting hardware and a nylon lock nut for secure installation.

Technical Specifications

• KV Rating: 1750KV
• Shaft Material: 5mm Titanium Alloy
• Bell Material: 7075 Aluminum
• Bearings: NSK (9x4x4mm)
• Magnets: N52H Curved Arc with Center Notch
• Shaft Protection: XING O-ring
• Wire Protection: Included
• Balancing: Dynamically Balanced
• Configuration: 12N14P
• Stator: Single Copper Winding
• Weight (with wire): 30.5g
• Dimensions: φ29 x 19.25 mm
• Inter-turn Resistance: 74.23 mΩ
• Input Voltage: 25.2V (6S)
• Peak Current: 36.3A
• Max Power: 898W
• Mounting Holes: 16 x 16 mm (φ3mm)
• Rotor Type: Unibell
• Shaft Diameter: 5 mm
• Shaft Extension Length: 13.5 mm
• Lead Wire: 160mm / 20AWG

Applications

This motor is perfectly suited for high-performance FPV drones used in:

• FPV Racing
• Freestyle FPV Flying
• Cinematic FPV
• Drone Sports
• Professional UAV applications requiring high thrust and reliability

Compatibility

Designed for 6S (25.2V) LiPo battery systems. Features standard 16x16mm mounting pattern with M3 screws. The 5mm shaft diameter is compatible with most standard FPV propellers.

FAQ

What is the best application for the iFlight XING2 2207 1750KV motor?

The iFlight XING2 2207 1750KV motor is best suited for high-performance 6S FPV drones used in FPV racing and freestyle flying. Its robust construction and power output provide the responsiveness and durability needed for aggressive maneuvers.

What makes the iFlight XING2 2207 motor durable?

This motor features a 5mm titanium alloy shaft, our strongest ever, and a collision-resistant 7075 aluminum bell. It also includes an XING O-ring to protect the bearing gap, ensuring longevity even in demanding conditions.

What type of bearings are used in the iFlight XING2 2207 motor?

The iFlight XING2 2207 motor is equipped with high-quality NSK 9x4x4mm bearings. These are known for their smoothness and durability, reducing friction and ensuring consistent performance over time.

What is the KV rating, and what does it mean for my drone?

The motor has a KV rating of 1750KV, indicating it spins at 1750 revolutions per volt per minute. This makes it ideal for 6S LiPo batteries, offering a good balance of power and efficiency for FPV racing and freestyle builds.

Where can I buy the iFlight XING2 2207 1750KV motor with fast delivery?

You can buy the iFlight XING2 2207 1750KV motor at HTDRONE. We offer fast shipping within Poland and reliable worldwide delivery via DHL, ensuring you get your parts quickly.
