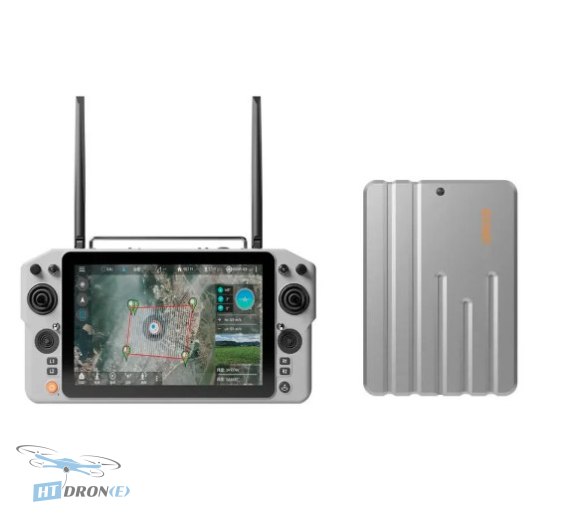

SkyDroid G30+GR03 Long Range FPV/UAV Radio Controller System
Elevate your drone operations with the SkyDroid G30+GR03 system. This advanced long-range remote control and video transmission solution is built for professional UAV applications. Featuring a Qualcomm Android platform, a sun-readable touchscreen, and dual-band 2.4GHz/5.8GHz operation, it ensures stable, high-definition video and control even in challenging environments. Ideal for demanding field operations requiring reliable data, control, and video links. Buy the best for your professional drone missions.
4712.00
| Reviews | |
| Price of consignment | 0 |
| The Availability Of |
|
Order by phone+48 666132049
| Leave your phone |
Introduction
The SkyDroid G30+GR03 is a sophisticated remote control and video transmission system engineered for professional Unmanned Aerial Vehicle (UAV) operations. Powered by the robust Qualcomm Android platform, it delivers seamless performance, reliable hardware decoding for high-definition video streams, and broad compatibility with ground station software. Its large, sun-readable touchscreen ensures excellent visibility and intuitive control outdoors, making it perfect for demanding field missions.
Key Advantages
- Android-based system for smooth operation and extensive software compatibility.
- Large, sun-readable touchscreen for clear visibility in bright outdoor conditions.
- Dual-band 2.4GHz and 5.8GHz communication with auto-frequency hopping for a stable signal and enhanced interference resistance.
- Supports high-definition digital video transmission for real-time clarity.
- Fiber optic communication capability for stable data transfer in high-interference environments.
- Rich interface support for flexible integration with various UAV platforms.
- Efficient power management for extended battery life and fast charging.
- GR03 receiver ensures broad compatibility and reliable system performance.
Technical Specifications
- Display Screen: 10.1-inch industrial touchscreen, sun-readable
- Processor: Qualcomm 6nm
- Dimensions: 346 x 196.5 x 89.4 mm
- Battery: 20000 mAh
- RAM: 8 GB
- Working Frequency Band: 2.4 GHz / 5.8 GHz
- Dynamic Frequency Band: Auto-frequency hopping
- Remote Control Range: 5-30 km (ground-to-air, line-of-sight)
- Fiber Optic Range: 20 km
- Screen Resolution: 1920 x 1200
- Computer Type: Android 14
- Weight: 1.5 kg
- Battery Life: 6-8 hours
- System Storage: 128 GB
- Number of Channels: 16
- RF Power: 23 dBm
- Working Temperature: -10°C to 55°C
- Charging Interface: TYPE-C
- External Interfaces: USB port, SIM card slot, TYPE-C/DP port, Ethernet port, PPM port, FC port
- GR03 Receiver Working Frequency Band: 2.4 GHz / 5.8 GHz
- Power Supply Voltage: 7.2V ~ 72V (XT30)
- Data Transmission Port: 2 channels
- Ethernet Port: 2 channels
- FC Interface: 1 channel
- PWM Interface: 3 channels
- Audio Output: 1 channel
- Serial Port Baud Rate: 57600/115200/921600
- Working Current: 12V/350mA
- SBUS Input: 1 channel
- GR03 Receiver Dimensions: 58.7 x 82 x 20 mm
- GR03 Receiver Weight: 120 g
- GR03 Receiver Working Temperature: -10°C to 60°C
- GR03 Receiver RF Power: 23 dBm@CE/FCC
- Transmission Rate: Upload: 200 kb/s (up to 1.2 Mb/s, affects range); Download: 10 Mb/s (up to 20 Mb/s, requires adjustment)
- Channel Bandwidth: 1.25 MHz / 2.5 MHz / 5 MHz / 10 MHz / 20 MHz / 40 MHz
Applications
This system is ideal for professional FPV and UAV applications, including aerial photography, surveying, inspection, long-range drone piloting, agricultural monitoring, and advanced drone racing where stable control and video feed are critical. Its robust design and long range make it suitable for complex missions.
Compatibility
The SkyDroid G30 controller is compatible with a wide range of Android ground station software. The GR03 receiver offers multiple interface options including data transmission ports, Ethernet, FC interface, PWM, SBUS, and audio output, ensuring flexible integration with various UAV flight controllers and platforms. Powered via XT30 connector (7.2V~72V).
FAQ
What is the maximum control range of the SkyDroid G30+GR03 system?
The SkyDroid G30 controller offers a range of 5-30 km (ground-to-air, line-of-sight). The fiber optic communication extends this capability up to 20 km, ensuring reliable links for long-distance missions.
Is the SkyDroid G30+GR03 suitable for professional aerial inspections?
Yes, the G30+GR03 system is designed for professional UAV applications. Its long-range capability, stable HD video transmission, and reliable control make it ideal for detailed aerial inspections and complex surveying tasks.
What are the key advantages of the Android platform on the SkyDroid G30?
The Android 14 platform provides a smooth user experience, extensive software compatibility with various ground station applications, and efficient hardware decoding for high-definition video streams, enhancing operational flexibility.
How does the dual-band frequency operation benefit the user?
Operating on both 2.4 GHz and 5.8 GHz bands with automatic frequency hopping, the system maintains a stable signal and significantly improves resistance to interference, ensuring a reliable connection even in electromagnetically complex environments.
Where can I buy the SkyDroid G30+GR03 system with reliable delivery?
You can order the SkyDroid G30+GR03 system from HTDRONE. We offer fast and reliable worldwide shipping via DHL, ensuring you receive your professional drone equipment promptly.
