SpeedyBee Adapter 3 Wireless FPV Drone Configurator & 30W Fast Charger

Introduction

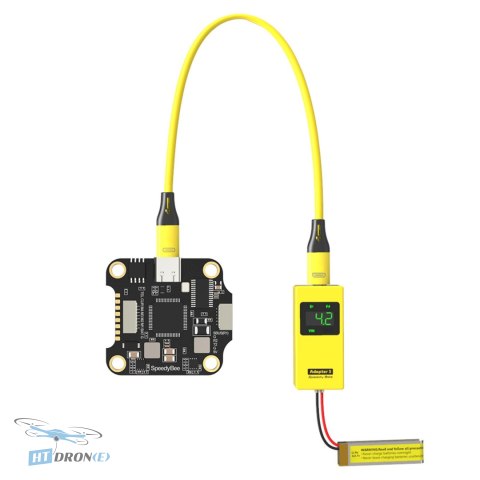

The SpeedyBee Adapter 3 revolutionizes FPV drone maintenance and charging. This compact device acts as a wireless configurator, firmware flasher, ESC flasher, and Blackbox analyzer, all controllable from your iOS or Android device. It eliminates the need for cumbersome cables, streamlining your setup and repair process. Beyond its configuration capabilities, it functions as a powerful 30W fast charger and a 1-6S LiPo battery checker, making it an indispensable tool for every FPV enthusiast.

Key Advantages

• Wireless Configuration & Flashing: Manage firmware, ESC settings, and Blackbox data wirelessly via the SpeedyBee app.

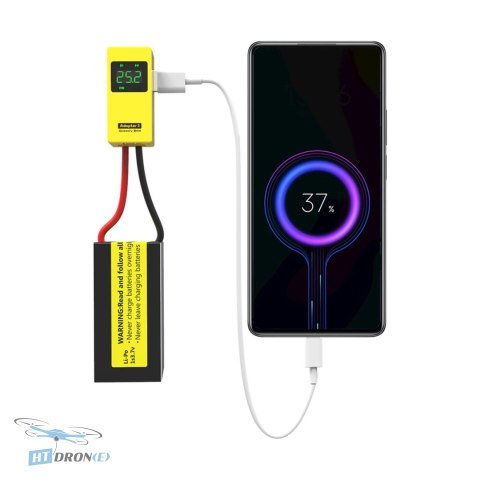

• Integrated 30W Fast Charger: Quickly charge your USB-C devices, power banks, or even your phone with QC3.0/QC2.0 and other fast-charging protocols.
• 1-6S LiPo Checker: Easily monitor the voltage of your LiPo batteries from 1S to 6S.
• Dual USB-C & Micro USB Input: Flexible power input options for maximum convenience.
• Universal Compatibility: Works seamlessly with both iOS and Android devices.
• Compact and Lightweight: Weighing only 35g, it's easy to carry and integrate into your field kit.
• Durable Construction: Made from ABS + PC for longevity.
• Efficient Power Delivery: Provides 700mA @5V for flight controllers and supports high-speed charging protocols.

Technical Specifications

• Input Voltage: 1-6S (3.8V+ for 1S)
• Power Input Connector: XT60-Male, PH2.0 Male
• Mobile Device OS Requirement: Android 7.0+ / iOS 12.0+
• SpeedyBee App Version: V1.6.1+ for iOS / V1.5.6+ for Android
• Max Current for Flight Controllers: 700mA @5V
• Fast Charging Output Interface: USB-A Port
• Minimum Input Voltage for Charging Output: 7.4V (2S LiPo)
• Supported Fast Charging Protocols: QC3.0/QC2.0, AFC, FCP, SCP/High SCP, PE2.0/PE1.1, SFCP
• Max Fast Charging Current: 3.5A
• Max Fast Charging Power: 30W
• Enclosure Material: ABS + PC
• Flexible Silicone Cable Length: 12.4 cm
• Dimensions (Main Body): 24.8x21.8x53.6mm
• Net Weight: 35g

Applications

This adapter is perfect for FPV racing pilots, freestyle enthusiasts, drone builders, and repair technicians. Use it for quick on-site firmware updates, flight controller configuration, ESC calibration, Blackbox data analysis, and charging essential gear like phones or batteries.

Compatibility

Compatible with iOS and Android devices running specific app versions. Supports 1-6S LiPo batteries for checking. Features USB-C and Micro USB input and a USB-A output for fast charging. Requires a minimum input voltage of 7.4V (2S LiPo) for the charging output.

FAQ

What is the SpeedyBee Adapter 3 and who is it for?

The SpeedyBee Adapter 3 is a versatile wireless tool for FPV pilots. It allows for wireless firmware flashing, ESC configuration, and Blackbox analysis via your smartphone. It also functions as a 30W fast charger and a 1-6S LiPo checker, ideal for both beginners and experienced drone enthusiasts.

Can I flash ESC firmware wirelessly with the SpeedyBee Adapter 3?

Yes, the SpeedyBee Adapter 3 features a dedicated wireless ESC flasher function. You can connect to your ESCs via the SpeedyBee app on your iOS or Android device to update or configure them wirelessly.

What fast charging protocols does the SpeedyBee Adapter 3 support?

The adapter supports a wide range of fast charging protocols including QC3.0/QC2.0, AFC, FCP, SCP/High SCP, PE2.0/PE1.1, and SFCP. It can deliver up to 30W of power via its USB-A output port.

How do I check my LiPo battery voltage with this adapter?

Simply connect your 1-6S LiPo battery to the appropriate input connector (XT60 or PH2.0) on the SpeedyBee Adapter 3. The adapter will then display the voltage for each cell via the SpeedyBee app, allowing you to easily check their status.
