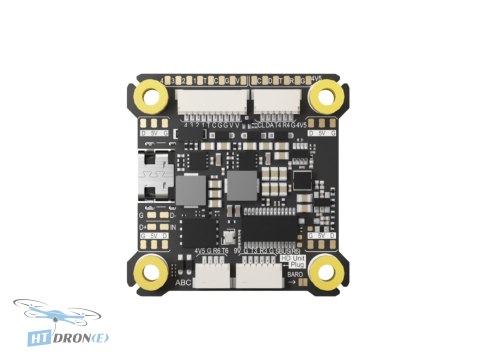

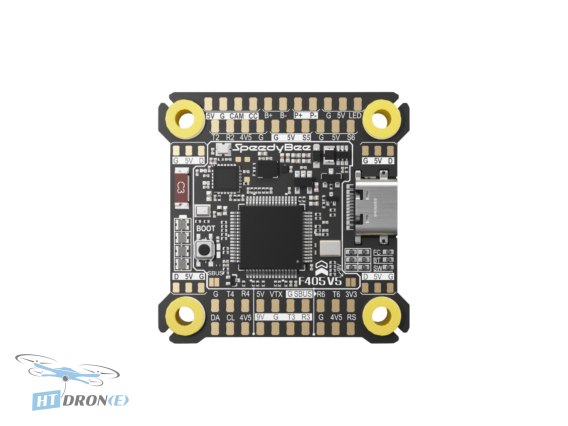

SpeedyBee F405 V5 Flight Controller 30.5x30.5mm for FPV Drones

Introduction

The SpeedyBee F405 V5 is a cutting-edge flight controller designed for FPV pilots who demand exceptional performance, wireless convenience, and broad system compatibility. This FC integrates powerful processing capabilities, onboard storage, and both Bluetooth and Type-C connectivity, making setup and tuning in the field quick and effortless. It's the ideal choice for building high-performance FPV drones, offering a blend of advanced features and user-friendly operation.

Key advantages

• Wireless Bluetooth configuration and firmware updates via the SpeedyBee App.
• Direct 6-pin connection compatibility with DJI Air Unit.
• Integrated 16MB Blackbox for detailed flight data logging and tuning.
• Convenient Type-C USB port for reliable wired connections.
• Multiple adjustable power outputs (5V, 9V, 3.3V, 4.5V) for clean power delivery to subsystems.
• Supports popular flight software: Betaflight, INAV, and Ardupilot.
• Flexible LED control options, including ST-LED and Meteor LED Strip support.
• Standard 30.5x30.5mm mounting pattern for wide frame compatibility.

Technical specifications

• Product Name: SpeedyBee F405 V5 Flight Controller
• MCU: STM32F405
• IMU (Gyro): ICM42688P
• USB Port Type: Type-C
• Barometer: SPA06-003
• OSD Chip: AT7456E
• Bluetooth Configuration: Fully supported via SpeedyBee App
• Wireless FC Firmware Update: Supported
• DJI Air Unit Connection: 6-pin direct or solder connection
• Blackbox: Supported, 16MB onboard memory
• Input Voltage: 3-6S LiPo Battery
• 5V BEC Output: 9 groups, 1.5A total current
• 9V BEC Output: 2 groups, 3A total current, supports remote PINIO switch
• 3.3V Output: 1 group
• 4.5V Output: 3 groups, 1A max current
• ESC Signal: M1-M4 pads & 10-pin connector
• Servo Signal: S5-S6 pads
• ESC Telemetry Input: Supported (UART5)
• Betaflight Camera Tuning: Supported
• I2C: Supported (GPS & LED boards connector)
• UARTs: UART1 (Bluetooth), UART2 (RX), UART3 (DJI VTX & rear SH1.0-6pin), UART4 (GPS & front SH1.0-6pin), UART5 (TLM), UART6 (RX & rear SH1.0-4pin)
• ST LED Pads: Supported
• Meteor LED Strip Pads: Supported
• Buzzer Pads: Supported
• BOOT Button: DFU mode, LED mode switching
• RSSI Pads: Supported
• SmartPort: Not Supported
• Supported FC Software: Betaflight, INAV, Ardupilot
• FC Software Target Name: SPEEDYBEEF405V5
• Factory Firmware Version: Betaflight 4.5.2
• Configurator Version: Betaflight 10.10.0
• Mounting Holes: 30.5x30.5mm (Ø4mm), side-open
• Dimensions: 39x39x4.9mm
• Weight: 8.1g

Applications

This flight controller is versatile and suitable for a wide range of FPV applications, including freestyle, racing, cinematic FPV, and building custom UAV platforms. Its robust features make it ideal for pilots looking to push performance boundaries and experiment with advanced setups.

Compatibility

Features a standard 30.5x30.5mm mounting pattern compatible with most FPV drone frames. Offers direct 6-pin connection for DJI Air Units and multiple UARTs for various peripherals like GPS, receivers, and VTXs. Provides multiple BEC outputs (5V, 9V, 3.3V, 4.5V) for powering components.

FAQ

What are the main advantages of the SpeedyBee F405 V5 flight controller?

The SpeedyBee F405 V5 offers key advantages like wireless Bluetooth configuration, direct DJI Air Unit compatibility, an integrated 16MB Blackbox for tuning, and multiple adjustable power outputs. It supports Betaflight, INAV, and Ardupilot, making it a versatile choice for FPV builds.

Can I update the firmware wirelessly on the SpeedyBee F405 V5?

Yes, the SpeedyBee F405 V5 supports wireless firmware updates for the flight controller directly through the SpeedyBee App via Bluetooth. This makes maintenance and upgrades incredibly convenient.

What is the mounting size for the SpeedyBee F405 V5?

The SpeedyBee F405 V5 features a standard 30.5x30.5mm mounting pattern with 4mm mounting holes, ensuring compatibility with most FPV drone frames and stacks.

How does the SpeedyBee F405 V5 connect to the DJI Air Unit?

It offers a direct 6-pin connection for the DJI Air Unit, simplifying installation. Solder connections are also an option if preferred.
