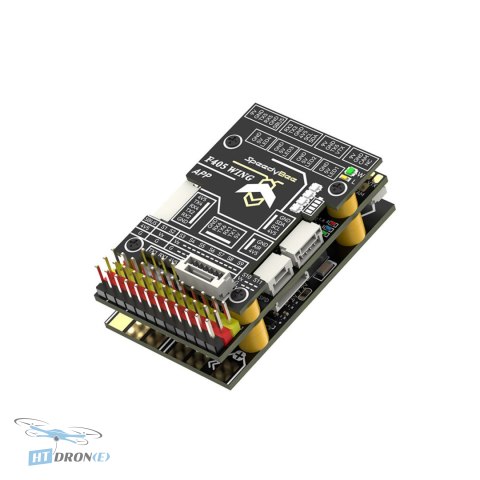

SpeedyBee F405 WING APP Flight Controller for Fixed Wing Drones

Introduction

The SpeedyBee F405 WING APP Flight Controller is a cutting-edge solution designed specifically for fixed-wing FPV and UAV applications. It simplifies the build and configuration process with its advanced wireless capabilities, allowing for quick setup and adjustments without the hassle of cables or drivers. This controller is ideal for hobbyists and professionals looking for a reliable and feature-rich flight control system for their fixed-wing aircraft.

Key Advantages

• Easy, wireless configuration via Speedybee app and QGroundcontrol.
• Supports BLE, Wi-Fi, and classic Bluetooth connectivity.
• Integrated LED strip controller with 4x WS2812 connectors.
• Dual firmware support: INAV (default) for FPV, Ardupilot for advanced functions.
• Includes dedicated power outputs for various components (FC, VTX, Servos).
• Onboard barometer for accurate altitude readings.
• MicroSD card slot for black box flight data logging.
• Fast international delivery available from HTDRONE.

Technical Specifications

• Product Name: SpeedyBee F405 WING FC Board
• MCU: STM32F405, 168MHz, 1MB Flash
• IMU (Gyro & Accelerometer): ICM-42688-P
• Barometer: SPL006-001
• OSD Chip: AT7456E
• Black Box: MicroSD Card Slot
• UARTs: 6 sets (USART1, USART2, USART3, UART4, UART5, UART6)
• I2C: 1x (for magnetometer, digital airspeed sensor)
• ADC: 4x (VBAT, Current, RSSI, Analog Airspeed Sensor)
• PWM: 12x (11+1 LED pad)
• ELRS/CRSF Receiver: Supported (connected to UART1)
• SBUS: Built-in inverter for SBUS input (UART2-RX)
• LED Indicators: 3x FC STATUS LEDs, 1x RGB LED
• RSSI: Supported (named RS)
• Supported FC Firmware: INAV:SpeedyBeeF405WING (default) / ArduPilot: SpeedyBeeF405WING
• Weight (FC Board): 8.9g

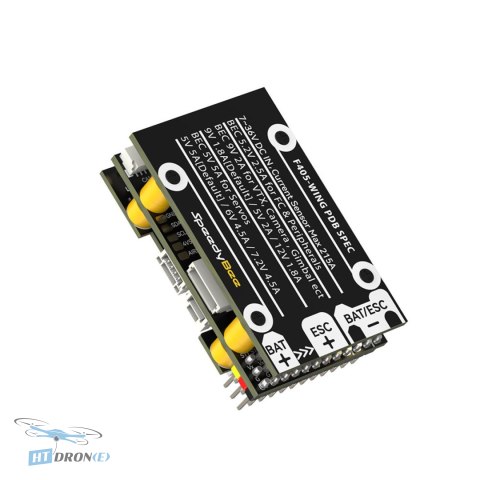

• Product Name: SpeedyBee F405 WING PDB Board
• Input Voltage: 7~36V (2~6S LiPo)
• Battery Voltage Sensor: Connected to FC VBAT
• Battery Current Sensor: 90A continuous, 215A peak
• TVS Protection Diode: Yes
• FC BEC Output: 5.2V +/- 0.1V DC, 2.4A continuous, 3A peak
• VTX BEC Output: 9V +/- 0.1V DC, 1.8A continuous, 2.3A peak (Adjustable: 9V, 12V, or 5V)
• Servo BEC Output: 4.9V +/- 0.1V DC, 4.5A continuous, 5.5A peak (Adjustable: 4.9V, 6V, or 7.2V)
• Weight (PDB Board): 11.4g
• Product Name: SpeedyBee F405 WING Wireless Board
• Wireless Configuration Modes: BLE (Speedybee App), Wi-Fi (QGroundControl, Speedybee App, MissionPlanner), Classic Bluetooth SPP
• LED Strip Controller: 4x WS2812 LED strip connectors (adjustable colors/modes)
• Max LED Power: 5.2V 1.3A (approx. 70x WS2812 LEDs)
• Battery Level Indicator: 4x RGB LED indicators
• Weight (Wireless Board): 4.2g

Applications

This flight controller is perfectly suited for a wide range of fixed-wing aircraft, including FPV racing wings, long-range exploration drones, aerial photography platforms, and autonomous UAVs. Its versatile firmware options (INAV and Ardupilot) cater to both FPV enthusiasts and professional drone operators who require advanced flight stabilization, automatic takeoff, wing racing capabilities, and formation flight functionalities.

Compatibility

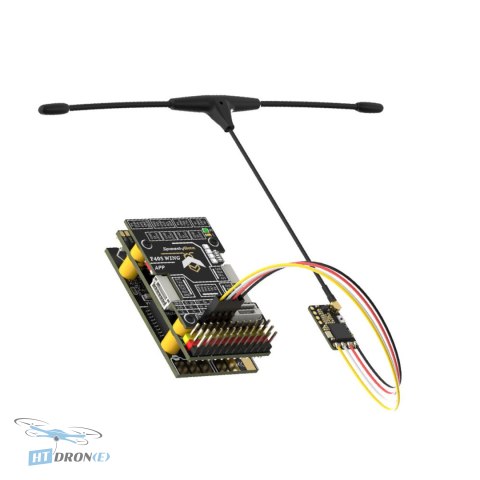

The SpeedyBee F405 WING APP is compatible with ELRS/CRSF receivers connected via UART1 and SBUS receivers via UART2. It features multiple UART ports for various peripherals like GPS, airspeed sensors, and telemetry modules. The onboard BECs provide stable power for the FC, receiver, GPS, VTX (analog/digital), camera, and servos. It supports various input voltages from 7V to 36V (2S-6S LiPo batteries).

FAQ

What are the main benefits of the SpeedyBee F405 WING APP Flight Controller?

The SpeedyBee F405 WING APP offers significant advantages like easy wireless configuration via Bluetooth and Wi-Fi, eliminating the need for data cables. It supports both INAV and Ardupilot firmware, providing flexibility for FPV or advanced autonomous flight. The integrated PDB and LED controller simplify the build process.

Can I configure this flight controller wirelessly?

Yes, the SpeedyBee F405 WING APP supports wireless configuration through its built-in BLE, Wi-Fi, and classic Bluetooth modules. You can connect using the Speedybee app or QGroundcontrol for seamless setup and adjustments.

What firmware options are available for the SpeedyBee F405 WING APP?

This flight controller comes with dual firmware support. It is pre-flashed with INAV, which is excellent for FPV flight, and it also supports Ardupilot for more advanced capabilities like autonomous missions and complex flight modes.

What are the power specifications for the PDB board included?

The PDB board supports an input voltage range of 7-36V (2S-6S LiPo). It features a 5.2V BEC for the FC and receiver, a 9V BEC for VTX and cameras, and an adjustable 4.9V/6V/7.2V servo BEC. It also includes a 90A continuous current sensor.

Where can I buy the SpeedyBee F405 WING APP Flight Controller with fast delivery?

You can buy the SpeedyBee F405 WING APP Flight Controller at HTDRONE. We are based in Poland and offer fast shipping within Poland and reliable delivery to Ukraine via Nova Poshta. Worldwide shipping is also available via DHL.
