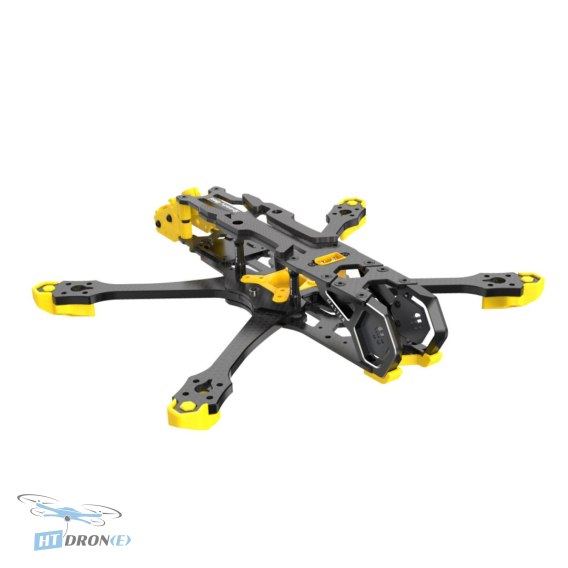

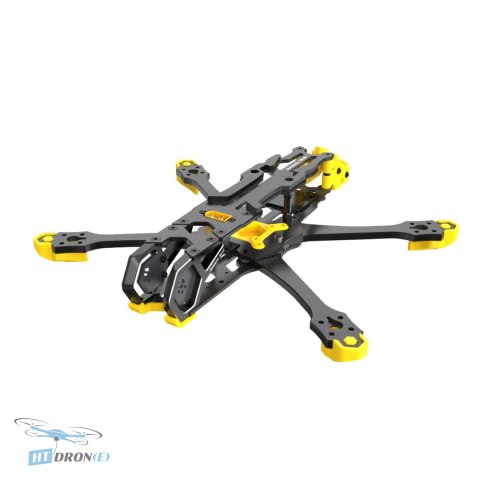

SpeedyBee Master 5 HD FPV Drone Frame - Yellow, 225mm Wheelbase, for Freestyle

Introduction

The SpeedyBee Master 5 HD Frame is meticulously designed for FPV freestyle pilots seeking superior performance and durability. This yellow frame, part of the Master 5 series, incorporates advanced features to enhance flight stability and camera clarity. Its innovative anti-vibration system protects sensitive electronics, while the adaptable camera mounting system offers flexibility for various camera setups. It's the ideal choice for pilots looking to build a high-performance FPV drone optimized for freestyle maneuvers and HD FPV transmission.

Key advantages

• Innovative anti-vibration stack design protects the FC gyroscope from vibrations.
• Detachable camera mounting plate supports multiple mounting holes for camera customization.
• Optimized for DJI O3 Air Unit with included CNC mount and extended coaxial cable support.
• Durable construction with 5mm thick arms and 2.5mm top/bottom plates for resilience.
• Wide X wheelbase (225mm) provides excellent stability and control for freestyle flying.
• Supports 5-5.1 inch propellers for powerful flight characteristics.
• Versatile mounting options for FC (30.5x30.5mm, 20x20mm) and VTX (30.5x30.5mm, 20x20mm).
• Lightweight design at 143g (excluding 3D TPU parts).

Technical specifications

• Model: SpeedyBee Master 5 HD Frame
• Color: Yellow
• Wheelbase: Wide X, 225 mm
• Weight: 143 g (3D TPU parts not included)
• View Status: DJI O3 without props in view
• Mounting: CNC DJI O3 Air Unit Mount included
• Coaxial Cable: Supports Extended DJI O3 Air Unit Coaxial Cable
• Top Plate Thickness: 2.5 mm
• Bottom Plate Thickness: 2.5 mm
• Middle Plate Thickness: 2 mm
• Arm Thickness: 5 mm
• Camera Width: 19-20 mm
• Anti-Vibration Stack Hardness: Yellow HB50 TPU, White HB30 TPU
• Motor Mount: 16x16mm, 8mm hole diameter
• Suitable Propeller Size: 5-5.1 inch
• FC Mounting Holes: 30.5x30.5 mm (M3), 20x20 mm (M3)
• VTX Mounting Holes: 30.5x30.5 mm (M3), 20x20 mm (M2)
• Camera Mount Material: 7075 Aluminum Alloy
• Internal Mounting Height: 23-30 mm
• Antenna Installation Support: DJI O3 4mm/SMA dual hole
• GPS Base Size: Standard 20x22x6mm
• DJI Air Unit: Optional 3D printed TPU mounting parts
• Adaptations: RunCam Link Wasp, XT-60E M

Applications

This frame is primarily designed for FPV freestyle piloting, offering stability, durability, and the flexibility to customize your setup. It is also suitable for cinematic FPV flying where smooth HD footage is desired, and can be adapted for various FPV camera systems beyond the DJI O3 Air Unit.

Compatibility

The SpeedyBee Master 5 HD Frame features versatile mounting options for Flight Controllers (30.5x30.5mm and 20x20mm) and VTX units (30.5x30.5mm and 20x20mm). It is compatible with 19-20mm width cameras and supports standard DJI O3 Air Unit components. It also accommodates optional 3D printed TPU parts for mounting accessories like GPS modules and different FPV cameras such as RunCam Link Wasp. This frame supports motor mounting patterns of 16x16mm.

FAQ

What is the SpeedyBee Master 5 HD Frame designed for?

The SpeedyBee Master 5 HD Frame is primarily designed for FPV freestyle piloting, offering enhanced stability, vibration dampening, and flexibility for custom builds. It's ideal for pilots looking to achieve smooth aerial maneuvers and capture high-quality HD footage.

Does this SpeedyBee frame include the DJI O3 Air Unit cable?

No, this specific product listing for the SpeedyBee Master 5 HD Frame (Yellow, without cable) does not include the additional 170mm/200mm cable for the DJI Air Unit. You may need to purchase this separately if required for your build.

What is the wheelbase of the SpeedyBee Master 5 HD Frame?

The SpeedyBee Master 5 HD Frame features a Wide X configuration with a wheelbase of 225mm. This provides a stable platform suitable for 5-inch propellers and aggressive freestyle flying.

What type of camera can be mounted on this SpeedyBee frame?

This frame supports cameras with a width of 19-20mm and includes a detachable mounting plate open to modifications. It comes with a CNC mount for the DJI O3 Air Unit and can be adapted for other FPV cameras.

Where can I buy the SpeedyBee Master 5 HD Frame with fast delivery?

You can buy the SpeedyBee Master 5 HD Frame at HTDRONE, our specialized FPV drone parts store based in Poland. We offer fast shipping within Poland and reliable worldwide delivery via DHL. Check our shop for the best deals!
