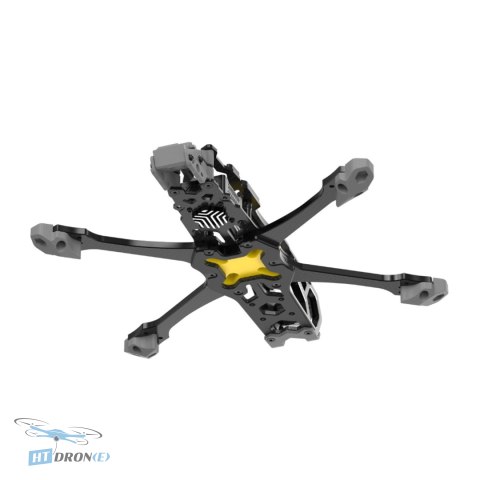

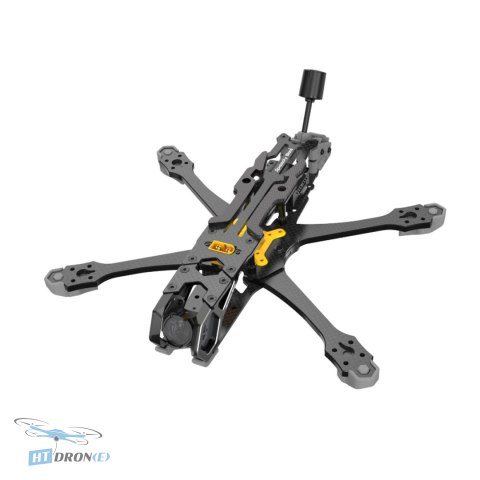

SpeedyBee Master 5 HD FPV Frame (Gray) - 225mm Wide X for Freestyle Drones

Introduction

The SpeedyBee Master 5 HD Frame in Gray is meticulously designed for the demanding world of FPV freestyle piloting. It addresses common issues like vibration and camera mounting flexibility, offering a robust and adaptable platform for your custom drone build. This frame is ideal for pilots looking to upgrade their existing setup or build a new high-performance freestyle machine with advanced digital FPV systems.

Key advantages

• Innovative anti-vibration stack design significantly reduces gyroscope noise for smoother flight control.
• Detachable camera mounting plate offers extensive modification options with multiple mounting holes for diverse camera choices.

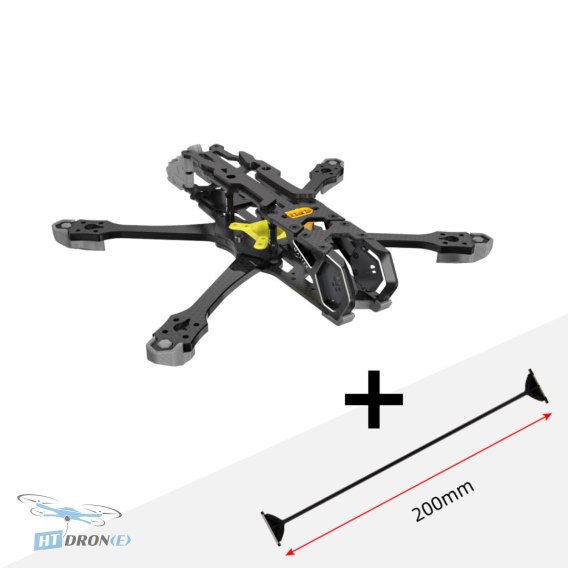

• Includes a 200mm extended coaxial cable, perfect for seamless integration with DJI Air Unit V1, Link, or Vista systems.
• Durable construction with 5mm thick arms and 2.5mm top/bottom plates ensures resilience during intense freestyle maneuvers.
• Wide X configuration (225mm wheelbase) provides excellent stability and agility for dynamic flying.
• CNC-machined DJI O3 Air Unit mount for secure and precise installation.
• Optimized mounting options for FC (30.5x30.5mm, 20x20mm) and VTX (30.5x30.5mm, 20x20mm).
• Generous internal mounting height (23-30mm) accommodates various components.

Technical specifications

• Model: SpeedyBee Master 5 HD Frame
• Color: Gray
• Wheelbase: Wide X, 225 mm
• Weight: 143 g (excluding 3D TPU parts)
• View Condition: DJI O3 without props in view
• DJI O3 Air Unit Mount: CNC included
• DJI O3 Air Unit Cable: Extended 200mm coaxial cable
• Top Plate Thickness: 2.5 mm
• Bottom Plate Thickness: 2.5 mm
• Middle Plate Thickness: 2 mm
• Arm Thickness: 5 mm
• Camera Width: 19-20 mm
• Anti-vibration Stack Hardness: Yellow HB50 TPU, White HB30 TPU
• Motor Mount: 16x16mm, 8mm hole diameter
• Suitable Propeller Size: 5-5.1 inch
• FC Mounting Holes: 30.5x30.5 mm (M3), 20x20 mm (M3)
• VTX Mounting Holes: 30.5x30.5 mm (M3), 20x20 mm (M2)
• Camera Mount Material: 7075 Aluminum Alloy
• Internal Mounting Height: 23-30 mm
• Antenna Installation Support: DJI O3 4mm/SMA dual hole
• Standard GPS Base Size: 20x22x6mm
• DJI Air Unit: Optional 3D printed TPU mounting parts
• RunCam Link Wasp: Adaptation
• XT-60E M: Adaptation

Applications

This frame is primarily designed for FPV freestyle flying, offering stability, agility, and durability for acrobatic maneuvers and cinematic shots. It's also suitable for general FPV drone builds where robust component protection and flexible mounting are essential.

Compatibility

This frame supports a wide range of FPV components, including standard 5-5.1 inch propellers, 16x16mm motor mounts, 30.5x30.5mm and 20x20mm FC stacks, and 30.5x30.5mm/20x20mm VTX mounting. The included 200mm cable ensures compatibility with DJI Air Unit V1, Link, and Vista systems. It also accommodates 19-20mm cameras and standard GPS modules.

FAQ

What is the main purpose of the SpeedyBee Master 5 HD Frame?

The SpeedyBee Master 5 HD Frame is specifically designed for FPV freestyle piloting. Its key features, like the anti-vibration stack and adaptable camera mount, aim to provide a stable, durable, and customizable platform for high-performance freestyle drones.

What digital FPV systems is this frame compatible with?

This frame is designed to be compatible with popular digital FPV systems. It includes a 200mm extended cable suitable for DJI Air Unit V1, Caddx Vista, and Walksnail Avatar HD systems, ensuring flexible integration.

What are the key technical specifications of the SpeedyBee Master 5 HD Frame?

The frame features a 225mm Wide X wheelbase, 5mm thick arms, and 2.5mm thick top/bottom plates for durability. It supports 16x16mm motor mounts, 30.5x30.5mm and 20x20mm FC stacks, and accommodates 19-20mm cameras.

Does the SpeedyBee Master 5 HD Frame include an anti-vibration system?

Yes, the Master 5 HD Frame incorporates an innovative anti-vibration stack design using HB50 and HB30 TPU hardness. This system effectively dampens vibrations transferred to the flight controller's gyroscope, leading to smoother flight characteristics.
