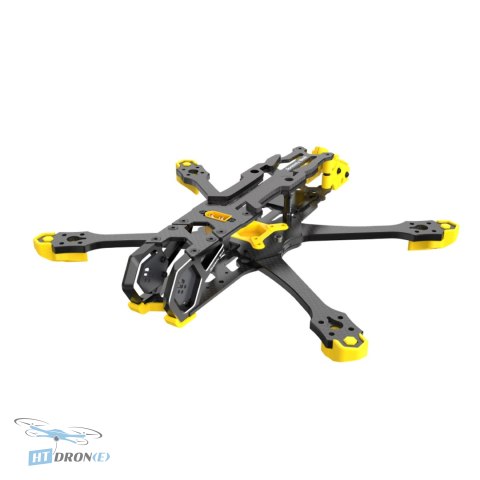

SpeedyBee Master 5 HD FPV Frame Yellow for Freestyle with 200mm Link/Vista Cable

Introduction

The SpeedyBee Master 5 HD Frame in yellow is meticulously designed for the demanding world of FPV freestyle. It addresses common FPV issues like gyroscope vibration with its unique anti-vibration stack structure, ensuring smoother flight and clearer footage. The adaptable camera mounting system allows for easy customization, supporting a wide range of FPV cameras and providing flexibility for future upgrades. This frame is the ideal choice for pilots looking to build a robust and high-performing freestyle rig.

Key Advantages

• Optimized for FPV freestyle flying for superior performance.
• Innovative anti-vibration stack design protects the FC gyroscope from turbulence.
• Detachable camera mounting plate with multiple holes for versatile camera compatibility.

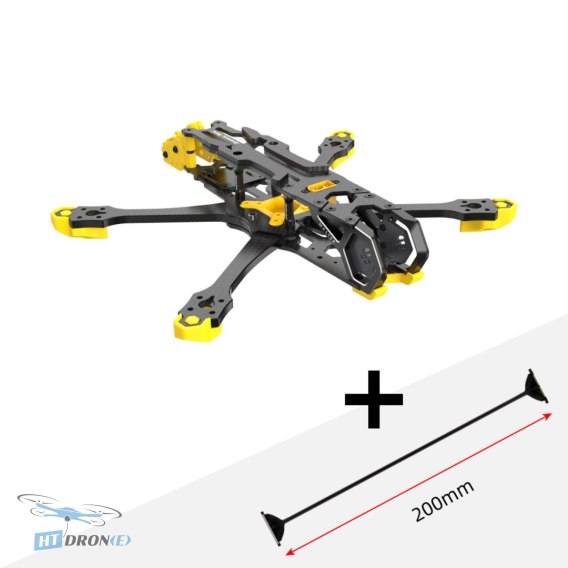

• Includes a 200mm extension coaxial cable, specifically for DJI Link/Vista/Air Unit V1.
• Durable construction with 5mm thick arms and 2.5mm top/bottom plates.
• Wide X wheelbase (225mm) for enhanced stability and control.
• CNC DJI O3 Air Unit mount included for seamless integration.
• Supports popular FPV camera sizes (19-20mm) and FC mounting patterns (30.5x30.5mm, 20x20mm).

Technical Specifications

• Model: SpeedyBee Master 5 HD Frame
• Color: Yellow
• Wheelbase: Wide X, 225 mm
• Weight: 143 g (3D TPU parts not included)
• View Condition: DJI O3 without props in view
• Mounting: CNC DJI O3 Air Unit mount included
• Coaxial Cable: Extended 200mm coaxial cable for DJI O3 Air Unit
• Top Plate Thickness: 2.5 mm
• Bottom Plate Thickness: 2.5 mm
• Middle Plate Thickness: 2 mm
• Arm Thickness: 5 mm
• Camera Width: 19-20 mm
• Anti-vibration Stack Hardness: Yellow HB50 TPU, White HB30 TPU
• Motor Mount: 16x16mm, 8mm hole diameter
• Propeller Size: 5-5.1 inch
• FC Mounting Holes: 30.5x30.5 mm (M3), 20x20 mm (M3)
• VTX Mounting Holes: 30.5x30.5 mm (M3), 20x20 mm (M2)
• Camera Mount Material: 7075 Aluminum Alloy
• Internal Mounting Height: 23-30 mm
• Antenna Installation Support: DJI O3 4mm/SMA dual hole
• GPS Base Size: Standard 20x22x6mm
• DJI Air Unit: Optional 3D printed TPU mounting parts
• RunCam Link Wasp: Adaptation
• XT-60E M: Adaptation

Applications

This frame is primarily designed for FPV freestyle acrobatics and cinematic FPV flying. Its robust construction and vibration dampening make it suitable for high-energy maneuvers, capturing smooth aerial footage, and general FPV drone exploration. It's also adaptable for various FPV setups including those using DJI digital FPV systems.

Compatibility

The SpeedyBee Master 5 HD Frame is compatible with a wide range of FPV components. It supports standard 19-20mm FPV cameras, 5-5.1 inch propellers, and offers flexible FC mounting options for both 30.5x30.5mm and 20x20mm stacks. The included 200mm cable is specifically for DJI Air Unit V1, DJI Vista, and DJI Link. It also supports standard GPS modules and features adaptable mounting for components like the RunCam Link Wasp and XT-60E M.

FAQ

What is the main application for the SpeedyBee Master 5 HD Frame?

The SpeedyBee Master 5 HD Frame is primarily designed for FPV freestyle flying, offering enhanced stability and control for acrobatic maneuvers and cinematic shots. Its durable construction and vibration dampening make it ideal for demanding FPV pilots.

Does the SpeedyBee Master 5 HD Frame come with a cable for DJI Air Units?

Yes, this specific yellow version of the SpeedyBee Master 5 HD Frame includes a 200mm extended coaxial cable, perfectly suited for DJI Air Unit V1, DJI Vista, and DJI Link systems.

What are the key technical features of the SpeedyBee Master 5 HD Frame?

Key features include a 225mm Wide X wheelbase, 5mm thick arms, a 7075 aluminum alloy camera mount, and an innovative anti-vibration stack. It supports 5-5.1 inch propellers and offers versatile FC mounting options (30.5x30.5mm and 20x20mm).

Where can I buy the SpeedyBee Master 5 HD Frame with fast delivery?

You can buy the SpeedyBee Master 5 HD Frame at HTDRONE. We offer fast shipping within Poland and reliable delivery to Ukraine via Nova Poshta, as well as worldwide shipping via DHL.

Is the SpeedyBee Master 5 HD Frame suitable for beginners?

While designed for freestyle, its robust build and clear specifications make it a solid choice for intermediate pilots looking to upgrade. Beginners might find its advanced features beneficial for learning advanced techniques.
