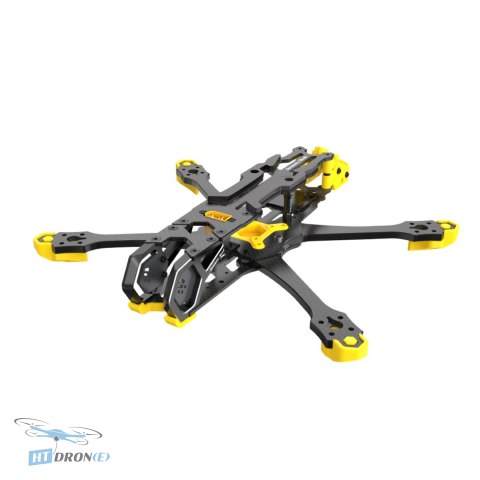

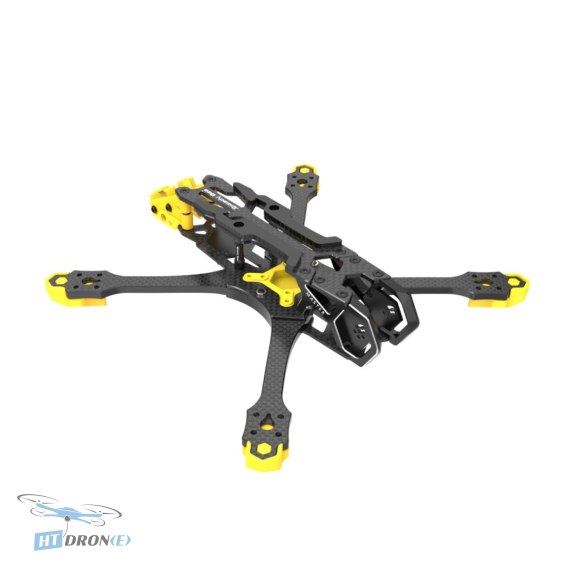

SpeedyBee Master 5 Yellow FPV Freestyle Frame Kit 222mm

Introduction

The SpeedyBee Master 5 Frame in Yellow is specifically designed for the demanding world of FPV freestyle piloting. This frame offers an advanced solution for managing vibrations, ensuring your flight controller operates with maximum precision. Its adaptable camera mounting system and robust construction make it an ideal choice for pilots looking to push their freestyle capabilities to the next level.

Key advantages

• Innovative anti-vibration stack design protects the FC gyroscope from unwanted vibrations.
• Detachable camera mounting plate allows for extensive customization and supports multiple mounting hole configurations.
• Optimized for DJI O3 Air Unit with factory-adapted coaxial cable length for a clean build.
• Durable 5mm thick arms provide stability and resilience for aggressive flying styles.
• Supports a wide range of FPV camera sizes (19-20mm) and popular FC/VTX mounting standards (30.5x30.5mm, 20x20mm).
• Robust 7075 aluminum alloy camera mount offers superior durability.
• Compact 222mm wheelbase provides a balanced flight profile for freestyle maneuvers.
• Designed for 5-5.1 inch propellers for optimal thrust and control.

Technical specifications

• Model: SpeedyBee Master 5 Frame
• Color: Yellow
• Wheelbase: 222mm
• Weight: 130g (excluding 3D TPU parts)
• View Angle: DJI O3 with props in view
• DJI O3 Air Unit Coaxial Cable: Factory length adaptation
• Top Plate Thickness: 2.5mm
• Bottom Plate Thickness: 2.5mm
• Middle Plate Thickness: 2mm
• Arm Thickness: 5mm
• Camera Width: 19-20mm
• Anti-vibration Stack Hardness: Yellow HB50 TPU, White HB30 TPU
• Motor Mount: 16x16mm, 8mm hole diameter
• Suitable Propeller Size: 5-5.1 inch
• FC Mounting Holes: 30.5x30.5mm (M3), 20x20mm (M3)
• VTX Mounting Holes: 20x20mm (M2)
• Camera Mount Material: 7075 Aluminum Alloy
• Internal Mounting Height: 23-30mm
• Standard Antenna Mount: DJI O3 4mm/SMA dual hole
• Standard GPS Base Size: 18x18x6mm
• DJI Air Unit Support: No
• RunCam Link Wasp Support: Adaptation
• XT-60E M Support: No

Applications

This frame is perfectly suited for FPV freestyle flying, cinematic FPV, and general aerial photography where stability and maneuverability are key. It's designed to integrate seamlessly with modern FPV components, including the DJI O3 Air Unit.

Compatibility

The SpeedyBee Master 5 Frame is compatible with a wide range of FPV components. It features mounting holes for 30.5x30.5mm and 20x20mm flight controllers, 20x20mm VTXs, and 16x16mm motors. The camera mount accommodates 19-20mm cameras, and it includes specific provisions for the DJI O3 Air Unit antenna and GPS modules. RunCam Link Wasp compatibility is also provided through adaptation.

FAQ

What is the primary application for the SpeedyBee Master 5 Yellow Frame?

The SpeedyBee Master 5 Yellow Frame is primarily designed for FPV freestyle flying. Its robust construction, anti-vibration system, and compatibility with modern components like the DJI O3 Air Unit make it ideal for pilots looking to perform advanced aerial maneuvers and capture dynamic footage.

What flight controller and VTX mounting sizes does the SpeedyBee Master 5 frame support?

This frame supports both 30.5x30.5mm (M3) and 20x20mm (M3) mounting standards for flight controllers. For VTX mounting, it accommodates the 20x20mm (M2) standard, offering flexibility for various electronic setups.

How does the SpeedyBee Master 5 frame handle vibrations?

The frame features an innovative anti-vibration stack design using TPU materials (Yellow HB50 and White HB30) to effectively dampen vibrations. This significantly reduces interference transmitted to the flight controller's gyroscope, leading to smoother flight performance and more stable video recording.

Can I mount a DJI O3 Air Unit on the SpeedyBee Master 5 frame?

Yes, the SpeedyBee Master 5 frame is designed with DJI O3 Air Unit compatibility in mind. It includes factory adaptation for the coaxial cable length and standard mounting for the O3 antenna, ensuring a clean and efficient installation.

Where can I buy the SpeedyBee Master 5 Yellow Frame with fast delivery?

You can buy the SpeedyBee Master 5 Yellow Frame at HTDRONE. We are based in Poland and offer fast shipping within Poland and reliable international delivery via DHL. Check our store for the best deals and order yours today!
