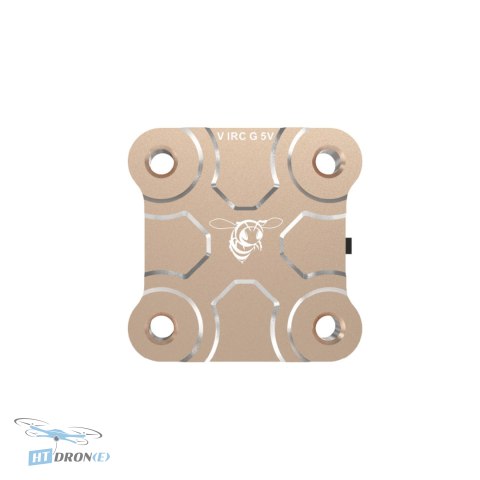

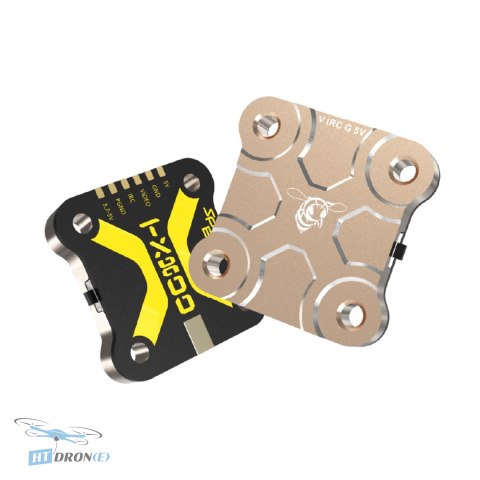

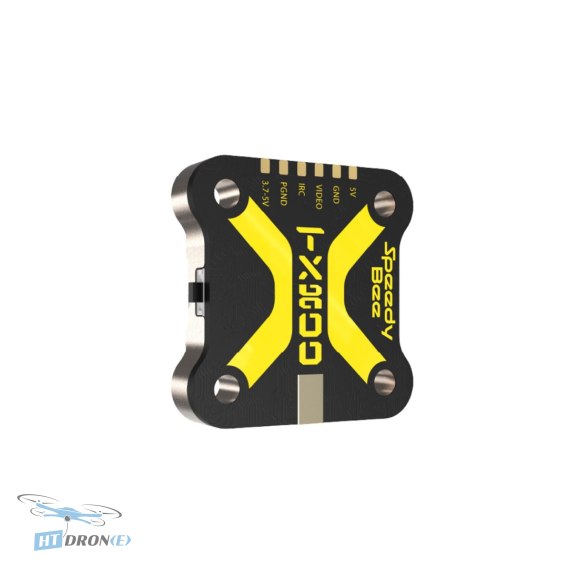

SpeedyBee VTX SpeedyBee TX800 5.8G 800mW FPV Transmitter

Introduction

The SpeedyBee TX800 is a high-performance 5.8GHz FPV video transmitter designed for drone enthusiasts who demand power and control. Despite its small size and 20x20mm mounting footprint, it offers a robust 800mW output power. An integrated heatsink ensures efficient thermal management, protecting sensitive electronics during intense flights. This VTX is perfect for custom FPV builds where space and performance are critical.

Key advantages

• Up to 800mW of adjustable power output for clear, long-range video transmission.
• Compact 20x20mm mounting pattern, ideal for small and agile FPV drones.

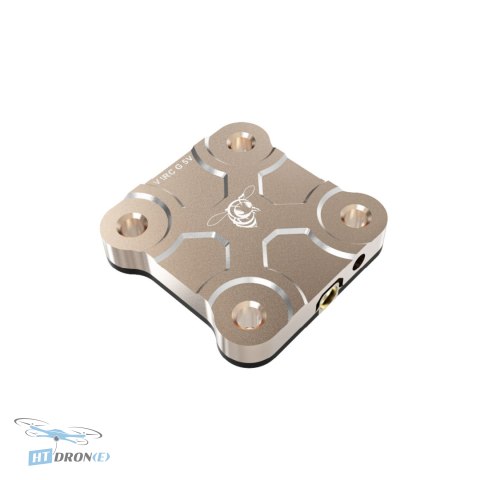

• Integrated heatsink for superior thermal management and durability.
• Supports IRC TRAMP protocol for easy parameter adjustments via remote control.
• Adjustable frequency, power, and other settings through the SpeedyBee app via Bluetooth/WiFi.
• Wide input voltage range (3.7-5.5V) for flexible power options.
• Standard MMCX antenna connector for secure and reliable connections.
• Lightweight design at only 5.6g (without antenna).

Technical specifications

• Frequency Band: 5.8GHz
• Channels: 48CH
• Output Power: PIT/25mW/200mW/400mW/800mW
• Operating Current: 5V@250-750mA
• Video Output Voltage: 5V@max 250mA
• Input Voltage: 3.7-5.5V
• Video Input Impedance: 75 Ohm
• Antenna Connector: MMCX
• Weight: 5.6g (without antenna)
• PCB Size: 28x28mm
• Mounting Pattern: 20x20mm with M2 screws

Applications

The SpeedyBee TX800 is versatile and suitable for a wide range of FPV applications, including competitive drone racing, freestyle FPV flying, cinematic FPV drones, and general UAV operations requiring reliable video downlink. Its adjustable power output makes it adaptable for different flying environments and ranges.

Compatibility

This VTX is compatible with flight controllers supporting the IRC TRAMP protocol. It can be configured via remote control or through the SpeedyBee mobile application using Bluetooth or WiFi connectivity, provided the flight controller has these capabilities. The standard MMCX connector ensures compatibility with most 5.8GHz FPV antennas.

FAQ

What is the maximum power output of the SpeedyBee TX800 VTX?

The SpeedyBee TX800 VTX offers a maximum output power of 800mW. It also supports PIT, 25mW, 200mW, and 400mW modes, allowing you to adjust power based on your needs and regulations.

How can I change the settings on the SpeedyBee TX800?

You can change the frequency and power settings using the IRC TRAMP protocol directly from your remote control. Alternatively, if your flight controller supports Bluetooth or WiFi, you can use the SpeedyBee mobile app for convenient adjustments.

What is the mounting pattern for the SpeedyBee TX800?

The SpeedyBee TX800 features a compact 20x20mm mounting pattern with M2 screw holes, making it suitable for smaller FPV drone frames and builds where space is limited.

What type of antenna connector does the SpeedyBee TX800 use?

The SpeedyBee TX800 utilizes a standard MMCX antenna connector. This provides a secure and reliable connection for your 5.8GHz FPV antenna.
