SunnySky X2-series Combo 3: X2820 III-KV860 Motor, 60A ESC, and EOLO 13x7 Propellers for RC Airplanes

Introduction

The SunnySky X2-series Combo 3 is an exceptional performance package designed for RC models, offering a synergistic blend of power, efficiency, and control. This combo is perfect for RC airplane enthusiasts looking to upgrade their existing setup or build a new aircraft with a reliable and potent power system. It solves the common need for a matched motor, ESC, and propeller combination that guarantees optimal performance and simplifies the selection process for builders.

Key Advantages

• High-Performance Motor: The X2820 III-KV860 motor delivers robust thrust and consistent reliability.
• Efficient Power Management: The included 60A ESC ensures smooth and efficient power delivery to the motor.
• Optimized Aerodynamics: Two EOLO 13x7 propellers are included to maximize lift and flight stability.
• Versatile Voltage Support: Rated for 3-4S LiPo batteries for the motor and 2-6S for the ESC, offering flexibility.
• Durable Construction: High-quality components ensure longevity and performance under demanding conditions.

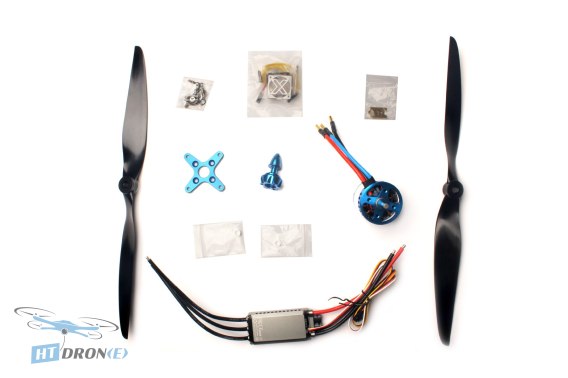

• Ready-to-Install Kit: Comes complete with motor, ESC, and propellers for a hassle-free setup.
• Excellent Value: A pre-selected combo offering great performance for its price.

Technical Specifications

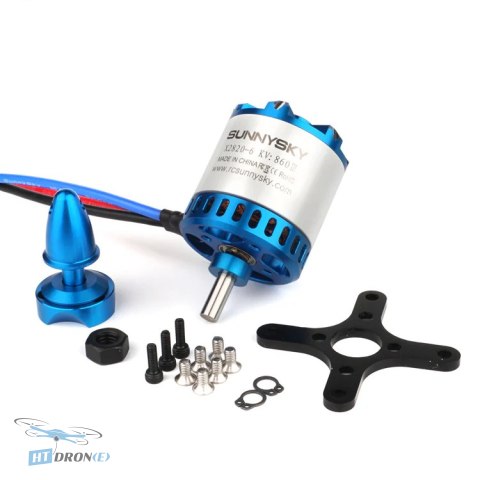

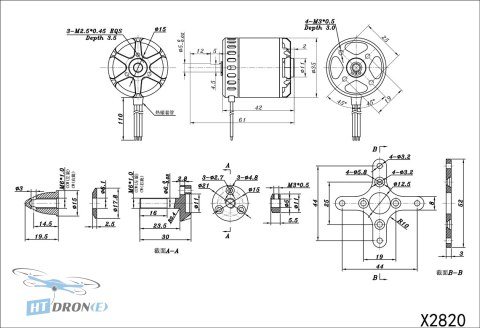

• Motor:
• Model / KV: X2820-III / KV860
• Stator / Motor Poles: 12N14P
• Internal Resistance: 25.8 mΩ
• Motor Size: Length 42 mm
• Shaft Diameter: 5.0 mm
• AWG: 20AWG 110 mm
• Motor Weight (with cable): 143 g
• Rating Operational Voltage: 3-4S
• No-load Current: 1.3A/10V
• Maximum Continuous Power: 960W
• Maximum Continuous Current: 65A/30s
• Recommended ESC: 50-60A
• Recommended Propeller Size: EOLO 12x6, EOLO 13x7, APC 13x6.5, APC 12x6, APC 12x8

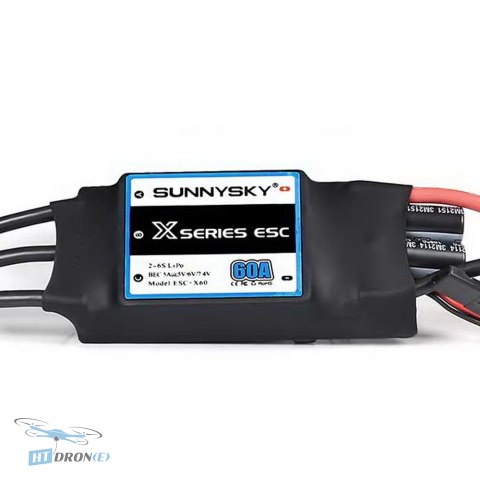

• ESC:
• Continuous Current: 60A
• Burst Current: 80A (≤ 10s)
• Input Voltage: 2-6S LiPo
• BEC Output: 5V/6V/7.4V @ 5A
• Motor Connector: 3.5mm Banana Plug
• Battery Connector: XT60
• Dimensions: 82x36x18mm (without wires)
• Weight: 94g

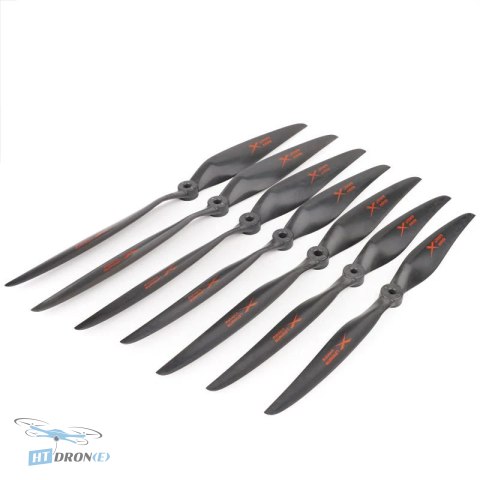

• Propellers:
• Brand Name: EOLO/13*7
• Propeller Type: Integrated Propeller
• Product Material: Plastic Propeller
• Storage Temperature: -10℃ - 50℃
• Storage Humidity: <85%</li>
• Propeller Specification: 13x7 CW
• Dynamic Balance Value: 4000rpm ≤15mg
• Single Weight: 26g
• MAX Operating Speed: 11370rpm
• Operating Temperature: -20℃~60℃

Applications

This combo is ideally suited for a wide range of RC aircraft, including sport planes, scale models, and FPV wings that require a balance of power and efficiency. It's perfect for applications demanding reliable thrust for takeoff and sustained flight, such as general aviation models, trainers, and high-performance park flyers.

Compatibility

The motor is designed to work with 3-4S LiPo batteries, while the ESC supports 2-6S LiPo batteries, offering significant flexibility in power source selection. The ESC features a 3.5mm banana plug for motor connection and an XT60 connector for the battery. Various propeller sizes are recommended, including EOLO 13x7, APC 13x6.5, and others, allowing for tuning to specific flight characteristics.

FAQ

What type of RC aircraft is the SunnySky X2-series Combo 3 best suited for?

The SunnySky X2-series Combo 3 is ideal for sport planes, scale models, and FPV wings that require a good balance of power and efficiency. Its robust thrust makes it suitable for trainers, park flyers, and general aviation RC models.

What are the key technical specifications of the SunnySky X2820 III-KV860 motor?

The X2820 III-KV860 motor features a 12N14P stator configuration, 5.0mm shaft diameter, and weighs 143g. It offers a maximum continuous power of 960W and a maximum continuous current of 65A, operating best with 3-4S LiPo batteries.

What is the recommended ESC for the SunnySky X2820 III-KV860 motor?

The combo includes a 60A ESC, which is the recommended size for the X2820 III-KV860 motor. This ESC can handle up to 80A burst current and supports 2-6S LiPo input, providing reliable power management.

What propeller sizes are recommended with the SunnySky X2-series Combo 3?

The combo includes two EOLO 13x7 propellers. Other recommended sizes include EOLO 12x6, APC 13x6.5, APC 12x6, and APC 12x8, allowing you to tune performance based on your aircraft's needs.
