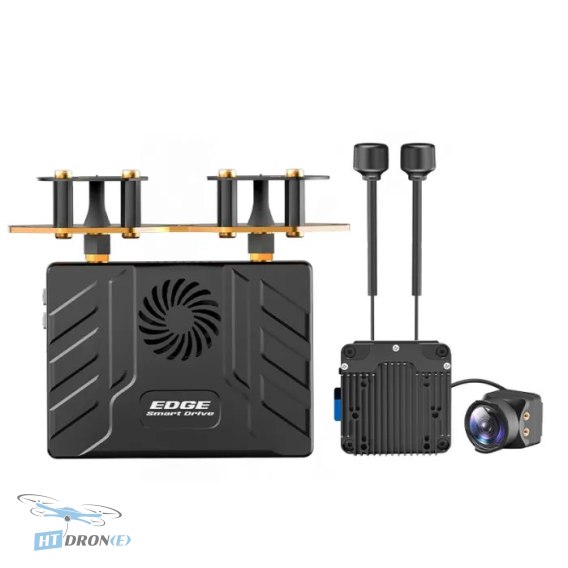

EDGE T3 Combo HD FPV Air Unit + VRX Ground Unit System for Drones

Introduction

The EDGE T3 HD System is a cutting-edge digital video transmission solution designed for a wide range of unmanned systems, including FPV drones, UAVs, and unmanned ground/water vehicles. It provides seamless, real-time HD video and data transfer, significantly enhancing operational capabilities for aerial photography, surveillance, remote control tasks, and FPV racing. Experience superior image quality and long-range stability with this essential upgrade for your drone setup.

Key Advantages

• AI Image Processing: Enhances colors, dynamic range, and image detail for superior clarity.
• Extended Transmission Range: Reach up to 35 km with a stable, reliable signal.
• Low Latency Transmission: Enjoy approximately 60 ms latency for responsive control and immersive FPV experience.
• High Video Throughput: Supports up to 120 Mb/s for maximum video quality.
• Night Vision Support: AI algorithms improve image quality in low-light conditions.
• 3-in-1 Data Transmission: Integrates video, telemetry, and control signals into a single channel.
• Flexible OSD Settings: Customize the on-screen display to show critical flight data.
• Mobile Compatibility: Built-in Wi-Fi allows for direct video viewing on smartphones and laptops.

Technical Specifications

• VTX Module (Air Unit)
• Model: T3 VTX
• Product Name: T3 Digital HD Image Transmission (Air Unit)
• Communication Frequency: 5.18-5.24 GHz, 5.745-5.825 GHz
• Transmission Power (EIRP): FCC≤30 dBm, CE<14dBm; SRRC<20dBm
• Interface: SH1.0-4P, SH1.0-6P, SH1.0-8P
• Mounting Hole Spacing: 2×25.5 / 4×20 mm
• Dimensions: 36×36×11.8 mm
• External Storage: Supports microSD cards (16-256 GB)
• Recording Specification: 1080p at 60fps
• Weight: 25 g (with heatsink)
• Operating Temperature: 0°C to +50°C
• Available Frequency Points: 9
• Input Voltage Range: 6-28 V DC
• Supported Flight Control Systems: ArduPilot, Betaflight, iNav
• Camera Module
• Model: T3 Camera Module
• Image Sensor: 1/2.8 inch, 2 MP, 16:9
• Resolution: 1080P/60fps
• Aspect Ratio: 16:9
• Lens (Standard): 2.9 mm HD120
• Aperture: F1.4
• Field of View: 120°
• Lens (Optional): 2.2 mm HD155
• Aperture: F1.9
• Field of View: 155°
• Shutter Type: Rolling shutter
• Weight: 13 g
• Dimensions: 20 × 20 × 30 mm / 20 × 20 × 25 mm
• Coaxial Cable Length: 130 mm
• Antenna (Air Unit)
• Name: Omnidirectional Antenna
• Polarization Direction: Left-Hand Circular Polarization (LHCP)
• Working Band: 5500-6000 MHz
• Input Impedance: 50 Ω
• VSWR: ≤1.5
• Interface Type: IPEX-1
• Dimensions: 15 × 122 mm
• Weight: 2.5 g (single)
• VRX Module (Ground Unit)
• Model: T3 VRX
• Product Name: T3 Digital HD Image Transmission (VRX)
• Communication Frequency: 5.18-5.24 GHz, 5.745-5.825 GHz
• Transmitting Power (EIRP): FCC≤30 dBm, CE<14dBm; SRRC<20dBm
• Available Frequency Points: 9
• Interface: SH1.0-4P, SH1.0-6P
• Type C: 1080P/60FPS Video Output
• Fixed Hole Spacing: 15 mm (M2×2)
• Dimensions: 82×26×68 mm
• Built-in Battery: 5000 mAh, 3.7 V Lion
• Weight: 142 g (without antenna)
• Operating Temperature: 0°C to +50°C
• Max Charging Power: 20 W
• Max Discharging Power: 20 W
• Antenna (Ground Unit)
• Name: Directional Antenna
• Polarization Direction: Left-Hand Circular Polarization (LHCP)
• Working Band: 5000-6000 MHz
• Input Impedance: 50 Ω
• Standing Wave Ratio: ≤1.5
• Interface Type: RPSMA
• Dimensions: 102×53×27 mm
• Weight: 30.5 g
• Package Includes
• 1x EDGE T3 Combo HD System VTX Air Unit + VRX Ground Unit

Applications

This advanced HD video transmission system is ideal for a variety of applications including high-performance FPV racing, professional aerial photography and videography, long-range drone surveillance, inspection missions, and integrated control for unmanned ground and water vehicles. Its robust features ensure reliable performance in demanding scenarios.

Compatibility

The EDGE T3 system supports major flight control systems like ArduPilot, Betaflight, and iNav. It features multiple interfaces (SH1.0-4P, SH1.0-6P, SH1.0-8P for VTX; SH1.0-4P, SH1.0-6P for VRX) and standard mounting hole spacings (2×25.5 / 4×20 mm for VTX; 15 mm M2×2 for VRX), ensuring broad compatibility with most drone frames and flight controllers. It requires an input voltage range of 6-28 V DC.

FAQ

What is the maximum transmission range of the EDGE T3 HD System?

The EDGE T3 HD System boasts an impressive transmission range of up to 35 km. This allows for stable, real-time HD video feedback even during long-range FPV flights or extensive UAV operations. Check the product details for optimal performance conditions.

What is the video latency for the EDGE T3 FPV Air Unit?

The EDGE T3 system offers low-latency transmission, with an approximate delay of around 60 ms. This ensures a responsive and immersive FPV experience, crucial for precise control during high-speed flying or complex maneuvers.

Can I view the video feed from the EDGE T3 system on my smartphone?

Yes, the EDGE T3 system features built-in Wi-Fi, enabling you to view the video feed directly on your smartphone or laptop without the need for additional cables. This offers great flexibility for monitoring and setup.

What flight control systems are compatible with the EDGE T3 HD VTX Air Unit?

The EDGE T3 VTX Air Unit is compatible with popular flight control systems including ArduPilot, Betaflight, and iNav. This broad compatibility ensures seamless integration with a wide range of drone setups.

Where can I buy the EDGE T3 HD System and what are the delivery options?

You can buy the EDGE T3 HD System directly from HTDRONE. We offer fast shipping within Poland and reliable worldwide delivery via DHL for international customers. Check our store for the best deals and order yours today!
