T-Motor AT7224 KV160 Brushless Motor for Large Fixed-Wing Aircraft and Multicopters

Introduction

The T-Motor AT7224 KV160 motor is engineered for superior performance in larger fixed-wing aircraft and multicopter applications. This 40CC class motor offers substantial power and thrust, making it an excellent choice for pilots requiring reliability and high output for their UAVs and RC planes. Its advanced design ensures efficient operation even during extended flight times.

Key advantages

• High Power Output: Delivers up to 4800W maximum power for demanding flights.
• Significant Thrust: Generates up to 17.72 kg of thrust, suitable for larger airframes.

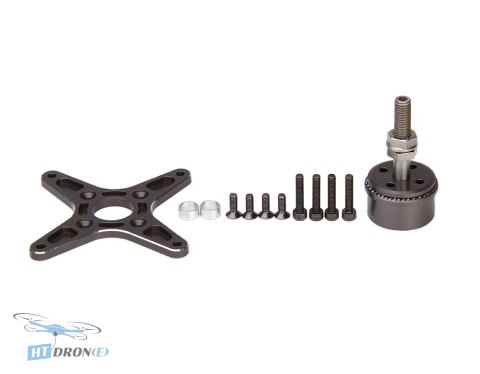

• Versatile Mounting: Features a removable propeller adapter compatible with both fixed-wing and multicopter configurations.
• Efficient Heat Dissipation: Ensures reliable operation and longevity during long flights.
• Robust Construction: Built with high-quality materials for durability in various conditions.
• Optimized for Stability: Designed for smooth and stable flight characteristics.
• High Torque: Provides excellent responsiveness and control.
• Long Shaft Design: Offers flexibility in propeller and mounting options.

Technical specifications

• Model: T-Motor AT7224 Long Shaft KV160
• Type: 40CC Class Brushless Motor
• KV Rating: 160 RPM/V
• Weight (with cable): 780g

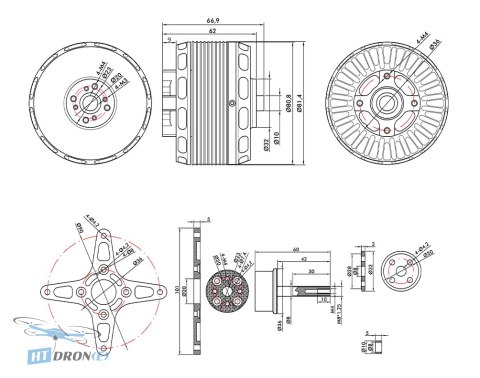

• Motor Dimensions: Φ81.4*66.9mm
• Internal Resistance: 24mΩ
• Wire: 100mm Enameled Wire
• Configuration: 24N22P
• Shaft Diameter: 10mm
• Rated Voltage (LiPo): 10-12S
• Idle Current (10V): 3.1A
• Peak Current (180s): 105A
• Max. Power (180s): 4800W / 12S
• Max. Thrust: 17.72 kg

Applications

This T-Motor AT7224 KV160 motor is perfectly suited for large-scale fixed-wing aircraft, advanced UAV platforms, aerial photography drones, and demanding RC airplane projects. Its power and thrust capabilities make it ideal for applications requiring significant lift and endurance.

Compatibility

Compatible with 10-12S LiPo batteries. Features a removable propeller adapter suitable for various mounting needs in both fixed-wing and multicopter setups. The 10mm shaft diameter offers broad compatibility with a range of propellers.

FAQ

What type of aircraft is the T-Motor AT7224 KV160 motor best suited for?

The T-Motor AT7224 KV160 motor is specifically designed for larger fixed-wing aircraft and multicopter applications. Its high power output and thrust make it ideal for demanding UAV platforms and RC airplanes requiring robust performance.

What is the maximum power and thrust of the T-Motor AT7224 KV160 motor?

This T-Motor motor offers a maximum power output of 4800W (at 12S) and can generate up to 17.72 kg of thrust. This makes it capable of handling significant loads and achieving powerful flight characteristics.

What battery voltage is recommended for the T-Motor AT7224 KV160?

The T-Motor AT7224 KV160 motor is rated for 10-12S LiPo batteries. Using batteries within this range will ensure optimal performance and efficiency for your aircraft.

Does the T-Motor AT7224 KV160 motor have a removable propeller adapter?

Yes, the T-Motor AT7224 KV160 features a removable propeller adapter. This design offers versatility, allowing for flexible mounting options suitable for both fixed-wing and multicopter configurations.

Where can I buy the T-Motor AT7224 KV160 motor with reliable delivery?

You can buy the T-Motor AT7224 KV160 motor at HTDRONE, an online store based in Poland. We offer fast international delivery via DHL, ensuring your parts arrive quickly for your projects.
