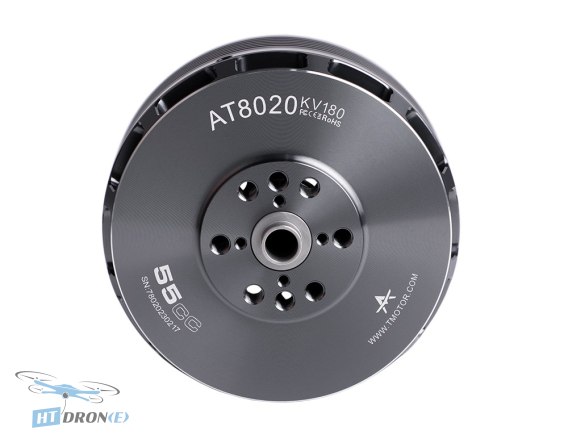

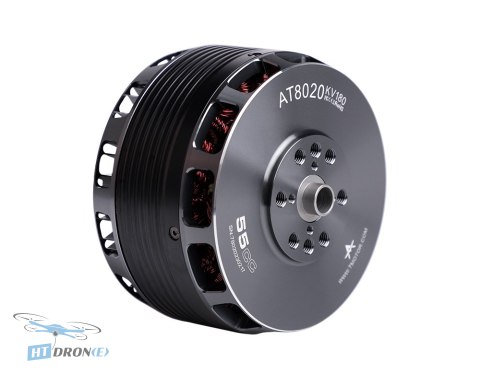

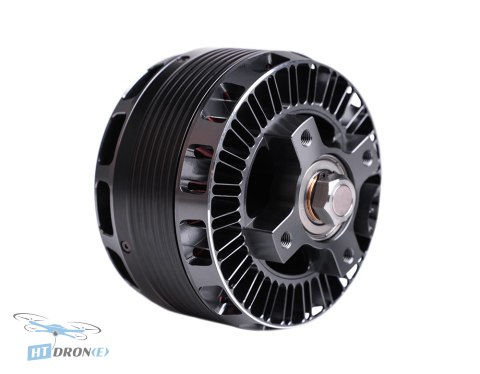

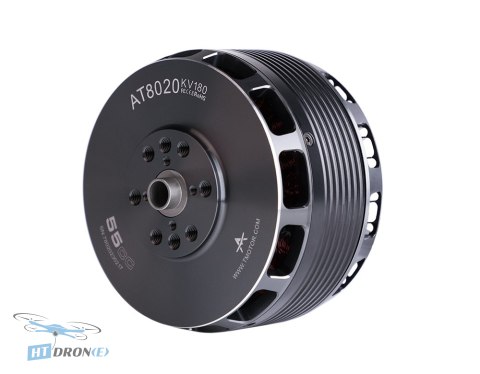

T-Motor AT8020 180KV Brushless Motor for Fixed-Wing UAV and Drones

Introduction

The T-Motor AT8020 180KV is a high-performance brushless motor specifically designed for fixed-wing aircraft. It delivers substantial thrust and outstanding efficiency, making it the perfect choice for challenging aerial applications and professional drone operations. If you're looking for a reliable power source for your fixed-wing UAV, this motor offers the performance you need.

Key advantages

• Exceptional thrust for powerful aerial performance.
• High efficiency for extended flight times and optimal power usage.
• Durable construction for demanding operational environments.
• Engineered for fixed-wing aircraft applications.
• T-Motor's renowned quality and reliability.
• Optimized for high voltage LiPo systems (10-14S).
• Delivers up to 5600W of max power.

Technical specifications

• Brand: T-Motor
• Model: AT8020
• KV: 180
• Weight (including cable): 865g

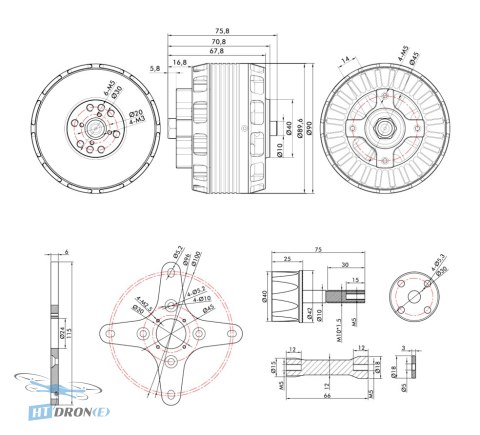

• Motor Dimensions: Φ90 × 70.8mm
• Internal Resistance: 16mΩ
• Wire: Wound Wire Outlet, 100mm
• Stator: 24N28P
• Shaft Diameter: IN: 12mm / OUT: 10mm
• Rated Voltage (LiPo): 10-14S
• Idle Current (10V): 4.6A
• Peak Current (180s): 120A
• Max Power (180s): 5600W @ 14S

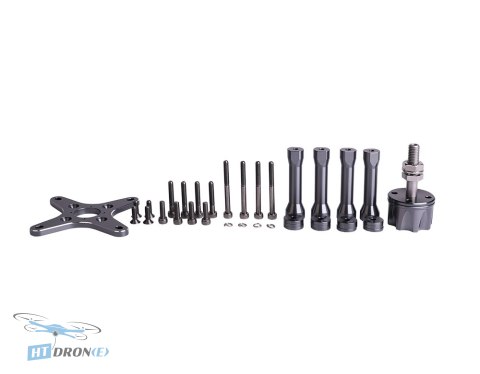

• Package Includes: 1x motor, 1x parts set

Applications

This T-Motor AT8020 180KV motor is ideal for various fixed-wing UAV platforms, professional aerial photography drones, long-endurance surveillance aircraft, and other demanding unmanned aerial vehicle projects requiring significant power and reliability.

Compatibility

Designed for 10-14S LiPo batteries, this motor offers broad compatibility with high-voltage power systems commonly used in larger fixed-wing UAVs. The substantial shaft diameter (12mm input, 10mm output) allows for secure mounting of large propellers.

FAQ

What is the T-Motor AT8020 180KV motor best suited for?

The T-Motor AT8020 180KV motor is best suited for fixed-wing aircraft and demanding UAV applications that require high thrust and exceptional efficiency. Its specifications make it ideal for professional drone operations and aerial projects.

What is the maximum power output of the T-Motor AT8020 180KV?

The T-Motor AT8020 180KV motor can deliver a maximum power of 5600W at 14S LiPo voltage, making it a powerful option for demanding flight profiles.

What voltage range does the T-Motor AT8020 180KV support?

This T-Motor motor supports a rated voltage range of 10-14S LiPo batteries, providing flexibility for high-power applications.

Where can I buy the T-Motor AT8020 180KV motor with fast delivery?

You can buy the T-Motor AT8020 180KV motor at HTDRONE. We offer fast and reliable delivery within Poland and worldwide via DHL for international orders.

What are the key technical specifications of the T-Motor AT8020?

Key specifications include 180KV, 865g weight, Φ90 × 70.8mm dimensions, 16mΩ internal resistance, 24N28P stator, and support for 10-14S LiPo batteries.
